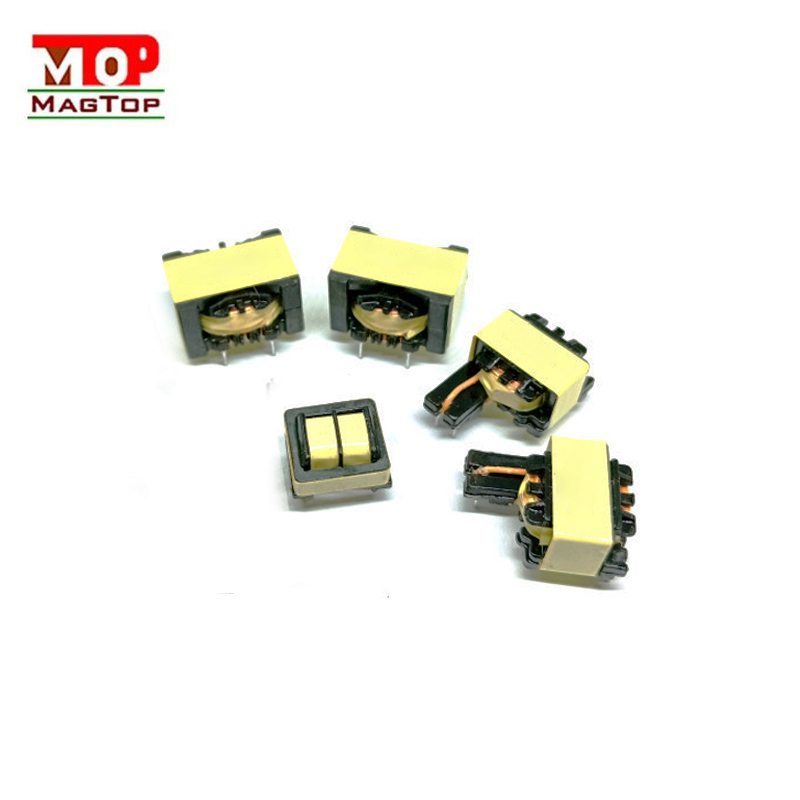

High-Frequency Step-Up Transformers and Their Role

High-frequency step-up transformers play a crucial role in applications where low input voltage needs to be converted to a higher output voltage. This type of transformer is commonly found in power supplies, where high voltage and low current are essential, such as in X-ray equipment or RF amplifiers. At the same frequency, it can transmit electrical energy by changing the AC voltage and current of one circuit to a higher AC voltage in another, all through the process of electromagnetic induction.
 High-frequency step-up transformers require a core for the magnetic circuit and two windings with different turn ratios to achieve the desired voltage transformation. The insulation system is also critical to manage potential differences between the winding and ground, ensuring safety and performance. Overall, these transformers provide efficient energy transfer at high frequencies, making them indispensable in modern electronics.
