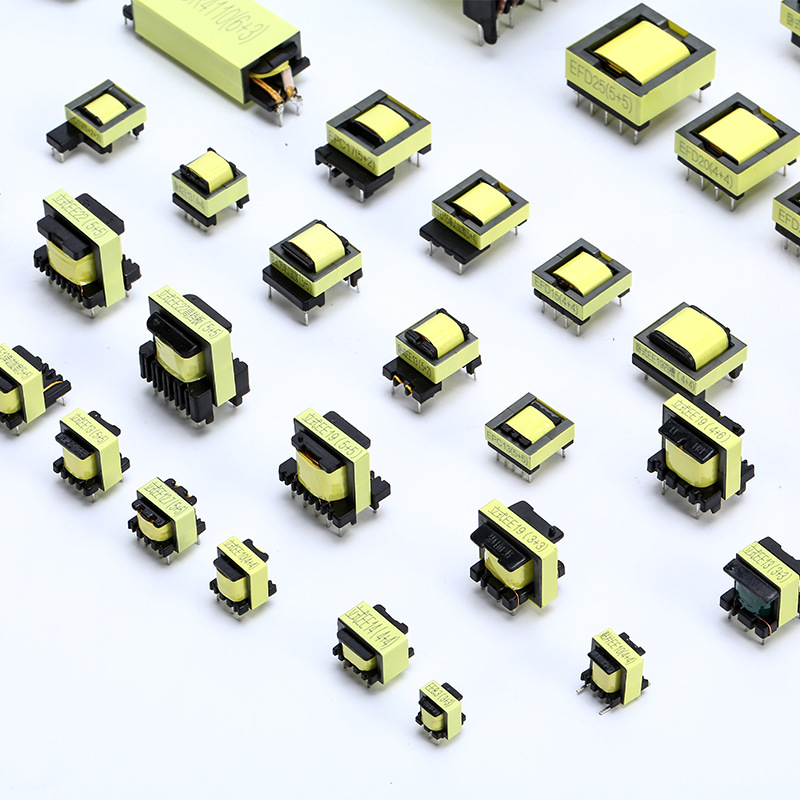

Key Considerations for High-Frequency Transformer Sizing and Efficiency

The proper sizing of high-frequency transformers is crucial for the efficiency and stability of switching power supplies. Engineers are increasingly focused on balancing transformer size with energy efficiency, as the transformer’s winding turns and core material directly impact the output voltage and overall power loss.

In high-power applications, such as industrial equipment or electric vehicles, the transformers must be designed with larger cores to handle higher power levels without overheating or losing efficiency. On the other hand, for low-power systems, smaller transformers with optimized core material and winding arrangements are sufficient to meet energy requirements. With the growing focus on energy-saving technologies, transformer manufacturers are exploring ways to increase power density while reducing the overall size, ensuring that power supplies can deliver maximum efficiency in a more compact form.
