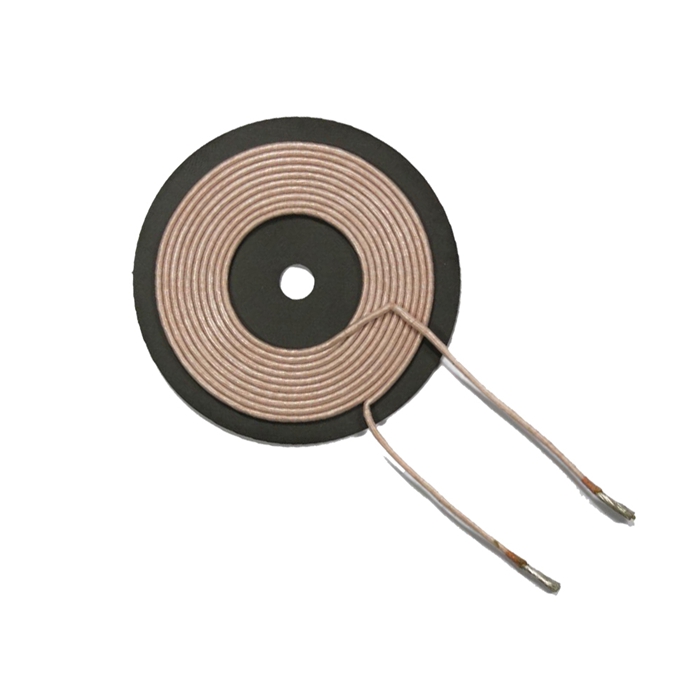

10.0uH Wireless charging coils Assembly

Model NO.: NAC3733-100K

FEATURES:
• Qi standard compliance
• Size, shape, characteristics customized
• Low profile
• High mechanical intensity
• Performance had been confirmed based on WPC equipments.
• Operating Temperature: -40 ℃ to +105 ℃
APPLICATIONS:
• Using for transmitter and receiver module of portable electronic device such as
mobile phones, tablet PC and DSCs, etc.

Quantity:

Product Description

10.0uH Wireless charging coils Assembly

FEATURES:

• Qi standard compliance
• Size, shape, characteristics customized
• Low profile
• High mechanical intensity
• Performance had been confirmed based on WPC equipments.
• Operating Temperature: -40 ℃ to +105 ℃

assembly coils, wireless charging, batteries coils charging, iphone assembly charging,iphone 3gs charging assembly.

APPLICATIONS:

• Using for transmitter and receiver module of portable electronic device such as
mobile phones, tablet PC and DSCs, etc.

SPECIFICATIONS:

Structure size	Inductance	Test Freq.	DC R	I rms	I sat
mm	uH		mΩ	A	A
37.0 x 33.0 x 1.3	10.0 +/-10%	100kHz 1.0V	220.0 Max	1.8 Max	4.0 Max

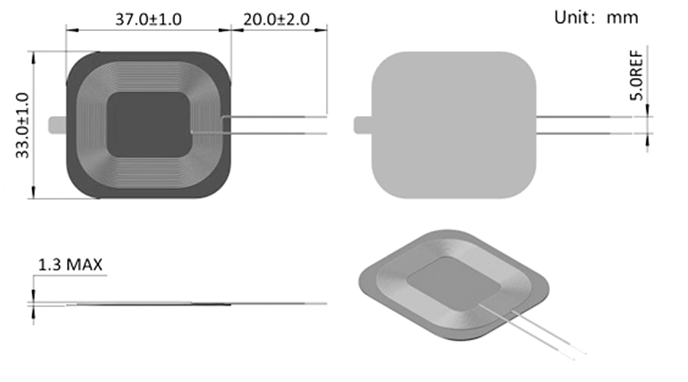

SHAPE AND DIMENSIONS:

Please coneact us for more about assembly coils, wireless charging, batteries coils charging, iphone assembly charging,iphone 3gs charging assembly. etc

* If you have more needs, please send us an inquiry, thank you!
