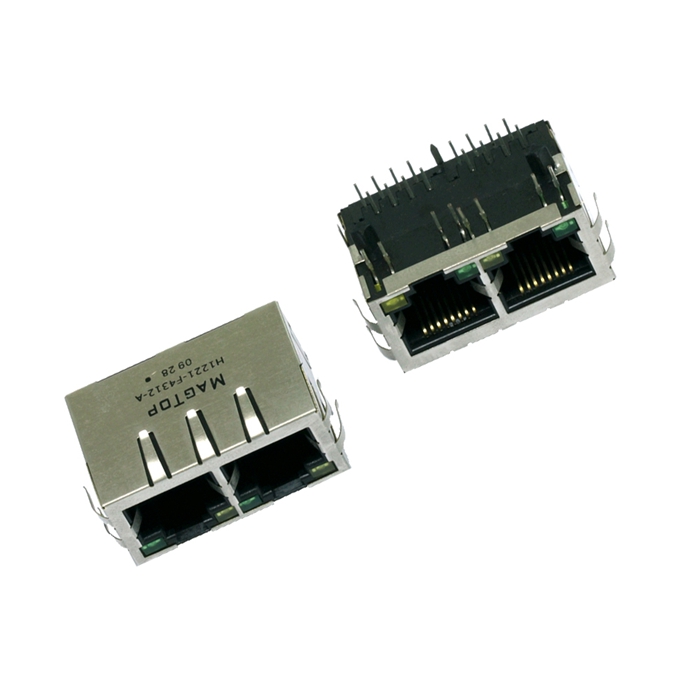

10/100Base-TX Multi Port (1X2) Tab-Down LED RJ45 Connectors

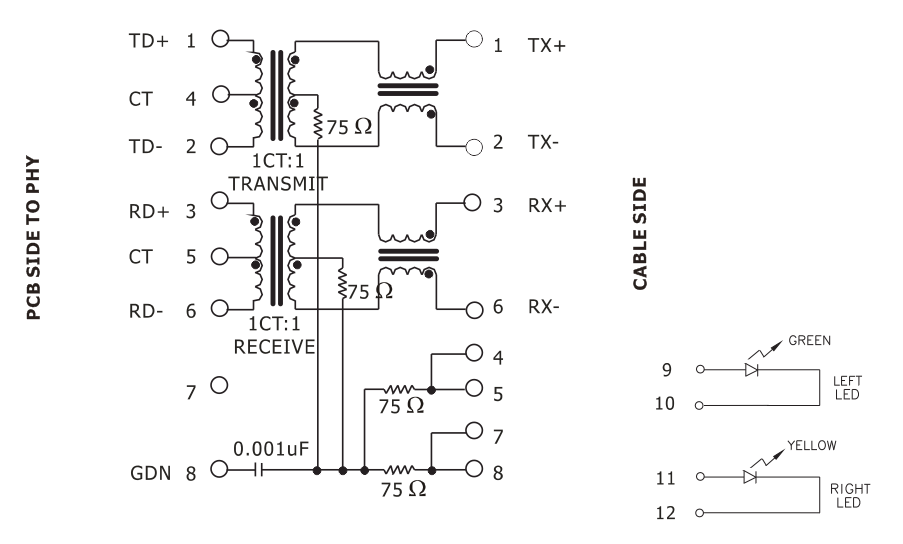

10/100Base-TX RJ45 Multi port (1x2) Tab-Down with LEDs Integrated magnetics connector (ICM),
designed to support applications, Such as SOHO (ADSL MODEMS), LAN-on Motherboard (LOM), Hub and Switches.
Features and Benefits:
* Multi port (1X2) Tab-DOWN RJ45 with internal magnetics.
* RoHS-6 peak wave solder temperature rating 260 ℃.
* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
* Internal magnetics are 100% electrically tested for HI-POT and functionality.
Electrical Performance Summary:
* Meets or exceeds IEEE 802.3 standard for 100Base-T.
* 350 uH minimum OCL with 8 mA bias current.
* High performance for maximum EMI suppression.
* Minimum 1500 Vrms isolation per IEEE 802.3 requirement.
* Operating temperature range: 0 ℃ to +70 ℃.
* Storage temperature range: -40 ℃ to +85 ℃.
