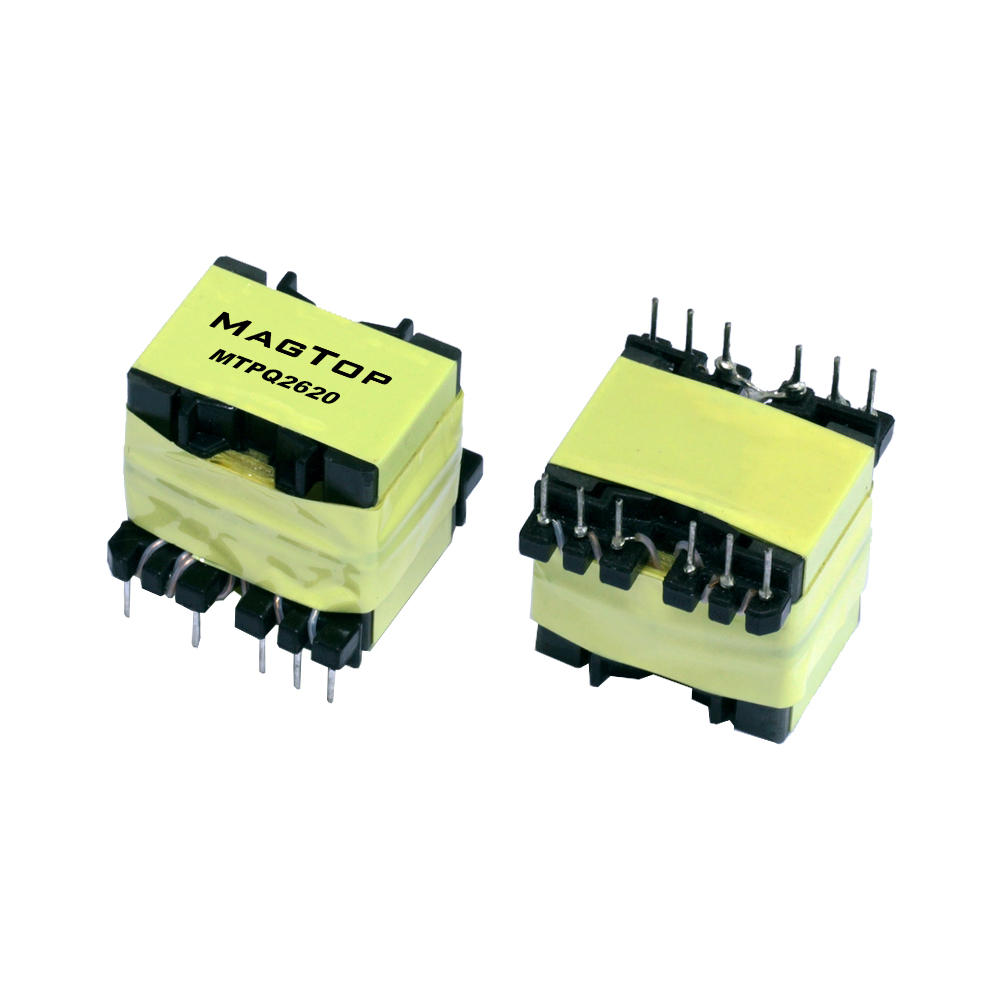

PQ2625 High Frequency Switching power supply Transformers

Model NO.
MTPQ2620-163K
FEATURES:
•  High reliability.
•  Good exchange efficiency.
•  Low temperature rise.
•  Compact structure, high power.
•  High insulation strength.
APPLICATIONS:
•  DC-DC converters, drive transformers, notebook power supply, inverter power supply, UPS power supply, communication power supply, etc.
SPECIFICATIONS:
1. Working frequency: 20kHz-500KHz
2. Output power: 80 W to 200 W
3. Operating temperature: -40 ℃ to +125 ℃
4. Storage temperature: -25 ℃ to +85 ℃
Quantity:
PQ2625 High Frequency Switching power supply Transformers

FEATURES:


•  High reliability.
•  Good exchange efficiency.
•  Low temperature rise.
•  Compact structure, high power.
•  High insulation strength.

high frequency switching transformers, high frequency switching power supply ,switching power supply frequency,high power switching power supply,power supply high frequency
APPLICATIONS:

•  DC-DC converters, drive transformers, notebook power supply, inverter power supply, UPS power supply, communication power supply, etc.

SPECIFICATIONS:

1. Working frequency: 20kHz-500KHz
2. Output power: 80 W to 200 W
3. Operating temperature: -40 ℃ to +125 ℃
4. Storage temperature: -25 ℃ to +85 ℃

 1. Inductance (3`1) :   16 mH ± 10%  @ 1.0 KHz, 1.0 Vrms
 2. Turns Ratio :    3~1 : 5~4 : 7,8,9~10,11,12 = 63 : 3: 3
 3. Insulation Strength :  3000VAC 1.0min 5mA@ N1/N2 to N3

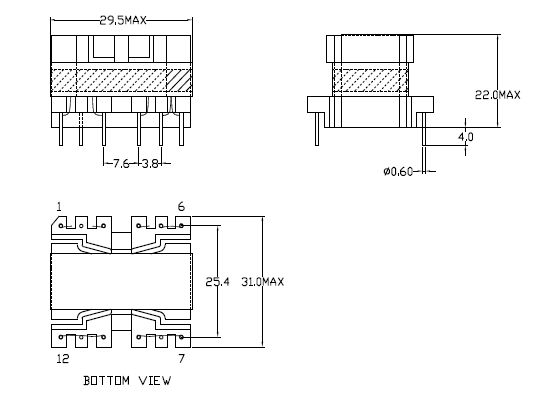

SHAPE AND DIMENSIONS:

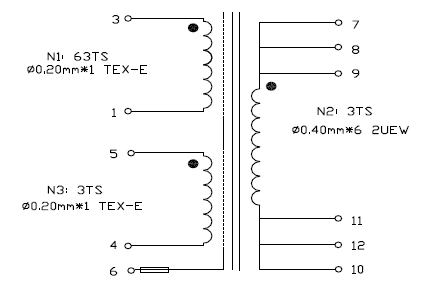

SCHEMATIC:





              Please coneact us for more about high frequency switching transformers, high frequency switching power supply
              ,switching power supply frequency,high power switching power supply,power supply high frequency.etc
*  If you have more needs, please send us an inquiry, thank you!
