The Role of Copper Wire Annealing in High-Frequency Transformer Blackening

Copper wire annealing is a critical process in the production of high-frequency transformers, including high-frequency pulse transformers. Annealing involves heating the copper wire to a specific high temperature, maintaining it for a certain period, and then cooling it at a controlled rate. This process is essential for reducing hardness, improving machinability, and eliminating residual stress. However, improper annealing can lead to issues such as the blackening of the copper wire.

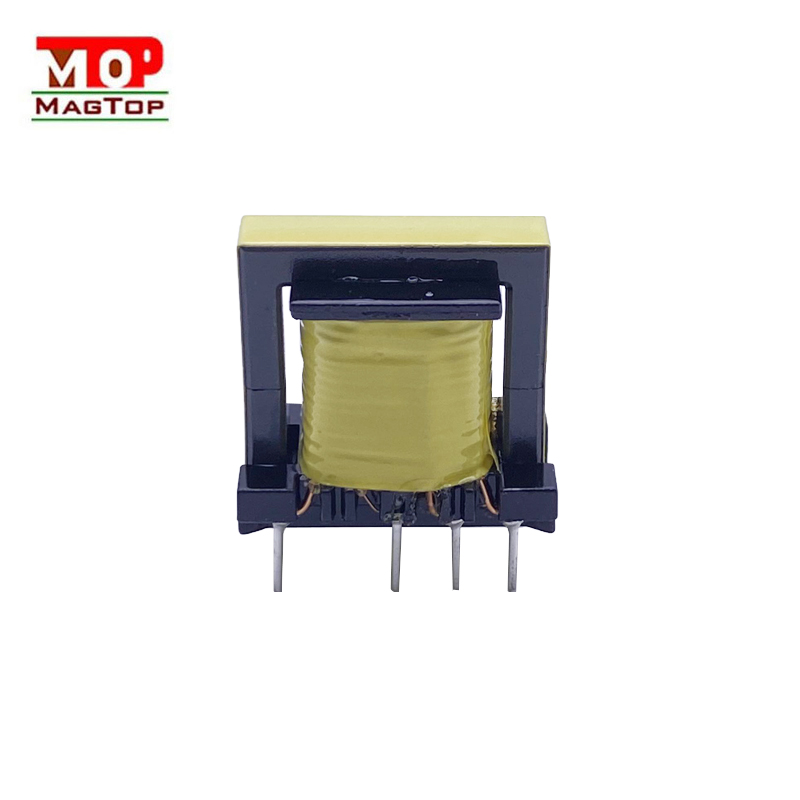

If the annealing process is not carefully controlled, particularly in terms of temperature and vacuum conditions, it can result in insufficient annealing. For instance, if the temperature exceeds 50°C during production, or if the vacuum time is inadequate and the protective gas is impure, the copper wire may not anneal properly. Over time, this improper annealing can cause the copper wire to oxidize, leading to blackening. Therefore, precise control of the annealing process is crucial to prevent these issues and ensure the quality and longevity of high-frequency step-up transformers.
