Common Mode Choke Transformer: Key to EMI Suppression

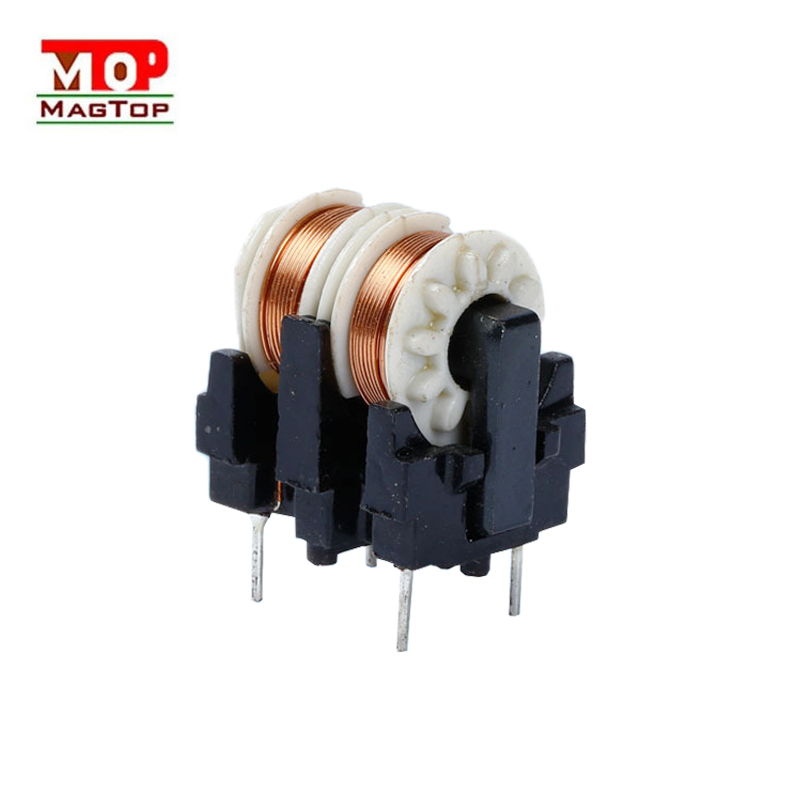

The common mode choke transformer is an essential component in electronic circuits designed to combat electromagnetic interference (EMI). Built using amorphous nanocrystalline magnetic materials, these chokes provide numerous advantages, such as compact size, improved energy efficiency, and better suppression of unwanted signals. In switching power supplies and other sensitive electronic equipment, they serve as critical elements to ensure stable and interference-free operation.

In terms of functionality, when common-mode signals, such as EMI or electromagnetic radiation, attempt to pass through the choke, the coil creates high impedance, which works as a barrier against such interference. At the same time, differential mode signals that are essential for regular operation can pass without obstruction. This selective filtering between common mode vs differential mode signals ensures that only the disruptive frequencies are blocked, while normal signals flow smoothly. As a result, the transformer offers exceptional suppression of EMI and contributes to the development of cleaner, more reliable electronic devices.
