Understanding Amorphous Common Mode Chokes in Power Supplies

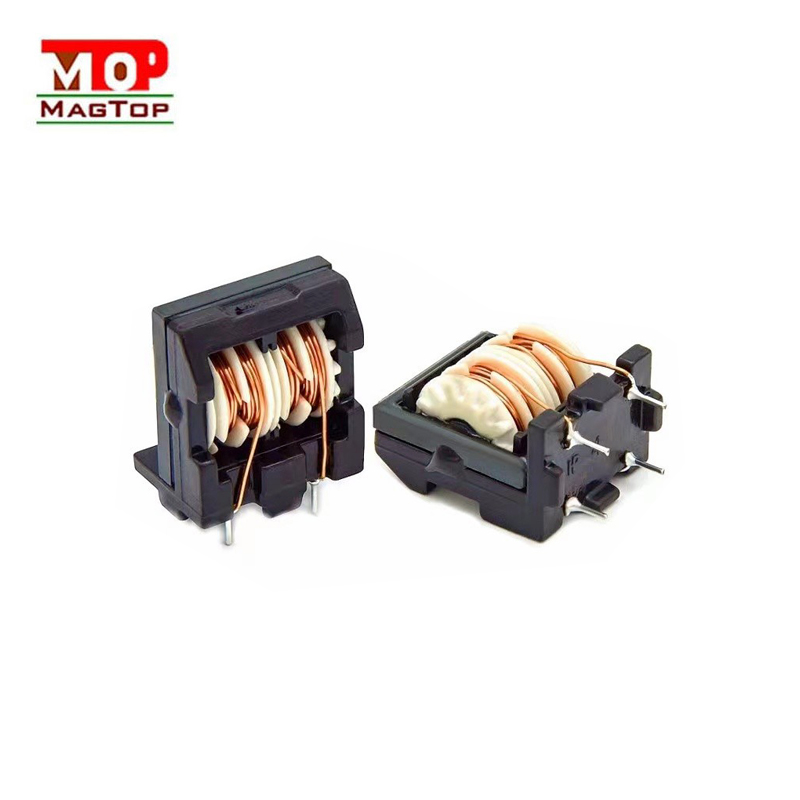

Amorphous common mode chokes are increasingly used in various modern power systems due to their unique ability to handle electromagnetic interference (EMI). These inductors are wound using magnetic rings made from advanced amorphous nanocrystalline materials, offering substantial improvements in size, efficiency, and performance over traditional core materials. They are indispensable components in switching power supplies, UPS power systems, and various EMI EMC filters.

The working principle of amorphous common mode chokes is based on their ability to cancel out magnetic fields generated by opposite currents flowing through two windings. When normal operating current passes through these windings, the magnetic fields neutralize each other, preventing any magnetic saturation. However, when an external electromagnetic interference or radiation signal attempts to flow through the circuit, the high impedance of the choke dampens the disturbance. This helps in attenuating EMI effectively, promoting cleaner and more efficient power delivery. The unique properties of amorphous materials allow these chokes to work across a wide frequency range, making them an ideal choice for high-performance power applications.
