Common Mode Inductors: A Key Solution to EMI in High-Speed Electronics

In the era of high-speed electronics, electromagnetic interference (EMI) has become a major design challenge. Computer motherboards, with their dense integration of circuits, are particularly prone to generating both differential and common mode interference.
Among these, common mode interference is more difficult to control, as it can easily spread through cables and radiate into the environment. Interfaces such as USB and IEEE 1394 are especially susceptible, making EMI suppression a priority in system design.

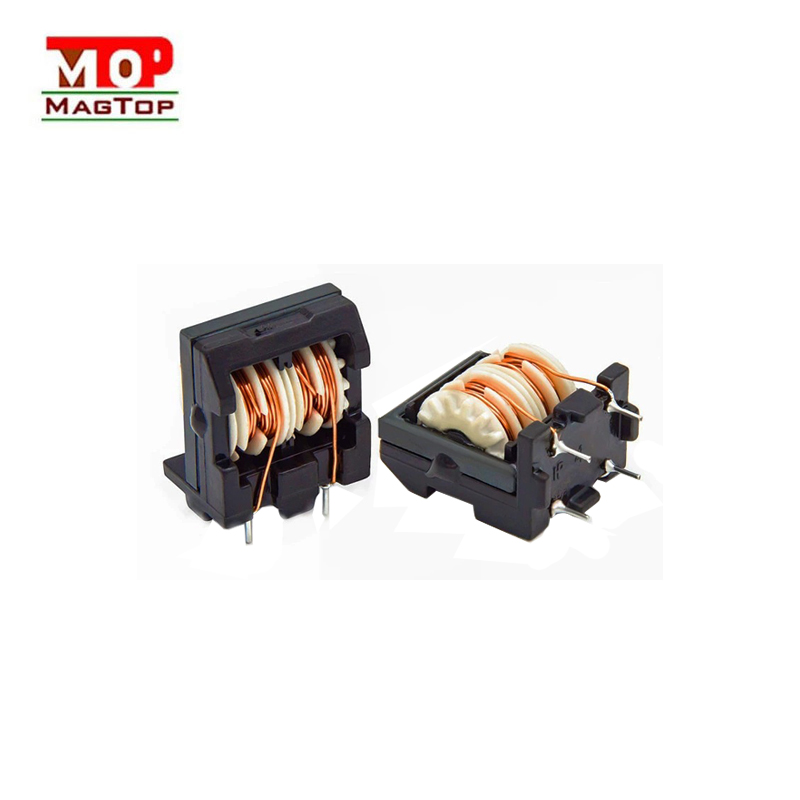

One of the most effective solutions is the use of common mode inductors. These components function as bidirectional filters, suppressing unwanted noise on signal lines while preventing internally generated interference from affecting other devices.
By incorporating such components into filter circuits, engineers can significantly improve electromagnetic compatibility and ensure stable performance in increasingly complex electronic systems.
