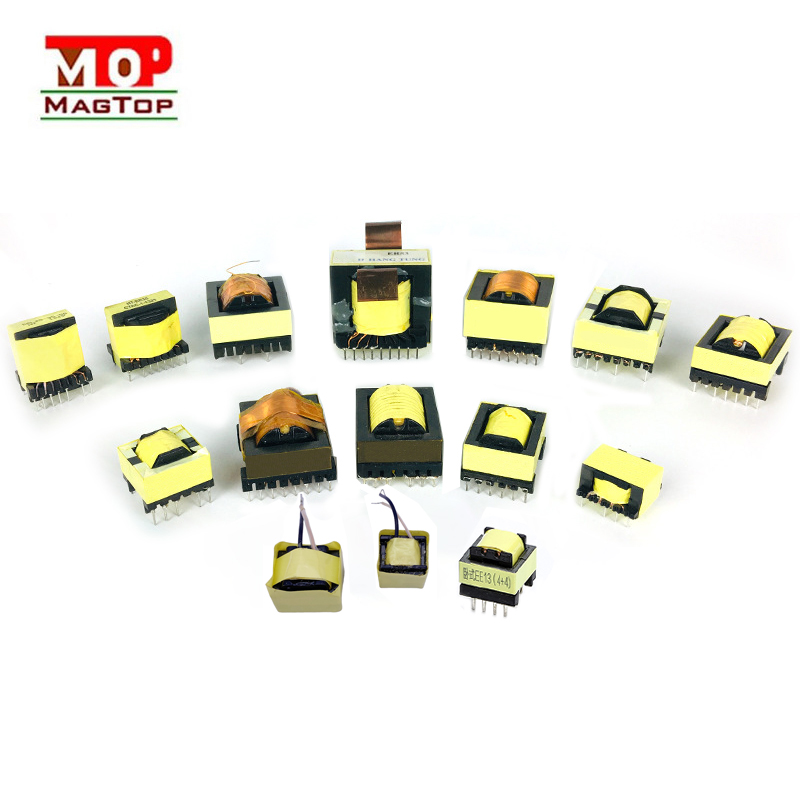

Components and Function of High-Frequency Transformers

A high-frequency transformer is a static device designed to modify the AC voltage and current between circuits without altering the frequency. This transformer relies on electromagnetic induction to transfer power across circuits, utilizing a core, windings, and an insulation system. The core serves as the magnetic circuit, while the primary and secondary windings—differing in turn ratios—allow for voltage transformation, either stepping up or stepping down the input voltage. The insulation system, crucial due to the potential differences between windings and ground, ensures safe and efficient operation.
High-frequency transformers are widely used in electronic devices requiring stable voltage supply at high frequencies, such as in power supplies and audio systems, where they facilitate smooth and reliable power transfer.
