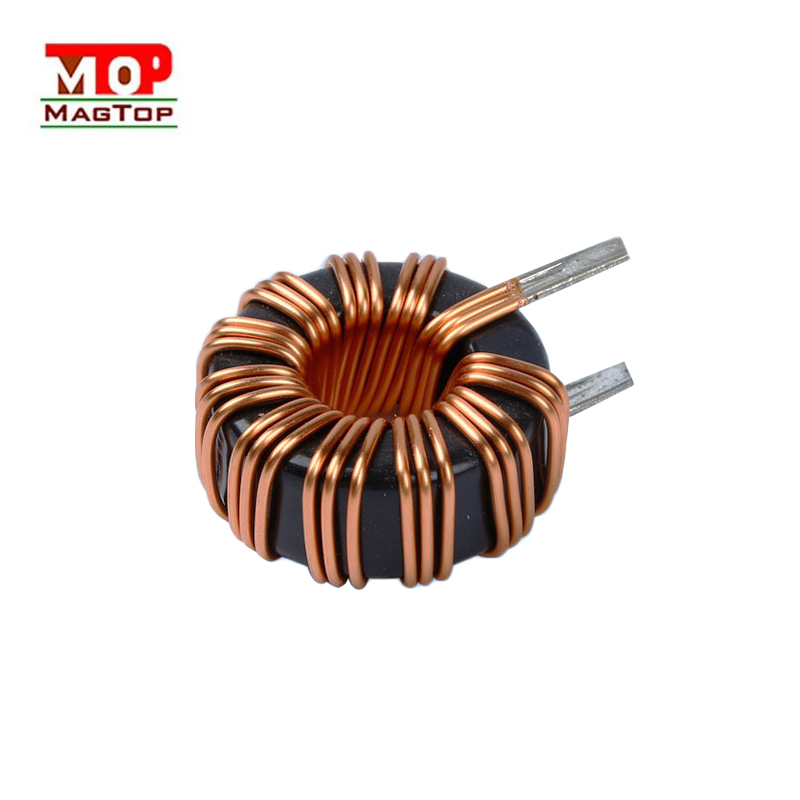

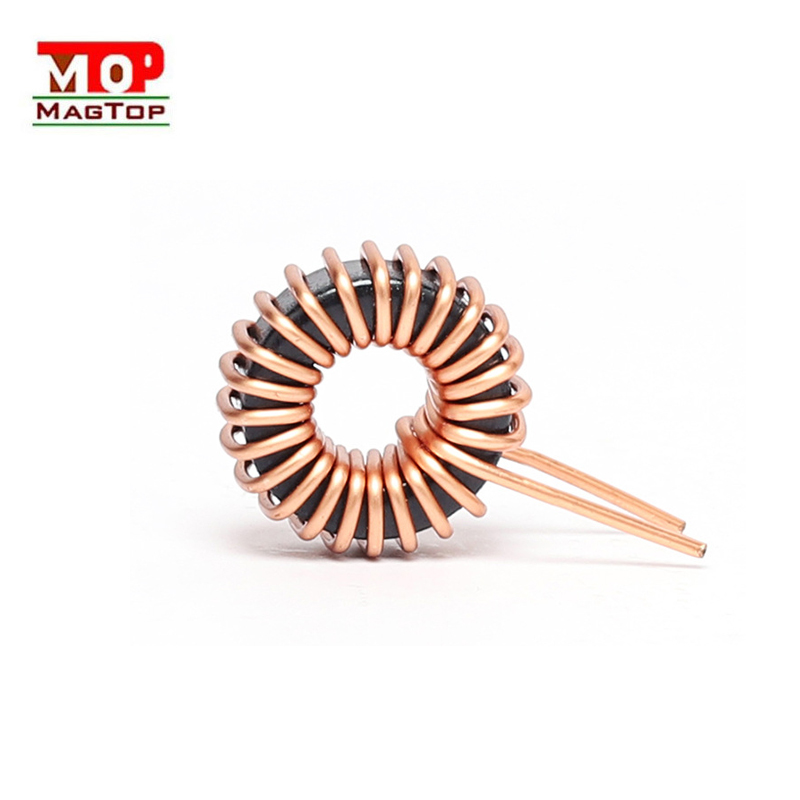

Powering Efficiency with High Power Inductors

High-power inductors are workhorses in various applications, from power supplies to industrial systems. To harness their full potential, it's vital to understand the frequency characteristics that affect their performance. Let's delve into the key factors that influence high-power inductors and explore how to optimize their operation.

1. Core Material Selection: Core material loss is a primary consideration for high-power inductors. The choice of core material impacts the inductor's performance, particularly its quality factor (Q). Core materials should be selected to minimize hysteresis and eddy current losses, ensuring high efficiency at varying frequencies.

2. Dielectric Loss in High Frequencies: High-power inductors often operate in high-frequency bands. Here, dielectric loss becomes a significant factor that can compromise efficiency. Careful selection of dielectric materials with low loss properties is essential to maintain performance.

3. Mitigating Self-Resonance: The self-resonance effect is a critical consideration for high-power inductors. This effect arises from the interplay of distributed capacitance and inductance within the inductor, leading to impedance peaks at specific frequencies. In high-power applications, minimizing self-resonance is vital for achieving stable and efficient performance.

4. Distributed Capacitance Minimization: One effective strategy to reduce self-resonance is the minimization of distributed capacitance. This involves meticulous wirewound design, where capacitances between wires, layers, and between the winding and the core are minimized. By optimizing this aspect, high-power inductors can operate efficiently at the intended frequencies without impedance spikes.

In summary, high-power inductors are indispensable in various applications. To ensure their efficiency and reliability, factors such as core material selection, dielectric loss management, and the mitigation of self-resonance through distributed capacitance minimization are essential considerations. By addressing these factors, high-power inductors can continue to power efficient electrical systems in a range of industries.
