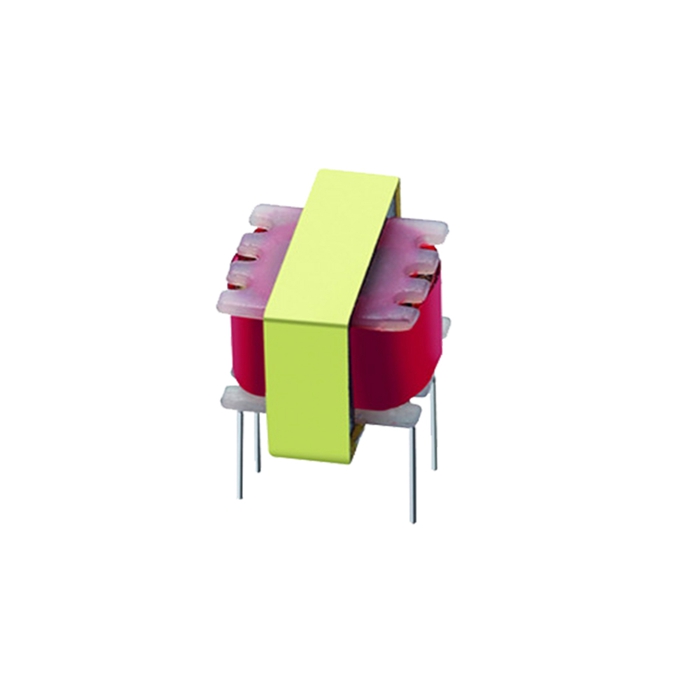

0.5VA EI24 Laminated PCB mounting Low Frequency Power Transformers

Model NO.
MTEI24-6508
FEATURES:
•  High reliability.
•  Good exchange efficiency.
•  Compact structure.
•  Operating temperature: -20 ℃ to +105 ℃
•  Storage temperature: -20 ℃ to +85 ℃
•  Insulation Class B (130 ℃)
•  UL certification optional, reference number: E516022
Quantity:
0.5VA EI24 Laminated PCB mounting Low Frequency Power Transformers

FEATURES:

•  High reliability.
•  Good exchange efficiency.
•  Compact structure.
•  Operating temperature: -20 ℃ to +105 ℃
•  Storage temperature: -20 ℃ to +85 ℃
•  Insulation Class B (130 ℃)
•  UL certification optional, reference number: E516022

ELECTRICAL SPECIFICATIONS:

Maximum Power: 5.0 VA

 1. Inductance (1`3) :   0.8 H MIN   @ 1.0 KHz, 0.25 Vrms
     Inductance (4`6) :   6.5 mH MIN   @ 1.0 KHz, 0.25 Vrms
 2. Turns Ratio :    1~3 : 4~6 = 975: 78
 3. Insulation Strength :  500VDC 1.0min 5mA @ Pri to Sec

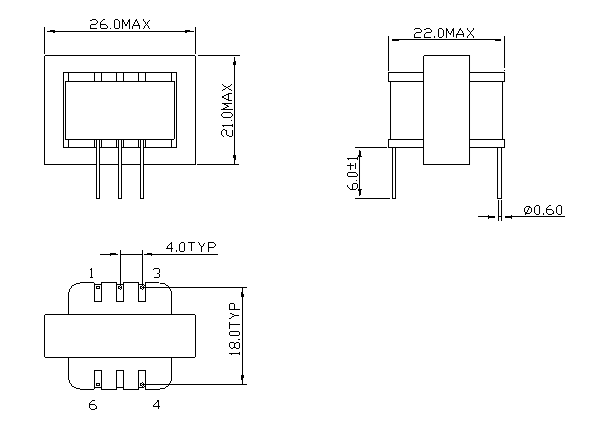

SHAPE AND DIMENSIONS:




SCHEMATIC:


    Please coneact us for more about pcb mounting transformers,low frequency power transformers manufacturers,high low frequency transformers,low frequency transformers.etc

  *  If you have more needs, please send us an inquiry, thank you!
