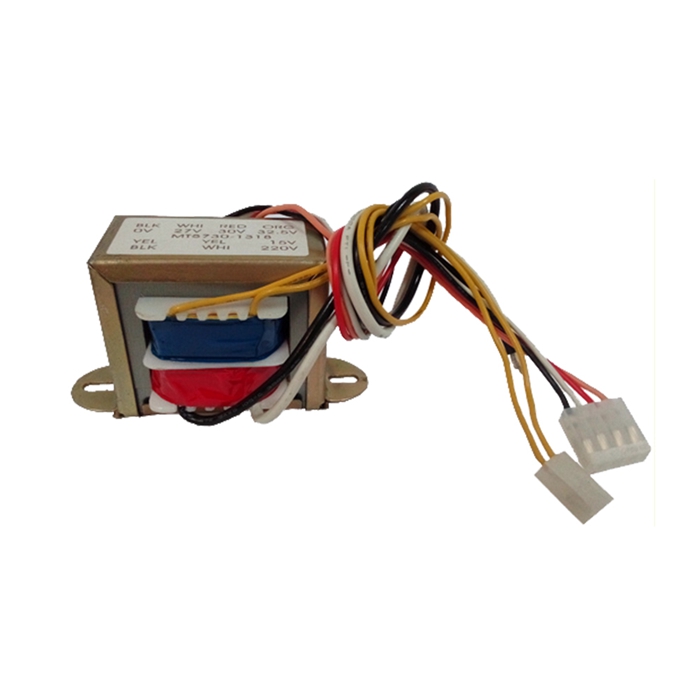

30VA EI5730 Laminated Bracket customized Low Frequency Transformers

Model NO.
MT5730
Maximum Power: 30 VA
Input Voltage and Frequency: 220VAC 50/60 Hz
Secondary Voltage: 27V @ 0.4A, 30V @ 0.5A, 32.5V @ 0.6A
Temperature Rise: 35 ℃ TYP (45 ℃ MAX allowed)
Insulation Class B (130 ℃)
Lead Wire: UL1015 20#AWG
UL insulation system certification optional, Reference No.: e516022
Quantity:
30VA EI5730 Laminated Bracket customized Low Frequency Transformers

FEATURES:

•  High reliability.
•  Good exchange efficiency.
•  Low temperature rise.
•  Compact structure, high power.
•  Operating temperature: -40 ℃ to +105 ℃
•  Storage temperature: -25 ℃ to +85 ℃

 low frequency power transformers manufacturers, high low frequency transformers, low frequency transformerslaminated transformers,low power transformers,

ELECTRICAL SPECIFICATIONS:

Maximum Power: 30 VA
Input Voltage and Frequency: 220VAC 50/60 Hz
Secondary Voltage: 27V @ 0.4A, 30V @ 0.5A, 32.5V @ 0.6A
Temperature Rise: 35 ℃ TYP (45 ℃ MAX allowed)
Insulation Resistance:
            100 Mohms MIN @ 500VDC, Pri to Sec, Pri to Core
            100 Mohms MIN @ 500VDC, Sec to Core
Hi-Pot: 1500 Vrms 1 minute @ Pri to Sec
            1500 Vrms 1 minute @ Pri to Core
            1500 Vrms 1 minute @ Sec to Core
Insulation Class B (130 ℃)
Lead Wire: UL1015 20#AWG
UL insulation system certification optional, Reference No.: e516022

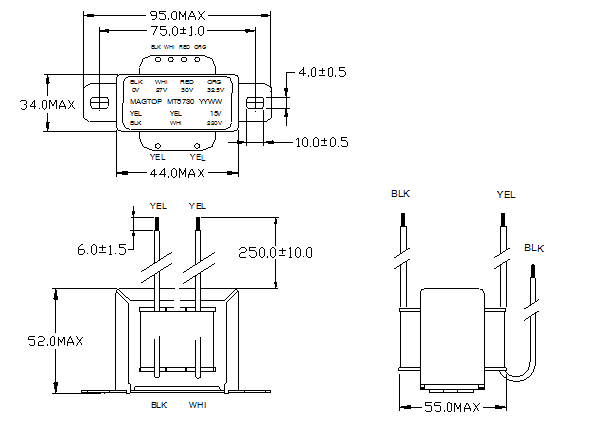

SHAPE AND DIMENSIONS:





SCHEMATIC:


Please coneact us for more about low frequency power transformers manufacturers, high low frequency transformers, low frequency transformerslaminated transformers,low power transformers,

*  If you have more needs, please send us an inquiry, thank you!
