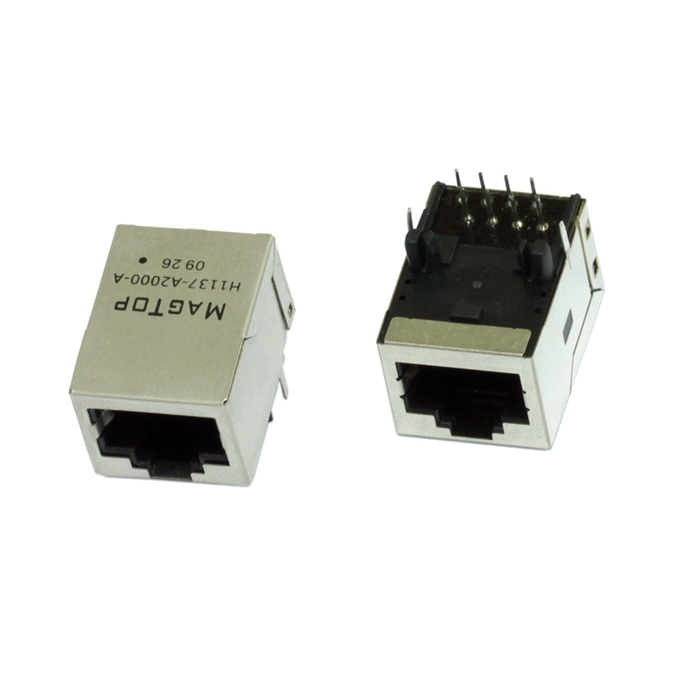

10/100Base-TX 100M Single Port (1X1) Tab-Down without LED RJ45 Connectors
10/100Base-TX RJ45 single port (1x1) Tab-Down without LEDs Integrated magnetics connector (ICM), designed to support applications,
Such as Network Interface Cards (NIC), LAN-on Motherboard (LOM), and PC applications.
Features and Benefits:

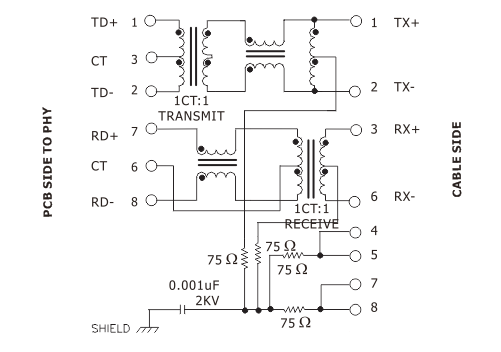

* Single port (1X1) Tab-DOWN RJ45 with internal magnetics.
* RoHS-6 peak wave solder temperature rating 260 ℃.
* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
* Internal magnetics are 100% electrically tested for HI-POT and functionality.
