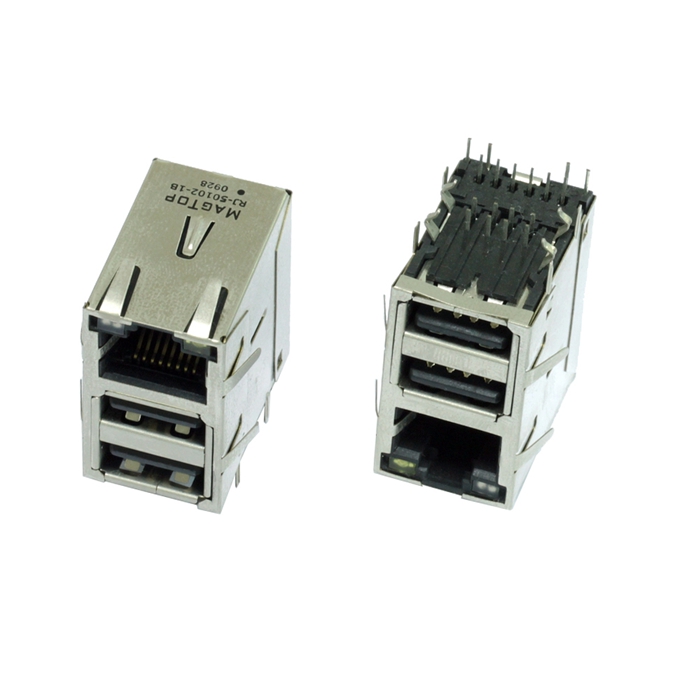

10/100Base-TX RJ45 / Dual USB Combo with LEDs Connector Modules
RJ45/Dual USB Combo is a Through Hole integrated connector module With a single Rj45 Tab-UP in combination with two USB connector ports.

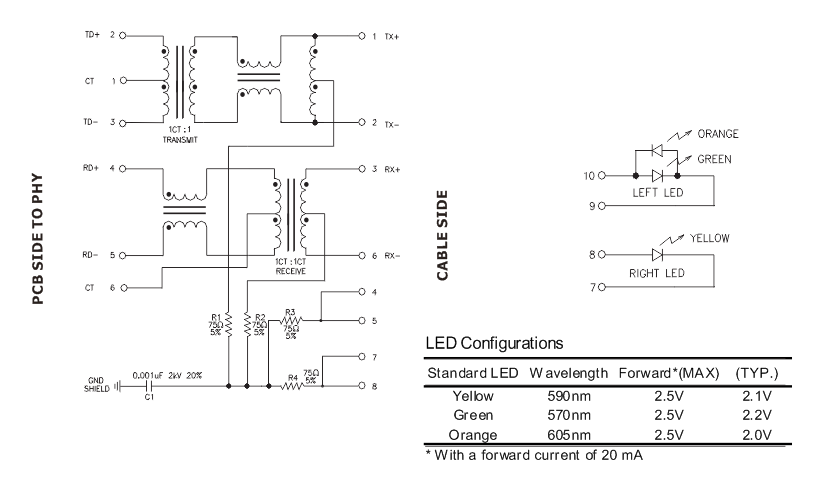

The RJ45 Connector internal magnetics are designed to support 10/100Base-TX, Applications Such as LAN-on-Motherboard and PC applications.
Features and Benefits:
* LAN interface suitable for 10/100Base-TX applications.
* RJ45/USB stacked design saves on PCB real estate.
* RoHS-6 peak wave solder temperature rating 260 ℃.
* USB module complies with USB 2.0 standards and meets CAT5 Fast Ethernet industry performance standard.
* Internal magnetics are 100% electrically tested for HI-POT and functionality.
