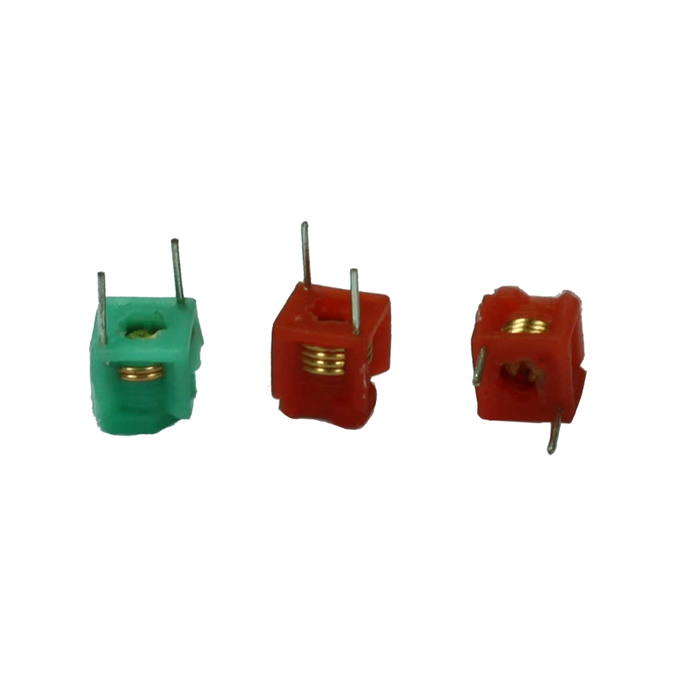

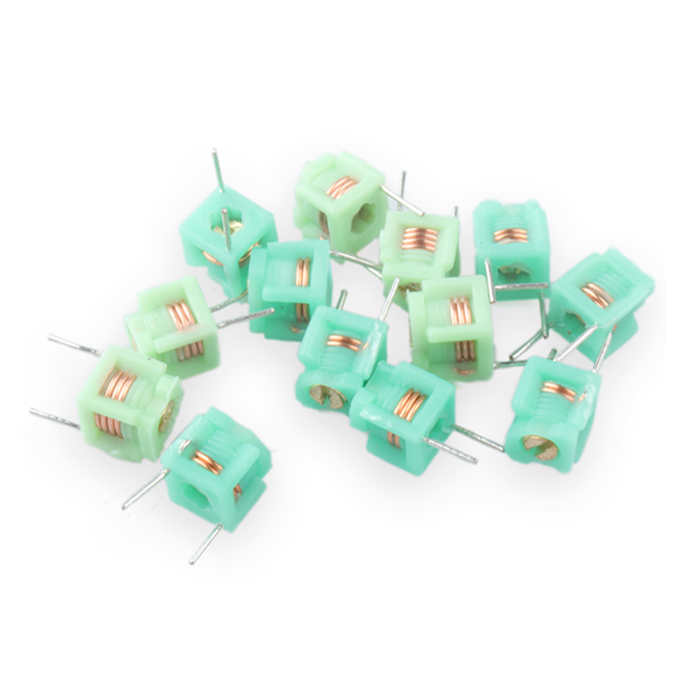

MD series adjustable Molded Coils

MD-0505, MD-0709
MD series adjustable Molded Coils

FEATURES:


•  PP plastic with air coil to be molded
•  Stable capability, winding type can be close winding
•  Adjustable inductance value
•  Operating Temperature: -20 ℃ to +85 ℃
•  Electrical specifications at 25 °C
•  Frequency range: 30MHz - 250MHz
•  Lead free, RoHS Compliant

Molded coils, variable coils, adjustable coils, filter coils, oscillator coils,adjustable inductor coil,coil manufacturer,variable inductor coils

APPLICATIONS:


• RF radio, wireless transceiver, security field,
• FM radio, TV receiver, transceiver, Car,
• wireless telecommunication,
• RF electronic application.

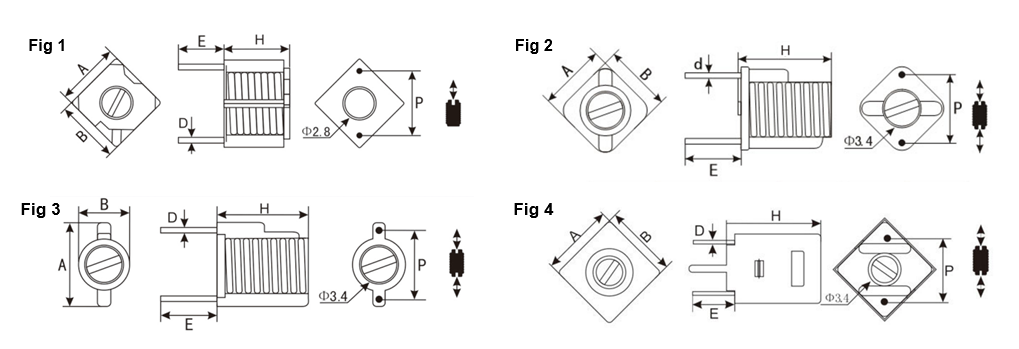

SHAPE AND DIMENSIONS:




TYPE	A(mm)	B(mm)	H(mm)	D(mm)	E(mm)	P(mm)	Figure
MD-0505A	5.1±0.2	5.1±0.2	5.0±0.5	0.4±0.1	5.0±1.0	5.0±0.5	1
MD-0505S	5.9 Max	5.9 Max	5.6 Max	0.4±0.1	5.0±1.0	5.0±0.5	4
MD-0709A	6.6+0.2	6.6+0.2	9.0±0.5	0.6±0.1	5.0±1.0	6.5±0.5	2
MD-0709S	8.1 Max	8.1 Max	11.8 Max	0.6±0.1	5.0±1.0	6.5±0.5	4

SPECIFICATIONS:


MD-0505ASeries Specifications:
Part Number	L(Nom) (nH)	L(Min) (μH)	L(Max) (μH)	Q (Min)	Test Freq (MHz)
MD-0505A-1.5T-BR-G	16.9	15.5	18.3	80	200
MD-0505A-2.5T-BR-G	30.2	27.0	33.5	80	200
MD-0505A-3.5T-BR-G	46.5	38.0	55.0	60	200
MD-0505A-4.5T-BR-G	66.5	55.5	77.5	60	200
MD-0505A-5.5T-BR-G	89.5	71.5	107.5	40	200
MD-0505A-6.5T-BR-G	103.0	87.5	118.5	40	200



MD-0505SSeries Specifications:
Part Number	L(Nom) (nH)	L(Min) (μH)	L(Max) (μH)	Q (Min)	Test Freq (MHz)
MD-0505S-1.5T-BR-G	16.0	15.5	16.5	70	200
MD-0505S-2.5T-BR-G	25.5	23.5	28.0	70	200
MD-0505S-3.5T-BR-G	40.0	34.5	45.5	60	200
MD-0505S-4.5T-BR-G	54.4	46.3	62.5	60	200
MD-0505S-5.5T-BR-G	84.5	73.5	95.5	40	200
MD-0505S-6.5T-BR-G	89.0	77.5	100.5	40	200



MD-0709ASeries Specifications:
Part Number	L(Nom) (nH)	L(Min) (μH)	L(Max) (μH)	Q (Min)	Test Freq (MHz)
MD-0709A-1.5T- BR-W	18.5	16.5	20.5	50	100
MD-0709A-2.5T- BR-W	28.3	23.4	33.2	40	100
MD-0709A-3.5T- BR-W	41.0	33.5	48.5	40	100
MD-0709A-4.5T-BR-W	53.5	42.5	64.5	40	100
MD-0709A-5.5T-BR-W	67.0	53.7	80.3	40	100



MD-0709SSeries Specifications:
Part Number	L(Nom) (nH)	L(Min) (μH)	L(Max) (μH)	Q (Min)	Test Freq (MHz)
MD-0709S-1.5T-BR-W	17.8	20.2	19.0	60	100
MD-0709S-2.5T-BR-W	23.3	30.7	27.0	60	100
MD-0709S-3.5T-BR-W	38.4	47.8	43.1	60	100
MD-0709S-4.5T-BR-W	50.8	61.2	56.0	60	100
MD-0709S-5.5T-BR-W	65.5	76.5	71.0	60	100
