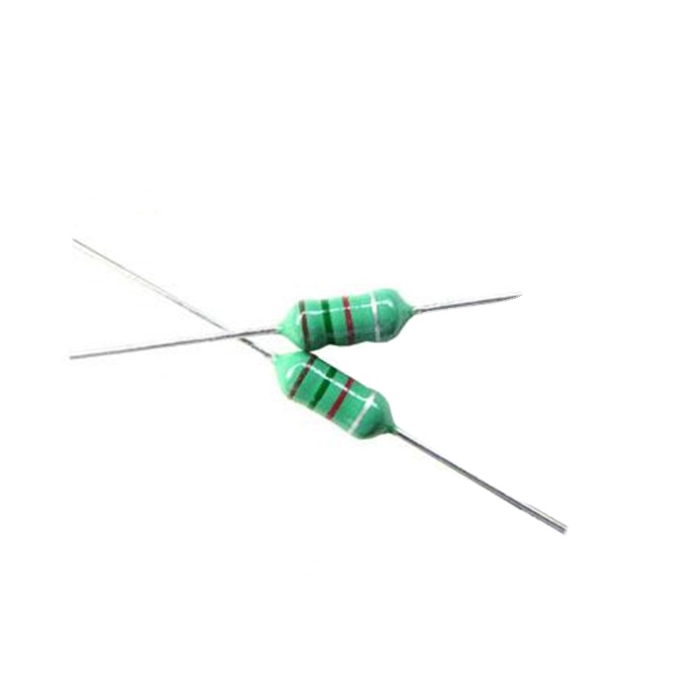

LGA series Axial Color code Fixed inductors

LGA series Axial Color code Fixed inductors

Model NO.: LGA0204, LGA0307, LGA0410, LGA0510

NDR Series is a general purpose range of inductors suitable for low to medium current applications.
Their small footprint makes them ideal for high density applications where a chip inductor will not cope with the power requirement.
FEATURES:
* Ferrite core with heat shrink tube.
* High rated current for high current circuits.
* High Reliability.
* RoHS compliant.
APPLICATIONS:
• Switching Power Supplies
• Noise Filtering
• DC to DC Converters
• Electronic Household Appliances
• Buzzers and Alarm Systems
• Television and Audio Equipment

Quantity:

Product Description

LGA0204, LGA0307, LGA0410, LGA0510
LGA series Axial Color code Fixed inductors

FEATURES:

* Ferrite core with epoxy coating.
* High rated current for high current circuits.
* High Reliability.
* RoHS compliant.

APPLICATIONS:

• Switching Power Supplies
• Noise Filtering
• DC to DC Converters
• Electronic Household Appliances
• Buzzers and Alarm Systems
• Television and Audio Equipment

GENERAL SPECIFICATIONS:

* Operating temperature: -20 °C to +105 °C.
* Storage Temperature: -20 °C to +105 °C.
* Electrical specifications at 25 °C.
* Tolerance: K: ±10% , M: ±20%.

Axial inductors, Color code inductors, fixed inductors,dip inductors, power inductors, leaded Axial inductors, Axial fixed leaded inductors, 1000 series inductors, inductors axial, axial coils inductors

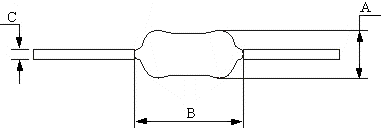

SHAPE AND DIMENSIONS:

UNIT: mm

TYPE	A	B	C	L	Rated Current	Inductance
LGA0204	2	4	0.5	63±2	0.02A-0.7A	0.1uH-1.0mH
LGA0307	3	7	0.5	63±2	0.06A-0.7A	0.1uH-10.0mH
LGA0410	4	10	0.6	63±2	0.1A-0.9A	0.1uH-10.0mH
LGA0510	5	10	0.6	63±2	0.008A-0.075A	1.2uH-47.0mH
Inductance tolerance：+5%；+10%；+20%

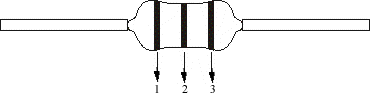

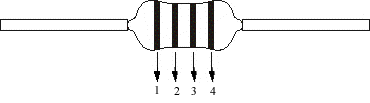

COLOR CODE:

Color	1 Code	2 Code	3 Code	4 Tolerance	(1) LGA0307,LGA0410 (2) LGA0204
BLK	0	0	1	±20%
BRN	1	1	10	-
RED	2	2	100	-
ORN	3	3	1000	-
YEL	4	4	-	-
GRN	5	5	-	-
BLU	6	6		-
PUR	7	7	-	-
GRA	8	8	-	-
WHT	9	9	-	-
GLD	-	-	0.1	±5%
SLV	-	-	0.01	±10%

ELECTRICAL CHARACTERISTICS:

LGA0204 Series

Part Number	L (uH)	Q(MIN)	Test Freq. (MHz)	SRF(MHz)MIN	R DC(OHM)MAX	I DC(mA) MAX
LGA0204-1R0K	1.0	50	25.2	110	0.22	270
LGA0204-1R2K	1.2	50	7.96	100	0.35	260
LGA0204-1R5K	1.5	40	7.96	80	0.45	250
LGA0204-1R8K	1.8	40	7.96	65	0.55	240
LGA0204-2R2K	2.2	40	7.96	55	0.65	230
LGA0204-2R7K	2.7	40	7.96	50	0.75	220
LGA0204-3R3K	3.3	40	7.96	42	0.85	210
LGA0204-3R9K	3.9	45	7.96	34	0.95	200
LGA0204-4R7K	4.7	45	7.96	32	1.1	190
LGA0204-5R6K	5.6	40	7.96	30	1.2	180
LGA0204-6R8K	6.8	40	7.96	27	1.3	175
LGA0204-8R2K	8.2	40	7.96	26	1.4	165
LGA0204-100K	10	40	7.96	24	1.5	160
LGA0204-120K	12	50	2.52	19	2.2	150
LGA0204-150K	15	50	2.52	18	2.5	145
LGA0204-180K	18	50	2.52	17	2.8	140
LGA0204-220K	22	50	2.52	16	3.0	130
LGA0204-270K	27	55	2.52	14	3.8	80
LGA0204-330K	33	50	2.52	13	4.2	75
LGA0204-390K	39	50	2.52	12	5.8	70
LGA0204-470K	47	50	2.52	11	6.4	68
LGA0204-560K	56	50	2.52	10	7.2	64
LGA0204-680K	68	50	2.52	9.5	8.5	185
LGA0204-820K	82	50	2.52	9.0	9.8	46
LGA0204-101K	100	50	2.52	7.5	11.0	44
J:+5%; K:+10% ; M:+20%

LGA0307 Series

Part Number	L (uH)	Q(MIN)	Test Freq. (MHz)	SRF(MHz)MIN	R DC(OHM)MAX	I DC(mA) MAX
LGA0307-1R0K	1.0	40	25.2	180	0.12	700
LGA0307-1R2K	1.2	50	7.96	165	0.18	700
LGA0307-1R5K	1.5	50	7.96	150	0.20	700
LGA0307-1R8K	1.8	70	7.96	125	0.23	655
LGA0307-2R2K	2.2	50	7.96	85	0.25	630
LGA0307-2R7K	2.7	60	7.96	80	0.28	595
LGA0307-3R3K	3.3	60	7.96	75	0.30	575
LGA0307-3R9K	3.9	60	7.96	65	0.32	555
LGA0307-4R7K	4.7	50	7.96	45	0.35	530
LGA0307-5R6K	5.6	50	7.96	36	0.40	500
LGA0307-6R8K	6.8	50	7.96	30	0.45	470
LGA0307-8R2K	8.2	50	7.96	28	0.55	425
LGA0307-100K	10	50	7.96	22	0.72	370
LGA0307-120K	12	50	2.52	20	0.80	350
LGA0307-150K	15	50	2.52	16	0.88	335
LGA0307-180K	18	50	2.52	15	1.0	315
LGA0307-220K	22	60	2.52	13	1.2	285
LGA0307-270K	27	60	2.52	11	1.4	270
LGA0307-330K	33	50	2.52	10	1.5	255
LGA0307-390K	39	50	2.52	9.5	1.7	240
LGA0307-470K	47	50	2.52	8.5	2.3	205
LGA0307-560K	56	55	2.52	7.5	2.6	195
LGA0307-680K	68	55	2.52	6.5	3.2	185
LGA0307-820K	82	55	2.52	6.0	3.5	175
LGA0307-101K	100	60	2.52	5.5	3.8	165
LGA0307-121K	120	60	7.96	5.4	4.7	160
LGA0307-151K	150	60	7.96	4.7	5.4	150
LGA0307-181K	180	60	7.96	4.3	6.0	140
LGA0307-221K	220	60	7.96	4.0	7.0	130
LGA0307-271K	270	60	7.96	3.7	7.7	120
LGA0307-331K	330	60	7.96	3.4	11.1	100
LGA0307-391K	390	60	7.96	2.8	12.6	95
LGA0307-471K	470	60	7.96	2.5	14.0	90
LGA0307-561K	560	60	7.96	2.3	15.5	85
LGA0307-681K	680	60	7.96	2.0	25.3	75
LGA0307-821K	820	60	7.96	1.5	27.5	65
LGA0307-102K	1000	50	7.96	1.2	31.4	60
LGA0307-122K	1200	50	7.96	0.9	37.0	50
LGA0307-152K	1500	45	7.96	0.8	39.0	40
J:+5%; K:+10% ; M:+20%

LGA0410 Series

Part Number	L (uH)	Q(MIN)	Test Freq. (MHz)	SRF(MHz)MIN	R DC(OHM)MAX	I DC(mA) MAX
LGA0410-R10K	0.10	50	25.2	470	0.04	900
LGA0410-R12K	0.12	50	25.2	450	0.06	900
LGA0410-R15K	0.15	50	25.2	430	0.07	890
LGA0410-R18K	0.18	50	25.2	410	0.07	890
LGA0410-R22K	0.22	50	25.2	380	0.08	880
LGA0410-R27K	0.27	50	25.2	340	0.09	800
LGA0410-R33K	0.33	50	25.2	300	0.10	750
LGA0410-R39K	0.39	50	25.2	280	0.12	680
LGA0410-R47K	0.47	50	25.2	250	0.16	650
LGA0410-R56K	0.56	50	25.2	230	0.18	600
LGA0410-R68K	0.68	50	25.2	210	0.22	550
LGA0410-R82K	0.82	50	25.2	172	0.24	980
LGA0410-1R0K	1.0	50	25.2	157	0.09	920
LGA0410-1R2K	1.2	50	7.96	144	0.10	880
LGA0410-1R5K	1.5	55	7.96	131	0.23	830
LGA0410-1R8K	1.8	60	7.96	121	0.25	790
LGA0410-2R2K	2.2	80	7.96	110	0.28	750
LGA0410-2R7K	2.7	85	7.96	100	0.30	720
LGA0410-3R3K	3.3	90	7.96	94	0.34	670
LGA0410-3R9K	3.9	90	7.96	86	0.37	640
LGA0410-4R7K	4.7	90	7.96	80	0.39	620
LGA0410-5R6K	5.6	80	7.96	74	0.43	590
LGA0410-6R8K	6.8	80	7.96	58	0.48	550
LGA0410-8R2K	8.2	85	7.96	53	0.52	530
LGA0410-100K	10	85	7.96	45	0.58	500
LGA0410-120K	12	75	2.52	30	0.63	480
LGA0410-150K	15	75	2.52	20	0.72	460
LGA0410-180K	18	70	2.52	14	0.77	430
LGA0410-220K	22	65	2.52	7.9	0.84	410
LGA0410-270K	27	65	2.52	7.6	0.94	390
LGA0410-330K	33	55	2.52	6.3	1.03	370
LGA0410-390K	39	55	2.52	6.3	1.12	350
LGA0410-470K	47	45	2.52	6.3	1.22	340

LGA0410-560K	56	45	2.52	6.2	1.34	320
LGA0410-680K	68	40	2.52	5.7	1.47	305
LGA0410-820K	82	35	2.52	5.3	1.62	290
LGA0410-101K	100	30	2.52	4.8	1.80	275
LGA0410-121K	120	70	0.796	3.8	3.70	185
LGA0410-151K	150	80	0.796	3.5	4.20	175
LGA0410-181K	180	80	0.796	3.3	4.60	165
LGA0410-221K	220	70	0.796	3.0	5.10	155
LGA0410-271K	270	70	0.796	2.8	5.80	145
LGA0410-331K	330	65	0.796	2.6	6.40	137
LGA0410-391K	390	65	0.796	2.4	7.00	133
LGA0410-471K	470	60	0.796	2.25	7.70	126
LGA0410-561K	560	60	0.796	2.1	8.50	120
LGA0410-681K	680	55	0.796	1.95	9.40	113
LGA0410-821K	820	55	0.796	1.85	12.0	100
LGA0410-102K	1000	50	0.252	1.40	17.0	100
J:+5%; K:+10% ; M:+20%
