Transformer Design Considerations

author: MagTop

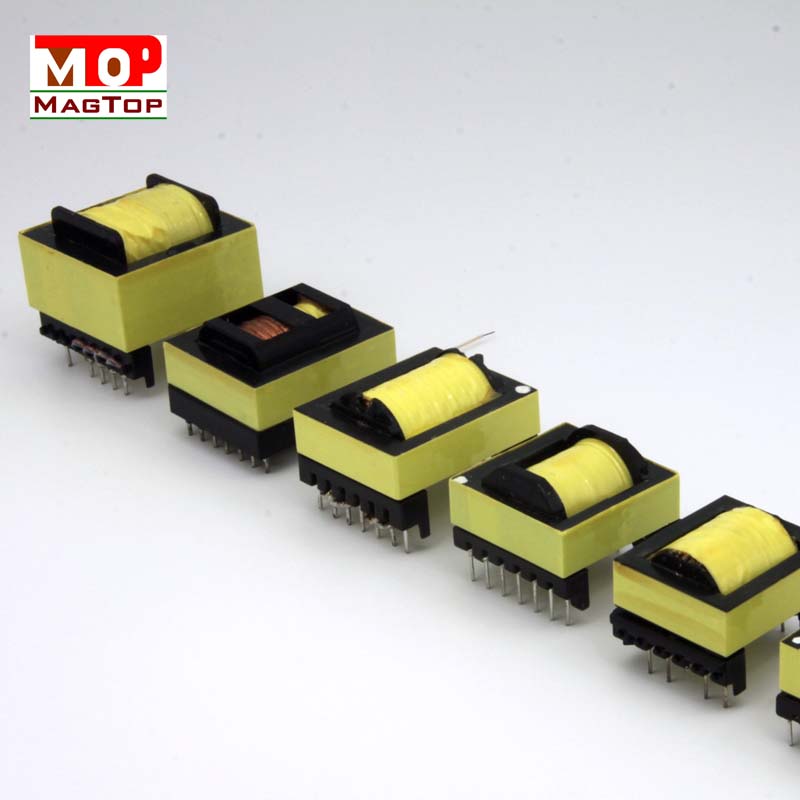

High-frequency transformers,step-up transformer
When designing a transformer, some points to pay attention to include a series of problems such as transformer parameters, temperature rise and loss issues, filling factor, circuit topology, frequency, and duty cycle.
According to factors such as output power, output voltage and output voltage adjustment range, input voltage, environmental conditions, etc., the designer can roughly obtain the total loss value, and then assign the total loss value to each loss component to obtain the allowable loss of the transformer.
When designing a transformer, the tedious steps are gradually systematized, but special transformers also face various problems. MAGTOP has rich experience in the transformer design industry and has an extremely accurate grasp of the details. Your consultation is welcome!
