what is the difference between toroidal transformer FS-100T and ordinary transformer?

author: KZ
16/09/2022
ring transformer,Toroidal transformer,
Recently, the customer service of Huizhou Magtop Co., Ltd. was asked by the customer what is the difference between the lead wires of our toroidal transformer and the different wire numbers. The following is an example to illustrate:

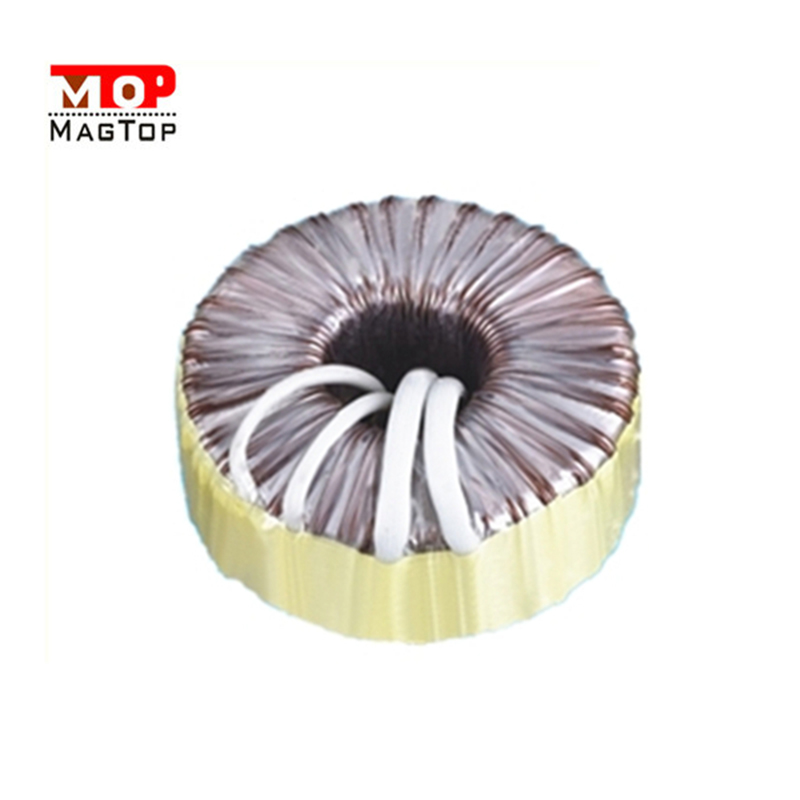

toroidal transformer,toroidal power supply,toroidal inductors and transformers

For example: what is the difference between toroidal transformer FS-100T and ordinary transformer?

The main difference between the leads of the toroidal transformer FS-100T is the difference in withstand voltage and temperature. The withstand voltage of the FS-100T line is 600V, and the temperature resistance is 105 degrees; the withstand voltage of ordinary lines is 300V, and the temperature resistance is 80 degrees; the conductor structure of the two is the same, but the nominal insulation thickness of the wire and the wire The outer diameter is different.

Welcome to click to learn
With years of in-depth research and development and experience summarization in the field of toroidal transformers, Huizhou Magtop Co., Ltd. has continuously provided users with satis factory cost-effective products. Focusing on the development of toroidal transformers for many years, the company has rich accumulation in production equipment, process manufacturing, skilled employees, engineering personnel, etc., and can better make suitable toroidal transformers for various segments.
