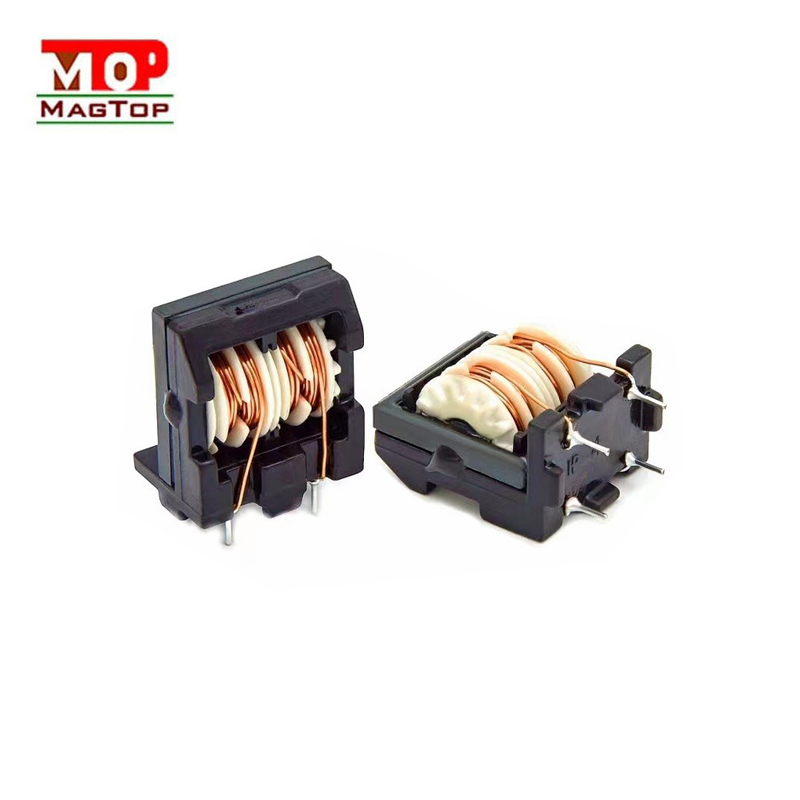

Understanding Inductor Choke Filters: Essential Parameters

In the design and selection of inductor choke filters, three critical parameters to consider are rated current, rated voltage, and cut-off frequency. The rated current is the maximum current that can flow through the filter without causing overheating or performance degradation. Exceeding this current can lead to inductance saturation, where the filter's ability to handle low-frequency noise is compromised. Therefore, selecting a filter with a rated current 1.5 times the actual current is advisable to provide a safety margin.

Rated voltage determination involves evaluating the potential for high-voltage impacts such as electrostatic discharge or electromagnetic pulses. If the circuit is not exposed to these conditions, the circuit's working voltage can be used as the filter's rated voltage. However, if the filter might encounter high-voltage impacts, especially for external cables, it is crucial to consider these factors and ensure the rated voltage includes a sufficient safety margin.

The cut-off frequency is another essential parameter. It must be set to ensure the filter's passband covers the signal bandwidth, thus maintaining normal device operation while filtering out high-frequency interference. For analog signals, this means choosing a cutoff frequency greater than the signal's bandwidth. For digital pulse signals, the cutoff frequency should be set to 1/tr, with tr representing the rise/fall time of the pulse. For periodic pulse signals, a cutoff frequency of 15 times the pulse repetition frequency is often appropriate.
