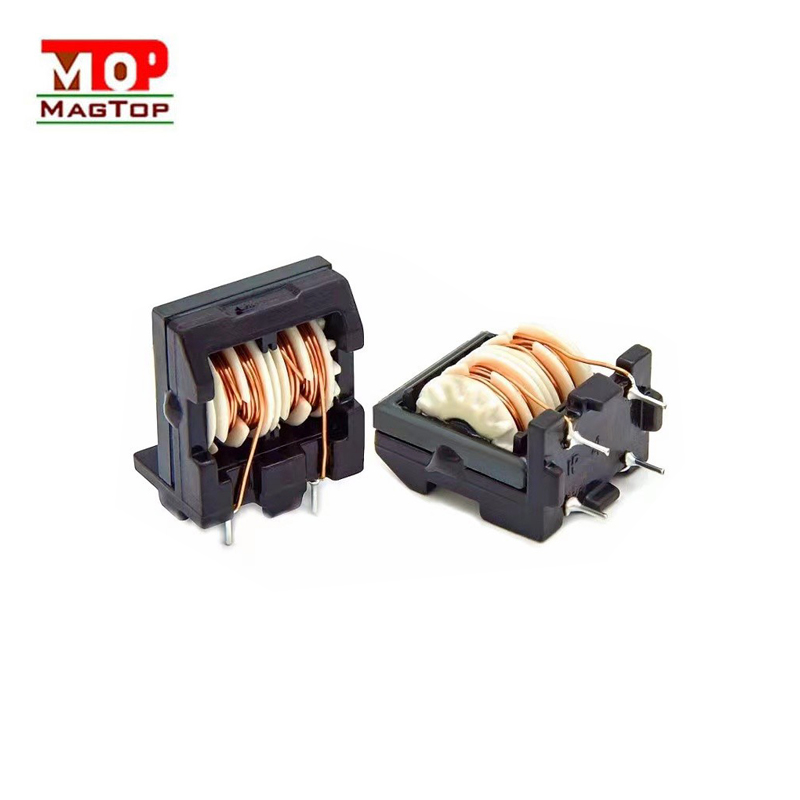

Selecting Filter Choke Inductors for Optimal Performance

When selecting a filter choke inductor, three primary parameters must be considered: rated current, rated voltage, and cut-off frequency. The rated current indicates the maximum working current that the filter can handle without overheating or degrading performance. If the operating current exceeds the rated current, the inductance may saturate, reducing the actual inductance and impairing the filter's effectiveness. To avoid this, it's prudent to choose a filter with a rated current that is 1.5 times the expected current.

Determining the rated voltage involves assessing whether the filter will be subjected to high-voltage impacts such as electrostatic discharge or electromagnetic pulses. If not, the circuit's working voltage can be used as the filter's rated voltage. However, if the filter is exposed to high voltages, especially for cables that run outside the equipment, it's essential to factor in these conditions and leave a sufficient margin to ensure the filter's reliability.

The cut-off frequency should be chosen to ensure the filter effectively removes unwanted high-frequency interference while allowing the desired signal to pass through. For analog signals, the cutoff frequency should be greater than the signal's bandwidth. For digital pulse signals, the cutoff frequency can be set to 1/tr, with tr being the pulse's rise/fall time. For periodic pulse signals, a cutoff frequency of 15 times the pulse repetition frequency is recommended.
