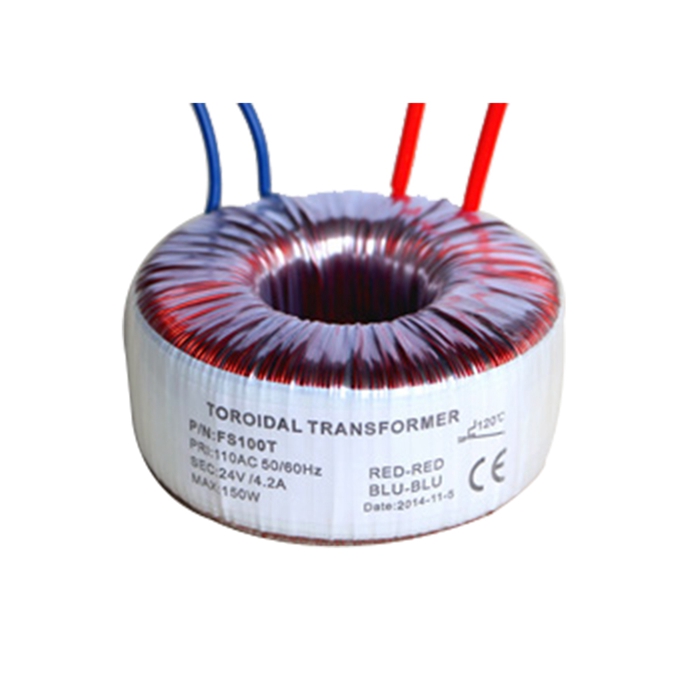

100W Toroidal Step-down Isolation Transformers

FEATURES:

•  High reliability.
•  Good exchange efficiency.
•  Low temperature rise.
•  Compact structure, high power.
•  High insulation strength.
•  Operating temperature: -40 ℃ to +125 ℃
•  Storage temperature: -25 ℃ to +85 ℃
•  Lead Wire: UL1015 18#AWG
•  Insulation Class B (130 ℃)
•  UL certification optional, reference number: E516022
 toroidal transformers,transformers toroidal, transformers isolation transformers, transformers isolation,isolation transformers.


ELECTRICAL SPECIFICATIONS:

Maximum Power: 100 VA
Input Voltage and Frequency: 220VAC 50Hz
Secondary Voltage: 24V @ 4.2A
Hi-Pot: 2500 Vrms 1 min @ Pri to Sec

 1. PRI. Current (Y~Y) :


15.0 mA MAX


@ 220V 50Hz, No Load




 2. Rated Voltage  (R~R) :


27.0 V  REF.

@ 220V 50Hz, No Load












24.0 V +/-5%

@ 220V 50Hz, 4.2A Load




 3. DC Resistance  (Y~Y) :
50.0 Ω ±10%

                            (R~R) :
2.5 Ω ±10%

 4. Insulation Strength :


3.5KV 5mA 3s

@ PRI. to SEC.






 5. Temperature Rise(ΔT)


60MAX


@ 25

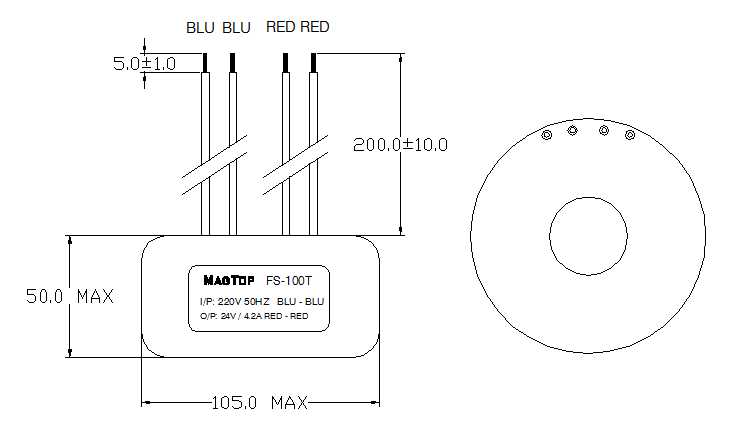

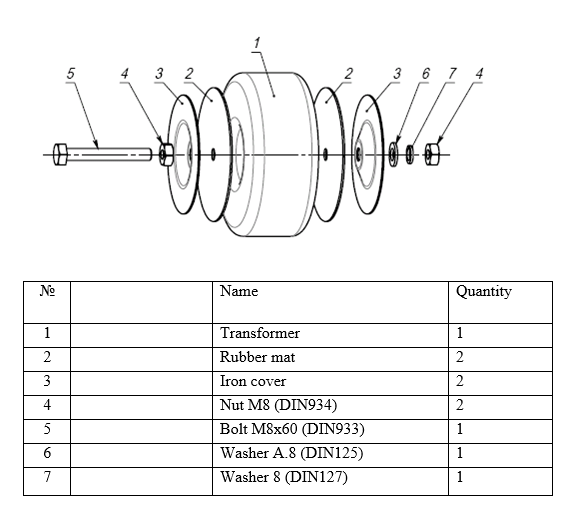

SHAPE AND DIMENSIONS:

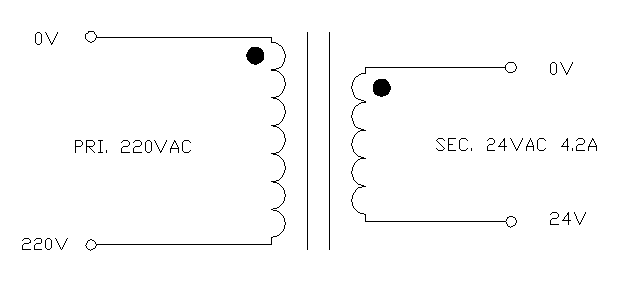

SCHEMATIC:
