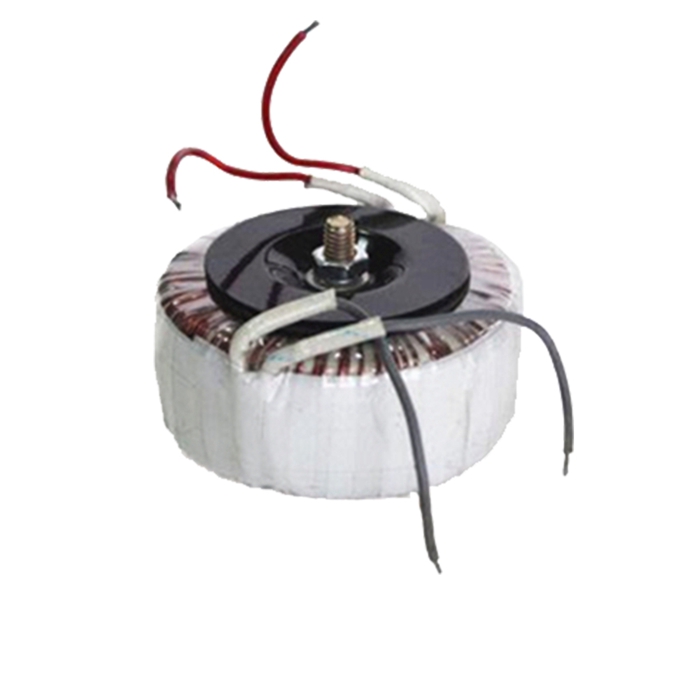

40VA Toroidal power supply Transformers

Model NO.
MTTC7545-40VA
•  High reliability.
•  Good exchange efficiency.
•  Low temperature rise.
•  Compact structure, high power.
•  High insulation strength.
•  Operating temperature: -40 ℃ to +125 ℃
•  Storage temperature: -25 ℃ to +85 ℃
•  Built in thermal protector safety switch
•  Lead Wire: UL1015 18#AWG
•  ​​​​​​​Insulation Class B (130 ℃)
•  UL certification optional, reference number: E516022
Quantity:
40VA Toroidal Power Supply Transformers

FEATURES:

•  High reliability.
•  Good exchange efficiency.
•  Low temperature rise.
•  Compact structure, high power.
•  High insulation strength.
•  Operating temperature: -40 ℃ to +125 ℃
•  Storage temperature: -25 ℃ to +85 ℃
•  Built in thermal protector safety switch
•  Lead Wire: UL1015 18#AWG
•  Insulation Class B (130 ℃)
•  UL certification optional, reference number: E516022




ELECTRICAL SPECIFICATIONS:

Maximum Power: 40 VA
Input Voltage and Frequency: 220VAC 50Hz
Secondary Voltage: 20V @ 2.0A
Hi-Pot: 3500 Vrms 3 Sec @ Pri to Sec

 1. PRI. Current (Y~Y) :


6.0 mA MAX


@ 220V 50Hz, No Load




 2. Rated Voltage  (R~R) :


22.0 V +/-5%

@ 220V 50Hz,No Load












20.0 V +/-5%

@ 220V 50Hz,2.0A Load




 3. DC Resistance  (Y~Y) :
59.5Ω±10%

                            (R~R) :
1.5Ω±10%

 4. Insulation Strength :


3.5KV 5mA 3s

@ PRI. to SEC.






 5. Temperature Rise(ΔT)


80MAX


@ 25,After Full Load Working 4 Hours,














 Resister Method

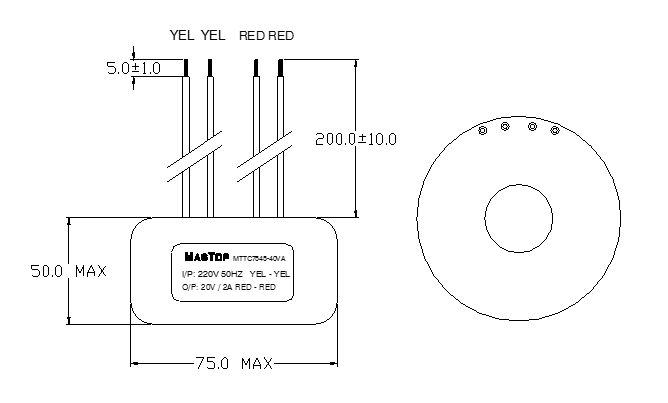

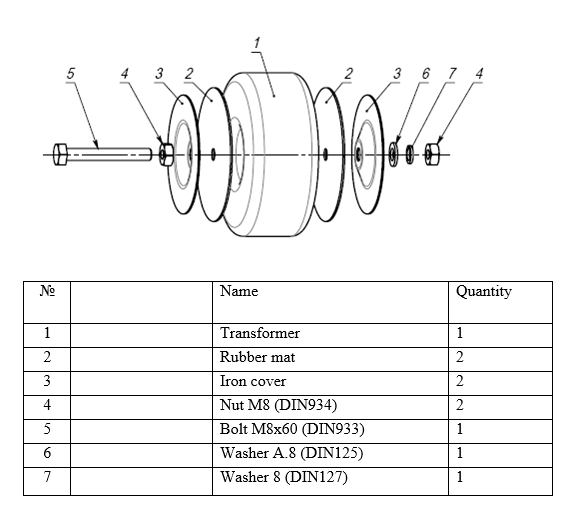

SHAPE AND DIMENSIONS:




SCHEMATIC:
