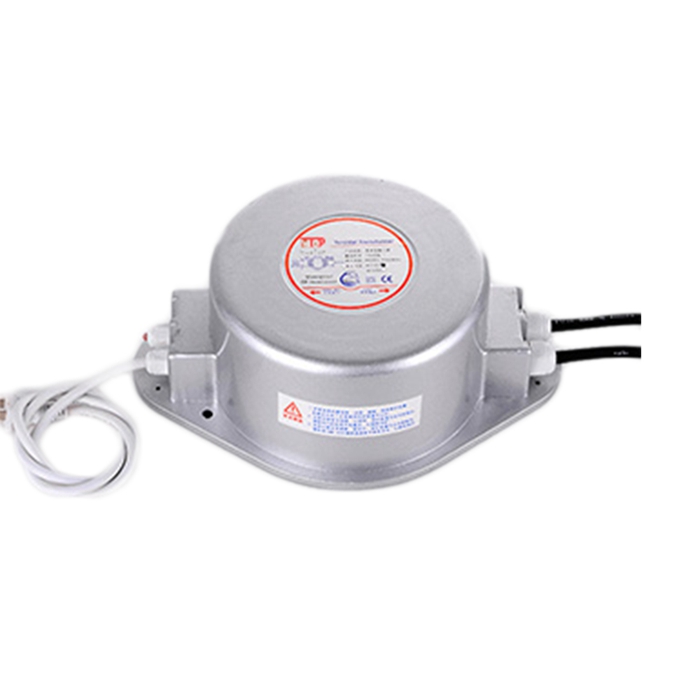

160W Toroidal Isolation Waterproof Transformers

Model NO.
MTWPT160-24V
FEATURES:
•  High reliability.
•  Good exchange efficiency.
•  Low temperature rise.
•  Compact structure, high power.
•  High insulation strength.
•  Waterproof grade: IP67.
•  Operating temperature: -40 ℃ to +125 ℃
•  Storage temperature: -25 ℃ to +85 ℃
•  Insulation Class B (130 ℃)
•  UL certification optional, reference number: E516022
ELECTRICAL SPECIFICATIONS:
Maximum Power: 160 VA
Input Voltage and Frequency: 220VAC 50Hz
Secondary Voltage: 24V @ 6.67A
Hi-Pot: 2500 Vrms 1 min @ Pri to Sec
Quantity:
160W Toroidal Isolation Waterproof Transformers

FEATURES:

•  High reliability.
•  Good exchange efficiency.
•  Low temperature rise.
•  Compact structure, high power.
•  High insulation strength.
•  Waterproof grade: IP67.
•  Operating temperature: -40 ℃ to +125 ℃
•  Storage temperature: -25 ℃ to +85 ℃
•  Insulation Class B (130 ℃)
•  UL certification optional, reference number: E516022

toroidal transformers, transformers toroidal,transformers isolation transformers, transformers isolationisolation transformers.


ELECTRICAL SPECIFICATIONS:

Maximum Power: 160 VA
Input Voltage and Frequency: 220VAC 50Hz
Secondary Voltage: 24V @ 6.67A
Hi-Pot: 2500 Vrms 1 min @ Pri to Sec

 1. PRI. Current (Y~Y) :


25.0 mA MAX


@ 220V 50Hz, No Load




 2. Rated Voltage  (R~R) :


28.0 V  REF.

@ 220V 50Hz, No Load












24.0 V +/-5%

@ 220V 50Hz, 6.67A Load




 3. DC Resistance  (Y~Y) :
25.0 Ω ±10%

                            (R~R) :
1.0 Ω ±10%

 4. Insulation Strength :


2.5KV 5mA I min

@ PRI. to SEC.






 5. Temperature Rise(ΔT)


45 MAX


@ 25

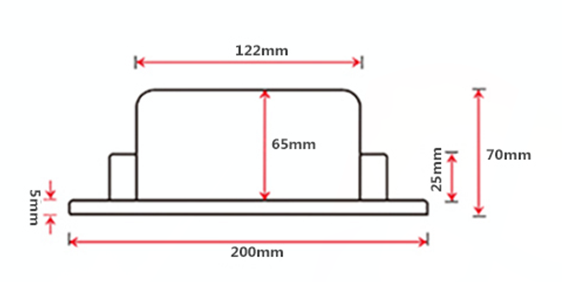

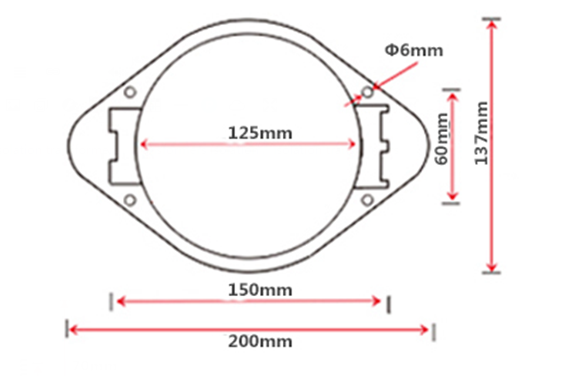

SHAPE AND DIMENSIONS:








SCHEMATIC:
Please coneact us for more about toroidal transformers, transformers toroidal,transformers isolation transformers, transformers isolationisolation transformers.
*  If you have more needs, please send us an inquiry, thank you!
