120W Audio Toroidal Transformers

Model NO.
MT-HSD1439H

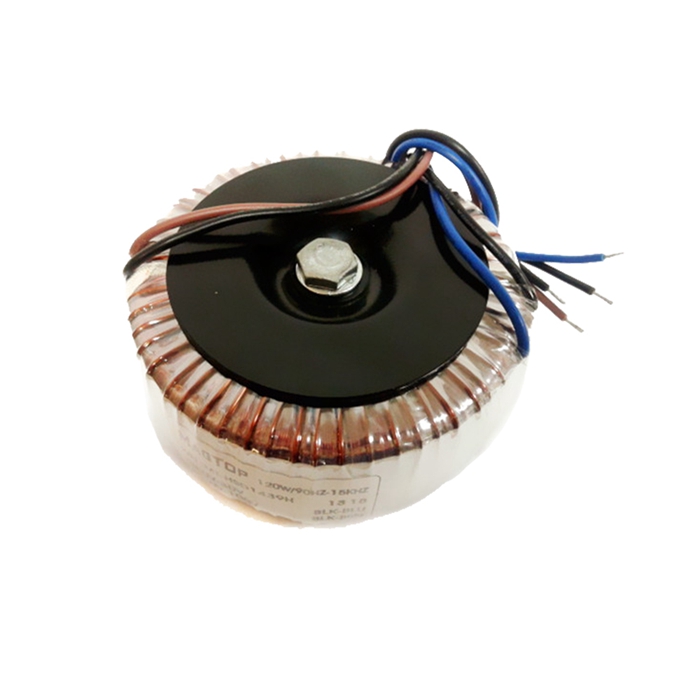

120W Audio Toroidal Transformers.
Output Power: 120W
Frequency Range: 90 Hz ~ 15 kHz
Turns Ratio : P1 ~ P2 : S1 ~ S2 = 3 : 10
Primary-Secondary: 2kV rms AC 50Hz 1minute
Core-Primary: 2kV rms AC 50Hz 1minute
Core-Secondary: 2kV rms AC 50Hz 1minute
Quantity:
120W Audio Toroidal Transformers

FEATURES:
•  High reliability.
•  Good exchange efficiency.
•  High insulation strength.
•  Operating temperature: -40 ℃ to +125 ℃
•  Storage temperature: -25 ℃ to +85 ℃
•  Lead Wire: UL1015 18#AWG
•  Insulation Class B (130 ℃)
•  UL certification optional, reference number: E516022

ELECTRICAL SPECIFICATIONS:

Primary: 30V
Secondary: 100V
Output Power: 120W
Frequency Range: 90 Hz ~ 15 kHz
Turns Ratio: P1 ~ P2 : S1 ~ S2 = 3 : 10
Primary-Secondary: 2kV rms AC 50Hz 1minute
Core-Primary: 2kV rms AC 50Hz 1minute
Core-Secondary: 2kV rms AC 50Hz 1minute
toroidal audio transformers ,toroidal transformers for audio ,toroidal transformers ,transformers toroidal ,output toroidal transformers for audio

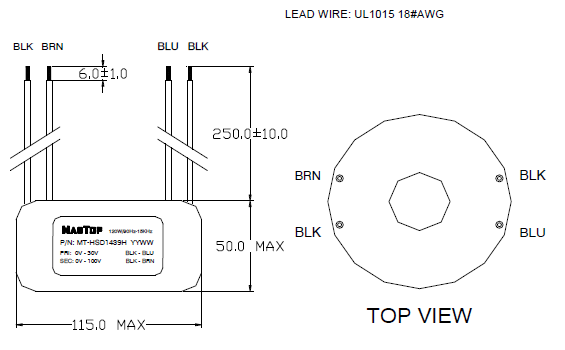

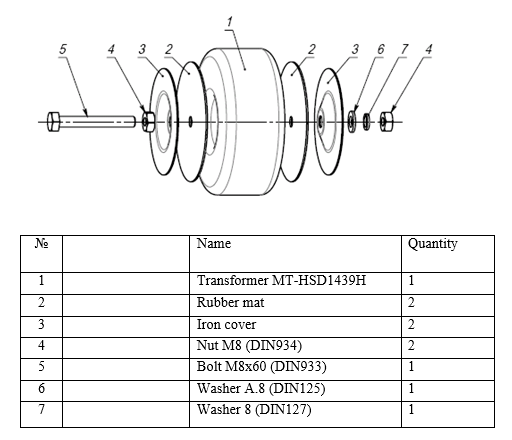

SHAPE AND DIMENSIONS:

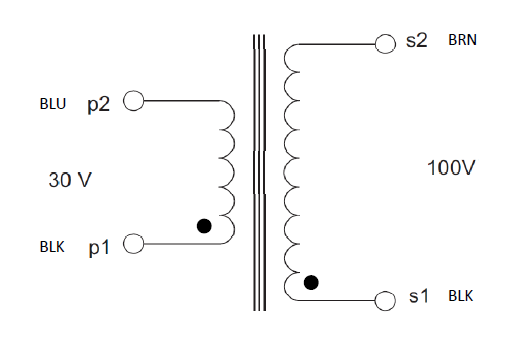

SCHEMATIC:




Please coneact us for more about toroidal audio transformers ,toroidal transformers for audio ,toroidal transformers ,transformers toroidal ,output toroidal transformers for audio.etc
