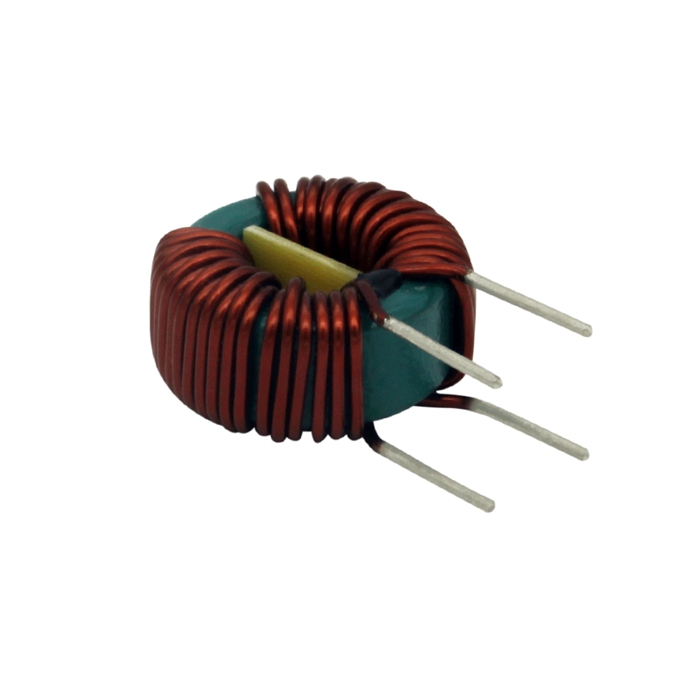

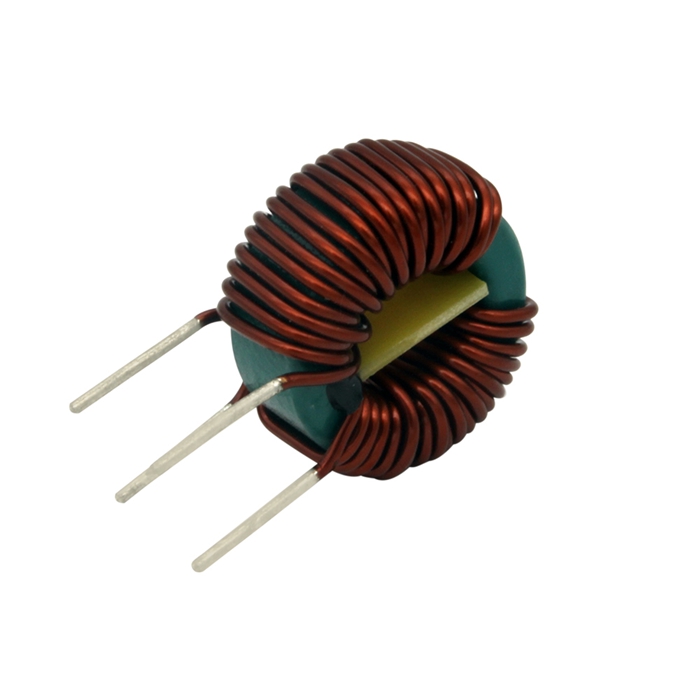

T25 Toroidal power line common mode choke Coils

Model NO.
NCMC251512-302
FEATURES:
• Excellent EMI suppression capability over wide frequency spectrum
• High saturation resistance and excellent thermal behavior
• High current capacity
• Dielectric strength: 1500 Vrms
• Operating Temperature: -40 ℃ to +105 ℃
APPLICATIONS:
• Switch-mode power applications
• Suppressing common-mode interference levels
• EMI input filters
• For suppression-equipment with no earth connection
• Phase-angle control circuits in combination with saturating chokes
Quantity:
T25 Toroidal power line common mode choke Coils

FEATURES:
• Excellent EMI suppression capability over wide frequency spectrum
• High saturation resistance and excellent thermal behavior
• High current capacity
• Dielectric strength: 1500 Vrms
• Operating Temperature: -40 ℃ to +105 ℃


APPLICATIONS:

• Switch-mode power applications
• Suppressing common-mode interference levels
• EMI input filters
• For suppression-equipment with no earth connection
• Phase-angle control circuits in combination with saturating chokes

SPECIFICATIONS:

• Operating voltage: 300 VAC
• Rated Current: 1.0 to 15 A
• Rated Inductance: 1.0 mH to 68.0 mH

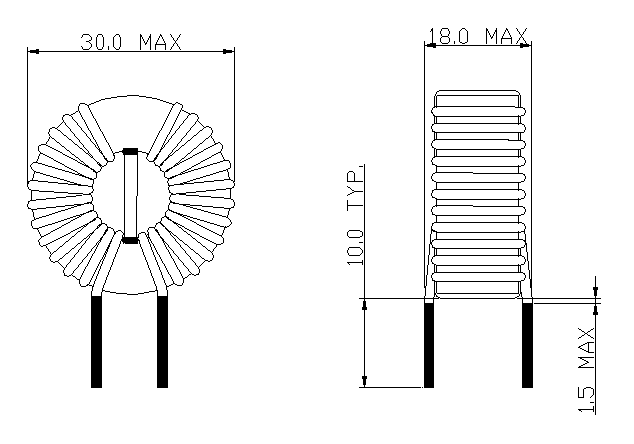

SHAPE AND DIMENSIONS:

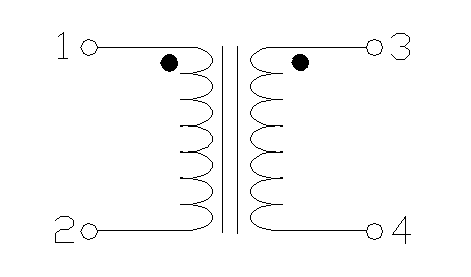

SCHEMATIC:



Please coneact us for more about toroidal common mode choke, common mode choke coils,toroidal common mode choke filter,smd toroidal choke coil etc.


*  If you have more needs, please send us an inquiry, thank you!
