NFU105-183 AC Line Filter
NFU105-183 AC Line Filter
UU105 AC Line Filter Common Mode Choke Coils
common mode Inductors
common mode choke coils
NFU105-183 AC Line Filter
UU105 AC Line Filter Common Mode Choke Coils
common mode Inductors
common mode choke coils

UU10.5 Common Mode Choke inductor AC Line Filter

Model NO.
NFU105-183
FEATURES:
​​​​​​​•  Excellent EMI suppression capability over wide frequency spectrum
•  High saturation resistance and excellent thermal behavior
•  High current capacity
•  Operating Temperature: -40 ℃ to +125 ℃
•  RoHS Compliant
APPLICATIONS:
• Audio-visual equipment
• Office automation equipment
• Digital appliances
• Power supplies
Quantity:
NFU105-183

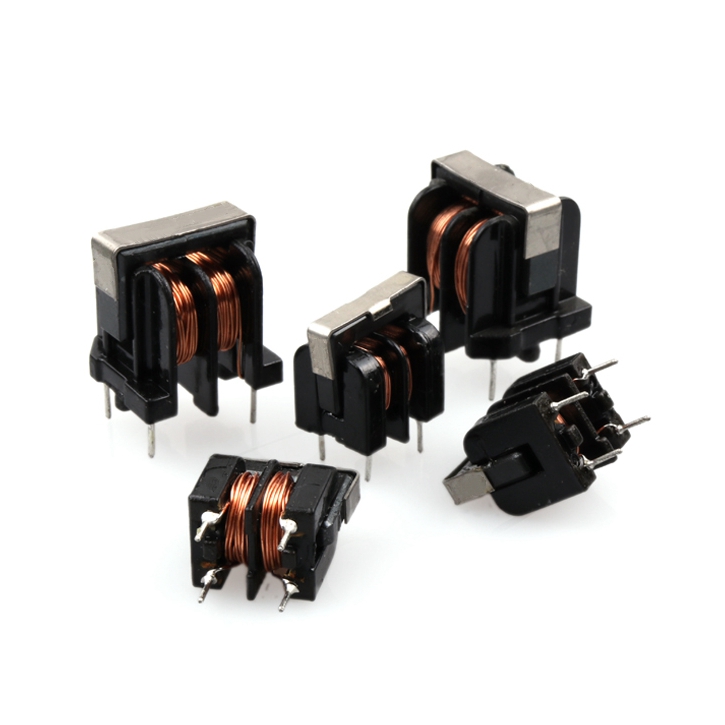

UU10.5 Common Mode Choke Coils AC Line Filters


FEATURES:
•  Excellent EMI suppression capability over wide frequency spectrum
•  High saturation resistance and excellent thermal behavior
•  High current capacity
•  Operating Temperature: -40 ℃ to +125 ℃
•  RoHS Compliant

APPLICATIONS:

• Audio-visual equipment
• Office automation equipment
• Digital appliances
• Power supplies

SPECIFICATIONS:

•  Operating voltage: 250 VAC
•  Rated Current: 0.2 A to 10.0 A
•  Rated Inductance: 0.5 mH to 68.0 mH
•  Dielectric strength: 1500 Vrms
•  Insulation Resistance: 100 MΩ at 500 VDC

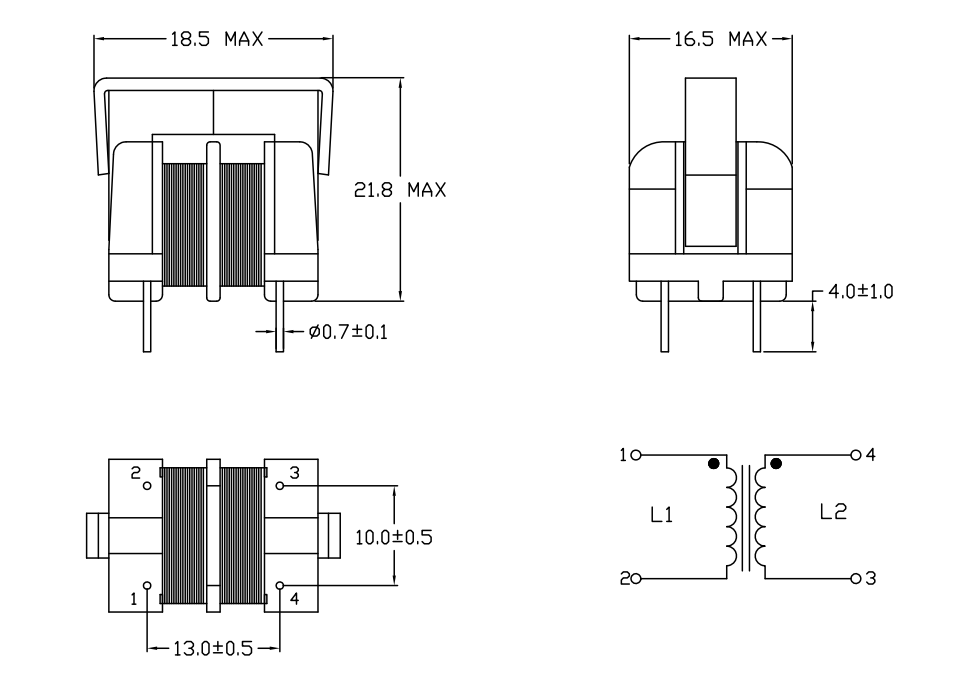

SHAPE AND DIMENSIONS:



SCHEMATIC:


Please coneact us for more about common mode choke coils, AC Filter coils, common mode inductors, UU filter inductors, UT filter inductors, ET filter inductors etc.

  *  If you have more needs, please send us an inquiry, thank you!
