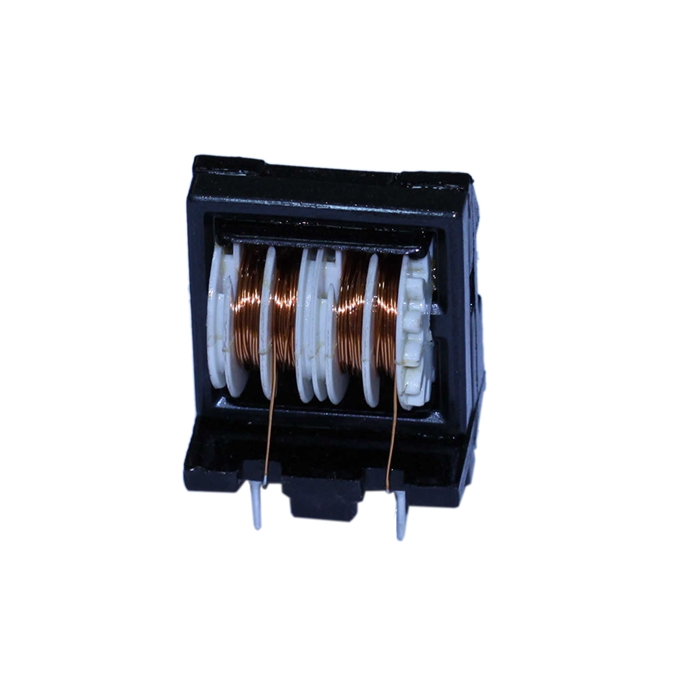

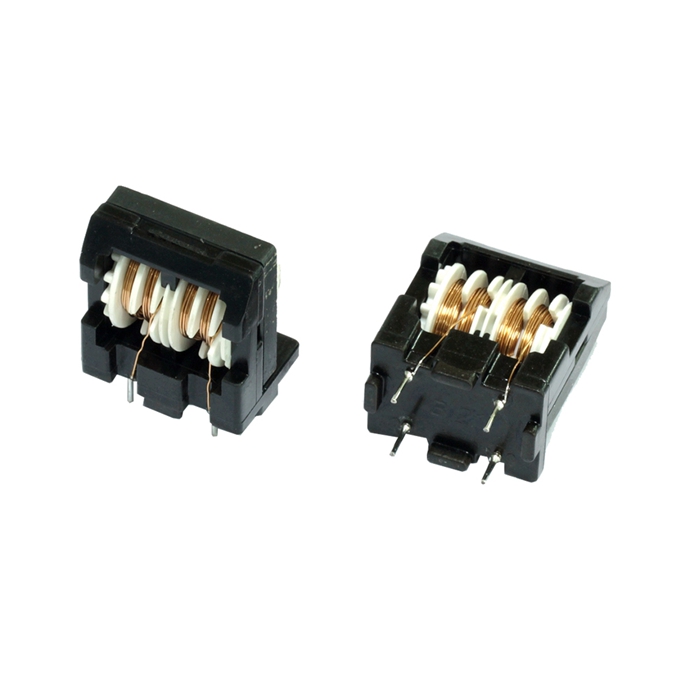

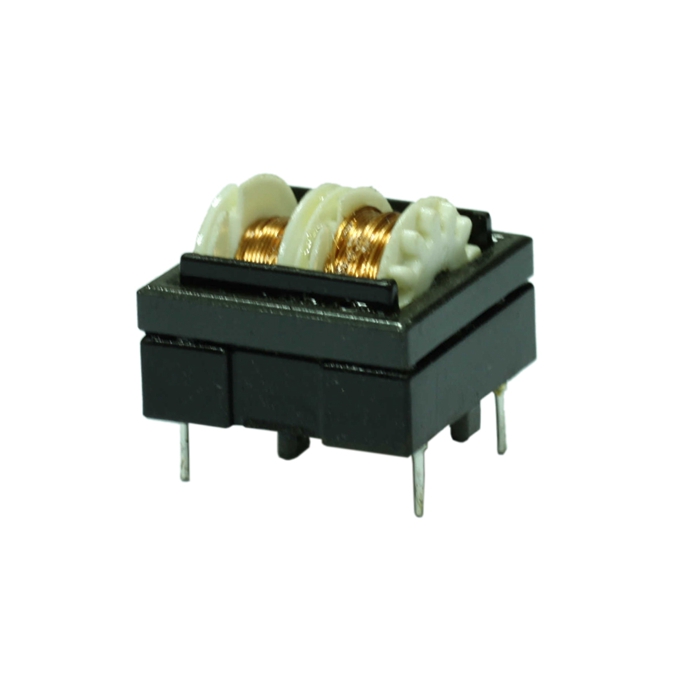

ET24 AC Line Filter Common Mode Choke Inductors

Model NO.
NET24V-502
FEATURES:
​​​​​​​•  Excellent EMI suppression capability over wide frequency spectrum
•  High saturation resistance and excellent thermal behavior
•  High current capacity
•  Operating Temperature: -40 ℃ to +125 ℃
•  RoHS Compliant
APPLICATIONS:
• Audio-visual equipment
• Office automation equipment
• Digital appliances
• Power supplies
Quantity:
NET24V-502
ET24 AC Line Filter Common Mode Choke Inductors


FEATURES:
•  Excellent EMI suppression capability over wide frequency spectrum
•  High saturation resistance and excellent thermal behavior
•  High current capacity
•  Operating Temperature: -40 ℃ to +125 ℃
•  RoHS Compliant

Please coneact us for more about ET common mode choke filter,common mode coils,common mode choke Inductors,ET24 AC Line filters, Filter inductors,common mode Inductors, 5mH Line inductors,toroidal common mode choke filter,common choke mode choke coil, pulse common mode choke
APPLICATIONS:

• Audio-visual equipment
• Office automation equipment
• Digital appliances
• Power supplies

SPECIFICATIONS:

•  Operating voltage: 250 VAC
•  Rated Current: 0.3 A to 5.0 A
•  Rated Inductance: 1.0 mH to 78.0 mH
•  Dielectric strength: 2400 Vrms
•  Insulation Resistance: 100 MΩ at 500 VDC

 1. Inductance (N1=N2) : 5.0 mH MIN   @ 1.0 KHz, 0.25 Vrms
 2. DC Resistance(N1=N2): 0.50   Ohms MAX  @20°C
 3. Turns Ratio :    4~1 : 3~2 = 1 : 1 ±3%
 4.  Rated current : 2.0A  MAX
 5.  Insulation Strength : 2.4KV AC 5mA 3sec 50/60HZ       @ Wind to Wind
 6.  Insulation Resistance : 100 Mohm MIN
 7.  Rated voltage : AC 250 V MAX


SHAPE AND DIMENSIONS:

      ET common mode choke filter

SCHEMATIC:
         ET24 AC Line filters

Please coneact us for more about common mode choke coils, AC Filter coils, common mode inductors, UU filter inductors, UT filter inductors, ET filter inductors etc.

Please coneact us for more about ET common mode choke filter,common mode coils,common mode choke Inductors,ET24 AC Line filters, Filter inductors,common mode Inductors, 5mH Line inductors,toroidal common mode choke filter,common choke mode choke coil, pulse common mode choke

  *  If you have more needs, please send us an inquiry, thank you!
