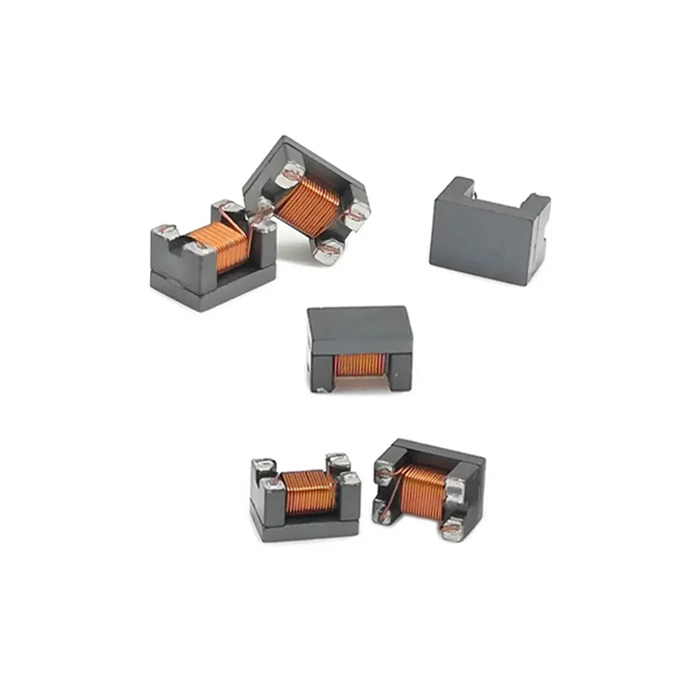

SMD EMI Filter Common Mode Choke Coils

Model NO.
MCMC2012, MCMC3216, MCMC4525
FEATURES:
​​​​​​​•  Excellent EMI suppression capability over wide frequency spectrum
•  High saturation resistance and excellent thermal behavior
•  High current capacity
•  Operating Temperature: -20 ℃ to +85 ℃
•  RoHS Compliant
APPLICATIONS:
• Audio-visual equipment
• Office automation equipment
• Digital appliances
• Power supplies
Quantity:
MCMC2012, MCMC3216, MCMC4525

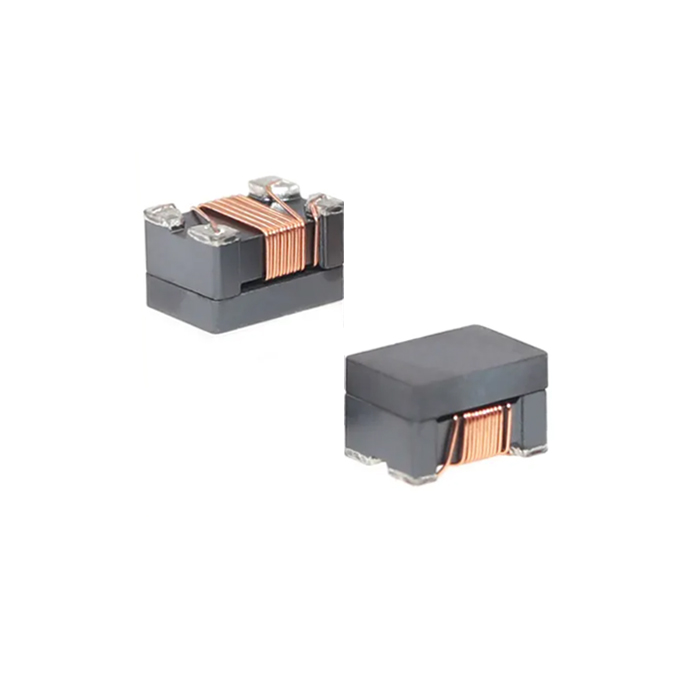

SMD EMI Filter Common Mode Choke Coils


FEATURES:


•  Excellent EMI suppression capability over wide frequency spectrum
•  High saturation resistance and excellent thermal behavior
•  High current capacity
•  Operating Temperature: -20 ℃ to +85 ℃
•  RoHS Compliant

APPLICATIONS:

• Preventive measure against high speed signal
• radiation emissions such as USB 2.0,
• IEEE1394 or LAN interface.
• Best for NB, DSC, mobile device design.

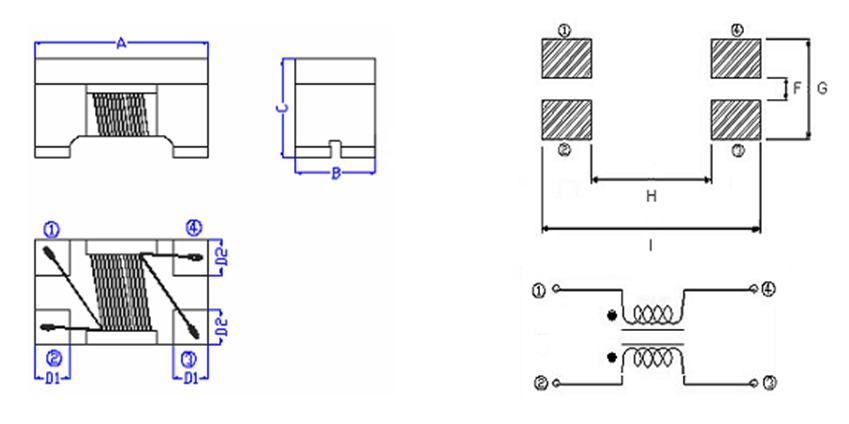

SHAPE AND DIMENSIONS:



SPECIFICATIONS:

TYPEImpedance (Ω)ABCD1D2FGHI
MCMC201267.0  ­­­­‑‑‑ 3702.00±0.201.20±0.201.20±0.200.450.400.401.200.802.60
MCMC321633.0  ­­­­‑‑‑ 22003.20±0.201.60±0.202.00±0.200.600.600.401.601.603.70
MCMC452560.0  ­­­­‑‑‑ 14004.80±0.202.80±0.202.20±0.200.750.751.052.953.506.00


  MCMC2012 Series
Part Number

Impedance
(Ω)
Test Freq.
(MHz)
DCR (W)
(max)
IDC (mA)
(max)

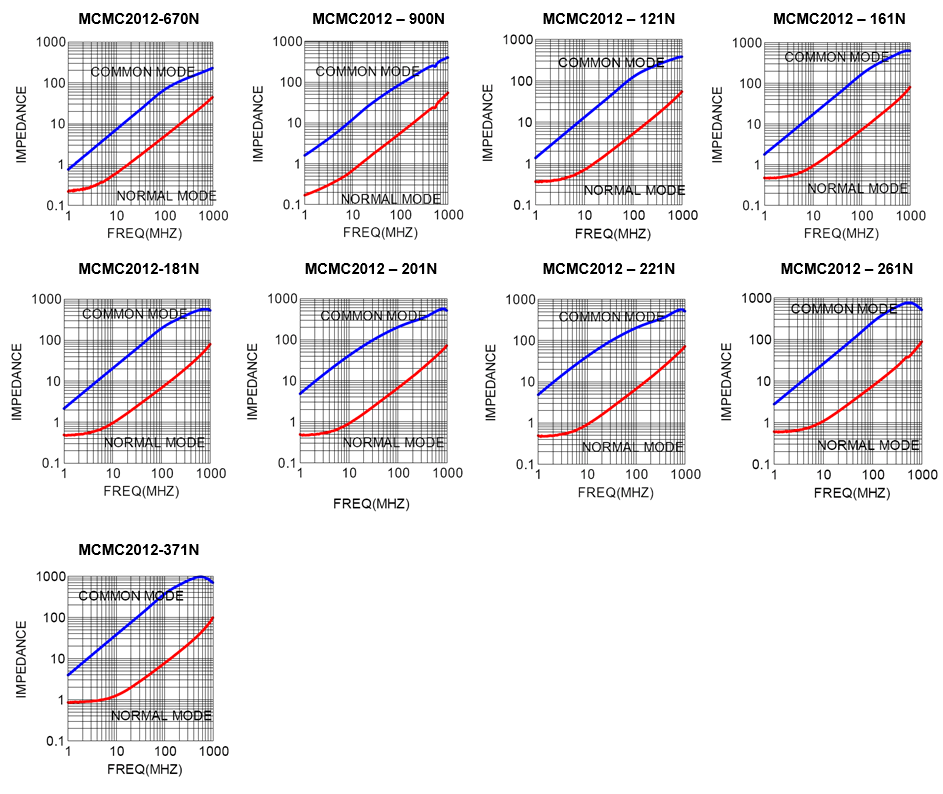

MCMC2012 – 670N671000.25400
MCMC2012 – 900N901000.30400
MCMC2012 – 121N1201000.30370
MCMC2012 – 161N1601000.35350
MCMC2012 – 181N1801000.35330
MCMC2012 – 201N2001000.40300
MCMC2012 – 221N2201000.40300
MCMC2012 – 261N2601000.40300
MCMC2012 – 371N3701000.45280





  MCMC3216 Series
Part Number

Impedance
(Ω)
Test Freq.
(MHz)
DCR (W)
(max)
IDC (mA)
(max)

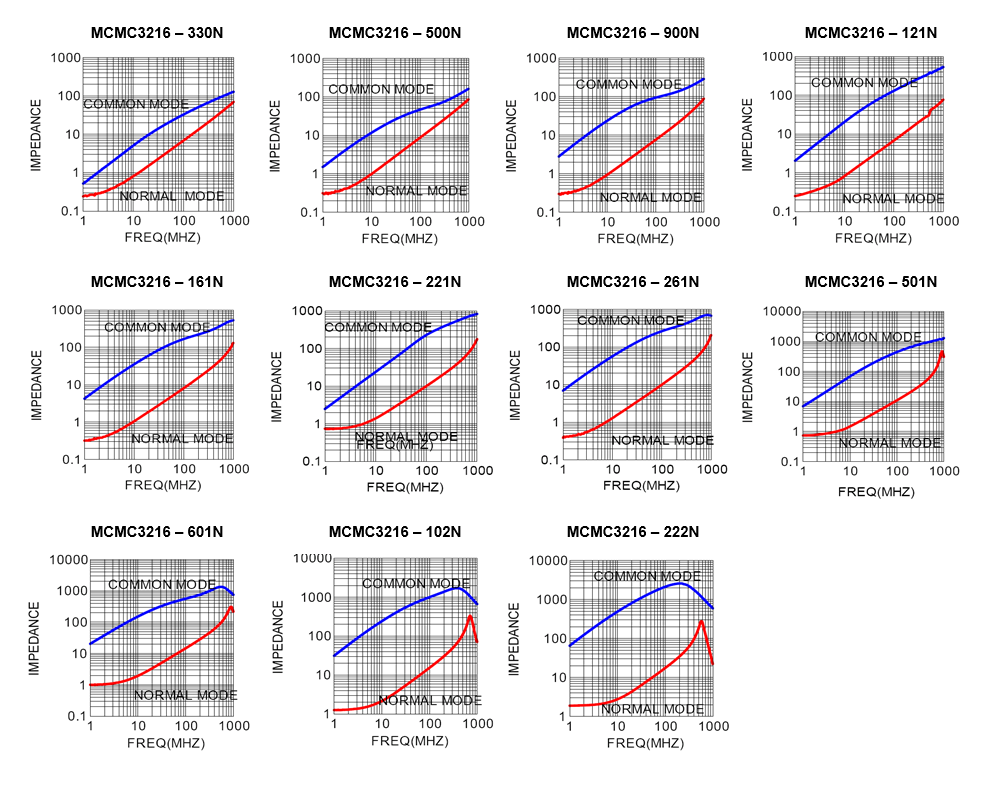

MCMC3216 – 330N331000.20400
MCMC3216 – 500N501000.25400
MCMC3216 – 900N901000.30400
MCMC3216 – 121N1201000.30400
MCMC3216 – 161N1601000.40350
MCMC3216 – 221N2201000.45300
MCMC3216 – 261N2601000.50310
MCMC3216 – 501N5001000.80260
MCMC3216 – 601N6001000.80260
MCMC3216 –102N10001001.00250
MCMC3216 – 222N22001001.20200




  MCMC4525 Series
Part Number

Impedance
(Ω)
Test Freq.
(MHz)
DCR (W)
(max)
IDC (mA)
(max)

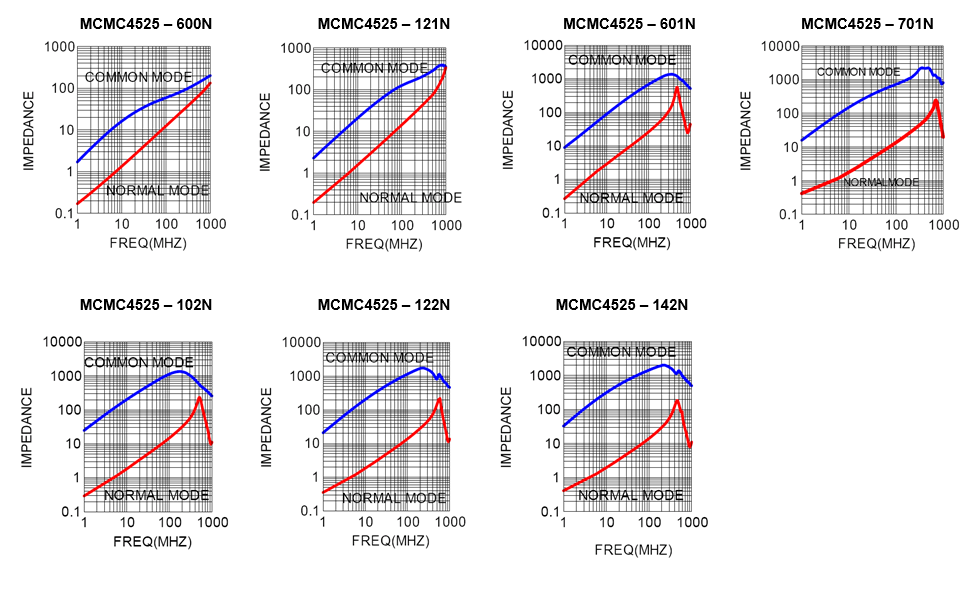

MCMC4525 – 600N601000.103000
MCMC4525 – 121N1201000.202000
MCMC4525 – 601N6001000.301500
MCMC4525 – 701N7001000.152000
MCMC4525 – 102N10001000.401000
MCMC4525 – 122N12001000.401000
MCMC4525 – 142N14001000.401000
