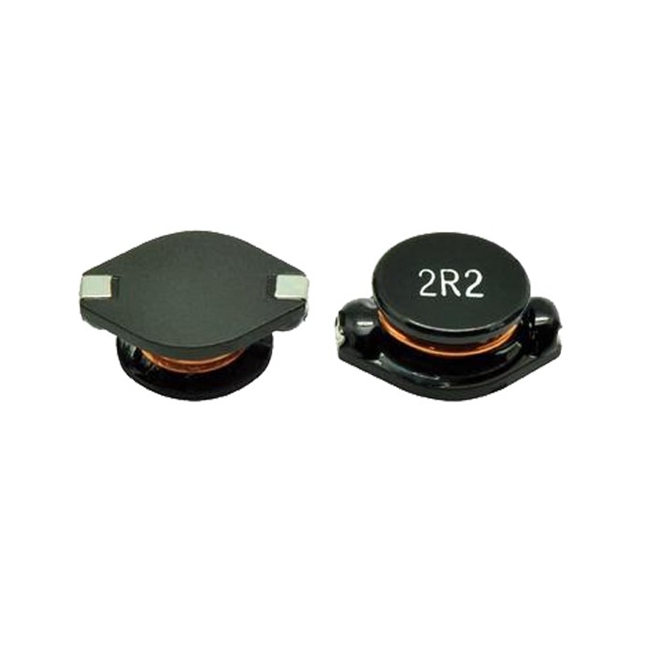

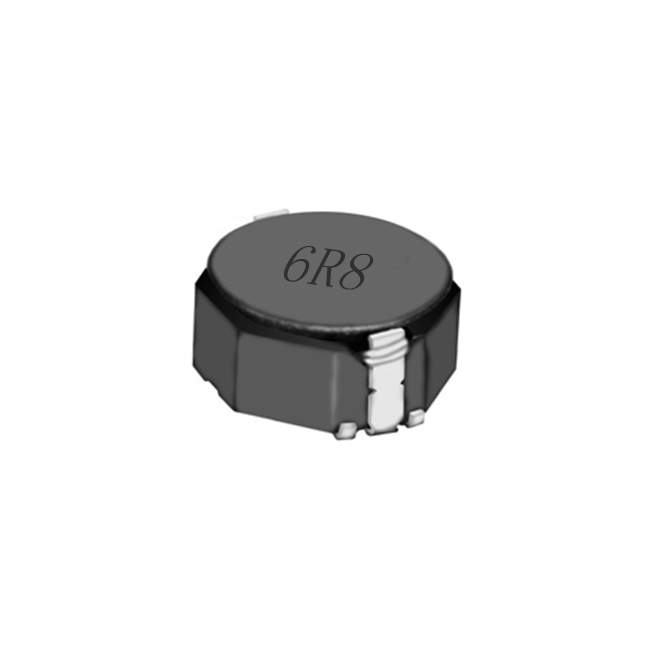

MTDB Series 4r7 SMD Power Inductors
FEATURES:
FEATURES:
• Compact and low profile.
• low DC resistance large current.
smt inductors,power inductors,unshielded power inductors,inductor coils,4r7 smd inductor,unshielded smd power inductors
• low DC resistance large current.
smt inductors,power inductors,unshielded power inductors,inductor coils,4r7 smd inductor,unshielded smd power inductors
APPLICATIONS:
• DC/DC converters, VTR, OA equipments, LCD TV, Mobile computers, Small size communication equipments etc.
SPECIFICATIONS:
• Operating Temperature: -30℃ to +80℃
• Operating Frequency: Up to 1MHz
• Inductance Drop=10% typ. at IDC
• Electrical Specifications at 20℃
• Operating Frequency: Up to 1MHz
• Inductance Drop=10% typ. at IDC
• Electrical Specifications at 20℃
SHAPE AND DIMENSIONS:
Unit: mm
| TYPE | L Range (μH) | A max | B max | C | D max | E | F | G | I | J | K |
| MTDB0402 | 1.0 ~ 1000 | 6.60 | 4.45 | 4.00 | 2.92 | 1.27 | 1.02 | 4.32 | 3.56 | 1.40 | 4.06 |
| MTDB0802 | 10.0 ~ 1000 | 12.95 | 9.40 | 8.38 | 3.00 | 2.54 | 2.54 | 7.62 | 2.79 | 2.92 | 7.37 |
| MTDB0804 | 1.0 ~ 1000 | 12.95 | 9.40 | 8.38 | 5.21 | 2.54 | 2.54 | 7.62 | 2.79 | 2.92 | 7.37 |
| MTDB0810 | 10.0 ~ 1000 | 12.95 | 9.40 | 8.38 | 11.43 | 2.54 | 2.54 | 7.62 | 2.79 | 2.92 | 7.37 |
| MTDB1306 | 1.0 ~ 1000 | 18.54 | 15.24 | 12.7 | 7.11 | 2.54 | 2.54 | 12.7 | 2.79 | 2.92 | 12.45 |
ELECTRICAL CHARACTERISTICS:
| MTDB0402 Series | ||||
| Part Number | Inductance | Test Freq. | DCR (W) | IDC (A) |
| (μH) | (KHz) | (max) | (max) | |
| MTDB0402 - 1R0M | 1.0 | 100 | 0.05 | 2.9 |
| MTDB0402 - 1R5M | 1.5 | 100 | 0.05 | 2.6 |
| MTDB0402 - 2R2M | 2.2 | 100 | 0.07 | 2.3 |
| MTDB0402 - 3R3M | 3.3 | 100 | 0.08 | 2.0 |
| MTDB0402 - 4R7M | 4.7 | 100 | 0.09 | 1.5 |
| MTDB0402 - 6R8M | 6.8 | 100 | 0.13 | 1.2 |
| MTDB0402 - 100M | 10 | 100 | 0.16 | 1.1 |
| MTDB0402 - 150M | 15 | 100 | 0.23 | 0.9 |
| MTDB0402 - 220M | 22 | 100 | 0.37 | 0.7 |
| MTDB0402 - 330M | 33 | 100 | 0.51 | 0.58 |
| MTDB0402 - 470M | 47 | 100 | 0.68 | 0.5 |
| MTDB0402 - 680M | 68 | 100 | 0.86 | 0.4 |
| MTDB0402 - 101M | 100 | 100 | 1.27 | 0.31 |
| MTDB0402 - 151M | 150 | 100 | 2.00 | 0.27 |
| MTDB0402 - 221M | 220 | 100 | 2.65 | 0.22 |
| MTDB0402 - 331M | 330 | 100 | 3.8 | 0.18 |
| MTDB0402 - 471M | 470 | 100 | 5.06 | 0.16 |
| MTDB0402 - 681M | 680 | 100 | 9.20 | 0.14 |
| MTDB0402 - 102M | 1000 | 100 | 13.8 | 0.10 |
| MTDB0802 Series |
| MTDB0804 Series |
| MTDB0810 Series |
| MTDB1306 Series |
