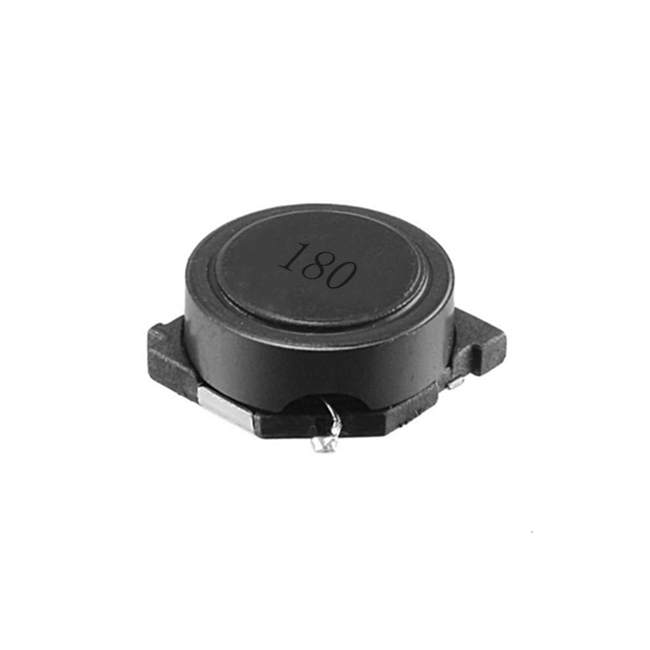

MTFC Series ferrite chip inductor

Model NO.
MTFC7630, MTFC7635, MTFC7641, MTFC7651
FEATURES:
•    Compact and low profile.
•    Magnetic shielded low DC resistance high current rating.
APPLICATIONS:
•    DC/DC converters for Portable equipments, AV equipments, Mobile computers, Small size communication equipments etc.
Quantity:
MTFC Series ferrite chip inductor choke coil Inductors

FEATURES:
•    Compact and low profile.
•    Magnetic shielded low DC resistance high current rating.

APPLICATIONS:
•    DC/DC converters for Portable equipments, AV equipments, Mobile computers, Small size communication equipments etc.

SPECIFICATIONS:
•    Operating Temperature: -30℃ to +80℃
•    Operating Frequency: Up to 1MHz
•    Inductance Drop=35% typ. at IDC
•    Electrical Specifications at 20℃


smt inductors,smd power inductors,shielded smd power inductors,smd inductors,inductors series,choke inductors,smt power inductors,unshielded smd power inductors,multilayer ferrite chip inductor,ferrite inductor,
 ​​​​​
SHAPE AND DIMENSIONS:



                                                                                                                                                                                    Unit: mm
TYPEL Range (μH) A maxB maxC maxEFGH
MTFC76301.2 ~ 1007.67.63.02.05.43.02.04.4
MTFC76351.0 ~ 1007.67.63.52.05.43.02.04.4
MTFC76414.7 ~ 4707.67.64.12.05.43.02.04.4
MTFC76511.0 ~ 5607.67.65.12.05.43.02.04.4
MTFC76811.5 ~ 3307.67.68.12.05.43.02.04.4

ELECTRICAL CHARACTERISTICS:

MTFC7630 Series
Part NumberInductanceTest Freq.DCR (W)IDC (A)
 (μH)(KHz)(max)(max)
MTFC7630 - 1R2M1.21000.022.73
MTFC7630 - 1R8M1.81000.022.26
MTFC7630 - 2R4M2.41000.031.91
MTFC7630 - 3R3M3.31000.031.68
MTFC7630 - 4R7M4.71000.041.28
MTFC7630 - 6R8M6.81000.051.06
MTFC7630 - 100M101000.081.04
MTFC7630 - 120M121000.100.84
MTFC7630 - 150M151000.110.77
MTFC7630 - 180M181000.130.67
MTFC7630 - 220M221000.180.62
MTFC7630 - 270M271000.20.57
MTFC7630 - 330M331000.260.51
MTFC7630 - 390M391000.300.46
MTFC7630 - 470M471000.410.45
MTFC7630 - 560M561000.430.37
MTFC7630 - 680M681000.500.35
MTFC7630 - 820M821000.720.32
MTFC7630 - 101M1001000.780.30

MTFC7635 Series

MTFC7641 Series



 Please coneact us for more about smt inductors,smd power inductors​​​​​​​,shielded smd power inductors,smd inductors,inductors series,choke inductors,smt power inductors,unshielded smd power inductors,multilayer ferrite chip inductor,ferrite inductor
