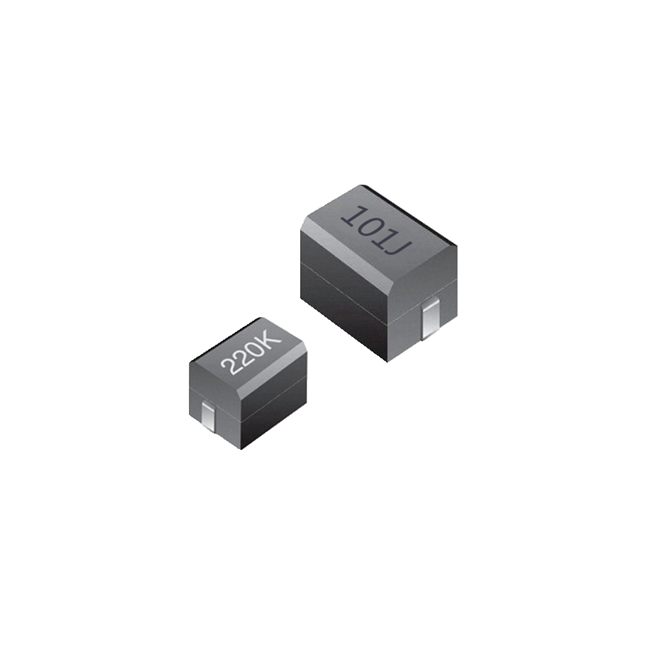

MTNL Series 4r7 smd inductor

Model NO.: MTNL322522, MTNL453232

FEATURES:
•   Compact and low profile.
•   High resistance to heat and humidity.
•   Resistant to mechanical shocks and pressures.
APPLICATIONS:
•   Communication Products, LCD TV, Video camera etc.

Quantity:

Product Description

MTNL Series 4r7 smd inductor choke coils

FEATURES:

•   Compact and low profile.
•   High resistance to heat and humidity.
•   Resistant to mechanical shocks and pressures.

APPLICATIONS:

• Communication Products, LCD TV, Video camera etc.

SPECIFICATIONS:

•   Operating Temperature: -30℃ to +80℃
•   Operating Frequency: Up to 1MHz
•   Inductance Drop=10% typ. at IDC
•   Electrical Specifications at 20℃

smd power inductors,unshielded smd power inductors,smd inductors,chip inductor smd inductor,smd inductor,inductor smd,4r7 smd inductor

SHAPE AND DIMENSIONS:

Unit: mm

TYPE	L Range (μH)	A	B	C	D	E	F	G	H
MTNL322522	0.12 ~ 220	3.2 ± 0.3	2.5 ± 0.2	2.2 ± 0.2	0.6	1.0	3.0	1.0	2.0
MTNL453232	0.10 ~ 1000	4.5 ± 0.3	3.2 ± 0.2	3.2 ± 0.2	1.0	1.2	4.0	1.5	3.0
MTNL565050	1.0 ~ 10000	5.6 ± 0.3	5.0 ± 0.3	5.0 ± 0.3	1.0	2.0	4.5	2.0	4.0

ELECTRICAL CHARACTERISTICS:

MTNL322522 Series
Part Number	Inductance	Q	Test Freq.	DCR (W)	SRF(MHz)	IDC (mA)
	(μH)	(min)	(MHz)	(REF.)	(min)	(max)
MTNL322522 - R12M	0.12	30	25.2	0.22	500	450
MTNL322522 - R15M	0.15	30	25.2	0.25	450	450
MTNL322522 - R18M	0.18	30	25.2	0.28	400	450
MTNL322522 - R22M	0.22	30	25.2	0.32	350	450
MTNL322522 - R27M	0.27	30	25.2	0.36	320	450
MTNL322522 - R33M	0.33	30	25.2	0.4	300	450
MTNL322522 - R39M	0.39	30	25.2	0.45	250	450
MTNL322522 - R47M	0.47	30	25.2	0.5	220	450
MTNL322522 - R56M	0.56	30	25.2	0.55	180	450
MTNL322522 - R68M	0.68	30	25.2	0.6	160	450
MTNL322522 - R82M	0.82	30	25.2	0.65	140	450
MTNL322522 - 1R0M	1.0	30	7.96	0.7	120	400
MTNL322522 - 1R2M	1.2	30	7.96	0.75	100	390
MTNL322522 - 1R5M	1.5	30	7.96	0.85	85	370
MTNL322522 - 1R8M	1.8	30	7.96	0.9	80	350
MTNL322522 - 2R2M	2.2	30	7.96	1.0	75	320
MTNL322522 - 2R7M	2.7	30	7.96	1.1	70	290
MTNL322522 - 3R3K	3.3	30	7.96	1.2	60	260
MTNL322522 - 3R9K	3.9	30	7.96	1.3	55	250
MTNL322522 - 4R7K	4.7	30	7.96	1.5	50	220
MTNL322522 - 5R6K	5.6	30	7.96	1.6	47	200
MTNL322522 - 6R8K	6.8	30	7.96	1.8	43	180
MTNL322522 - 8R2K	8.2	30	7.96	2.0	40	170
MTNL322522 - 100K	10	30	25.2	2.1	36	150
MTNL322522 - 120K	12	30	2.52	2.5	33	140
MTNL322522 - 150K	15	30	2.52	2.8	28	130
MTNL322522 - 180K	18	30	2.52	3.3	25	120
MTNL322522 - 220K	22	30	2.52	3.7	23	110
MTNL322522 - 270K	27	30	2.52	5.0	18	80
MTNL322522 - 330K	33	30	2.52	5.6	17	70
MTNL322522 - 390K	39	30	2.52	6.4	16	65
MTNL322522 - 470K	47	30	2.52	7	15	60
MTNL322522 - 560K	56	30	2.52	8	13	55
MTNL322522 - 680K	68	30	2.52	9	12	50
MTNL322522 - 820K	82	30	2.52	10	11	45
MTNL322522 - 101K	100	20	0.796	11	10	40
MTNL322522 - 121K	120	20	0.796	12	10	70
MTNL322522 - 151K	150	20	0.796	15	8	65
MTNL322522 - 181K	180	20	0.796	17	7	60
MTNL322522 - 221K	220	20	0.796	21	7	50

MTNL453232 Series

MTNL565050 Series
