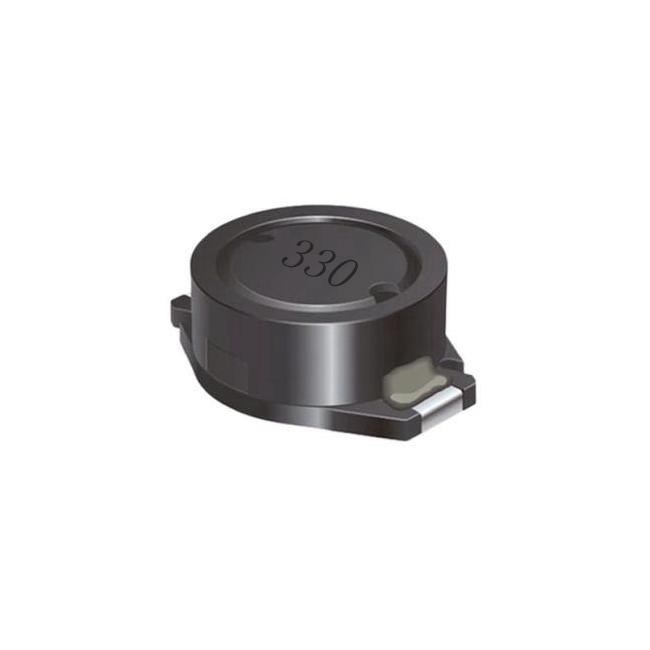

MTDC Series 33uh smd unshielded power inductor

Model NO.
MTDC0402, MTDC0804, MTDC1306
FEATURES:
•    Compact and low profile.
•    Magnetic shielded low DC resistance high current rating.
APPLICATIONS:
•    DC/DC converters for Portable equipments, AV equipments, Mobile computers, Small size communication equipments etc.
Quantity:
MTDC Series 33uh  smd unshielded power inductor choke coils

FEATURES:
•    Compact and low profile.
•    Magnetic shielded low DC resistance high current rating.

APPLICATIONS:
•    DC/DC converters for Portable equipments, AV equipments, Mobile computers, Small size communication equipments etc.

SPECIFICATIONS:
•    Operating Temperature: -30℃ to +80℃
•    Operating Frequency: Up to 1MHz
•    Inductance Drop=35% typ. at IDC
•    Electrical Specifications at 20℃

        smt inductors,shielded smd power inductors,inductors series,shielded smd inductors,smd inductors​​​​​​​,unshielded inductor,unshielded smd power inductors,power inductor 33uh


SHAPE AND DIMENSIONS:


                                                                                                                                                                                    Unit: mm
TYPEL Range (μH) A maxB maxD maxEFGIJK
MTDC04021.0 ~ 100006.64.454.02.921.271.024.323.561.44.06
MTDC08041.0 ~ 100012.959.48.385.082.542.547.622.792.927.37
MTDC130610.0 ~ 100018.5415.2412.77.622.542.5412.72.792.9212.45

ELECTRICAL CHARACTERISTICS:

MTDC0402 Series
Part NumberInductanceTest Freq.DCR (W)IDC (A)
 (μH)(KHz)(max)(max)
MTDC0402 - 1R0M1.01000.043.0
MTDC0402 - 1R5M1.51000.0452.8
MTDC0402 - 2R2M2.21000.051.8
MTDC0402 - 3R3M3.31000.0551.6
MTDC0402 - 4R7M4.71000.061.4
MTDC0402 - 6R8M6.81000.0651.2
MTDC0402 - 100M101000.0751.0
MTDC0402 - 150M151000.090.8
MTDC0402 - 220M221000.110.7
MTDC0402 - 330M331000.190.6
MTDC0402 - 470M471000.230.5
MTDC0402 - 680M681000.290.4
MTDC0402 - 101M1001000.480.3
MTDC0402 - 151M1501000.590.26
MTDC0402 - 221M2201000.770.22
MTDC0402 - 331M3301001.40.2
MTDC0402 - 471M4701001.80.19
MTDC0402 - 681M6801002.20.18
MTDC0402 - 102M10001003.40.15
MTDC0402 - 152M15001004.20.12
MTDC0402 - 222M22001008.50.10
MTDC0402 - 332M3300100110.08
MTDC0402 - 472M470010013.90.06
MTDC0402 - 682M6800100250.04
MTDC0402 - 103M1000010032.80.02

MTDC0804 Series

MTDC1306 Series

Please coneact us for more about​​​​​​​ smt inductors​​​​​​, shielded smd power inductors, inductors series, shielded smd inductors​​​​​​​, smd inductors​​​​​​​, unshielded inductor, unshielded smd power inductors, power inductor 33uh
