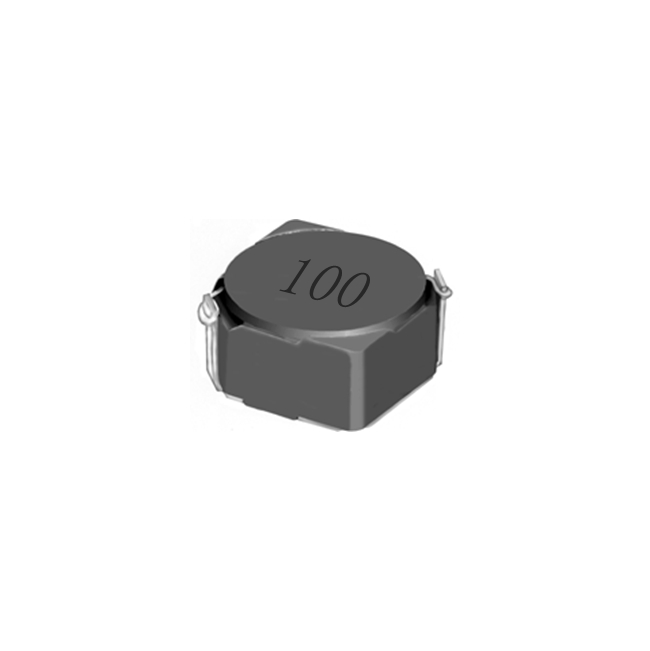

MTRW Series high current power inductors

Model NO.
MTRW4D18, MTRW4D28, MTRW5D18, MTRW5D28, MTRW6D28, MTRW6D38
FEATURES:
•    Compact and low profile.
•    Magnetic shielded low DC resistance high current rating.
APPLICATIONS:
•    DC/DC converters for Portable equipments, AV equipments, Mobile computers, Small size communication equipments etc.
Quantity:
MTRW Series high current power inductors choke coils


FEATURES:
•    Compact and low profile.
•    Magnetic shielded low DC resistance high current rating.

APPLICATIONS:
•    DC/DC converters for Portable equipments, AV equipments, Mobile computers, Small size communication equipments etc.

SPECIFICATIONS:
•    Operating Temperature: -30℃ to +80℃
•    Operating Frequency: Up to 1MHz
•    Inductance Drop=35% typ. at IDC
•    Electrical Specifications at 20℃

smt inductors,smd power inductors,unshielded smd power inductors,inductor choke,shielded inductors,smd inductors,inductors series

SHAPE AND DIMENSIONS:



                                                                                                                                                                                    Unit: mm
TYPEL Range (μH) ABC maxD maxEFGHI
 ± 0.3 ± 0.3
MTRW4D181.0 ~ 1804.74.72.06.91.54.55.31.91.5
MTRW4D281.2 ~ 3904.74.73.06.91.54.55.31.91.5
MTRW5D184.1 ~ 3305.75.72.08.22.05.56.32.152.0
MTRW5D281.0 ~ 6805.75.73.08.22.05.56.32.152.0
MTRW6D283.0 ~ 6806.76.73.09.52.06.57.32.652.0
MTRW6D383.3 ~ 10006.76.74.09.52.06.57.32.652.0

ELECTRICAL CHARACTERISTICS:

MTRW4D18 Series
Part NumberInductanceTest Freq.DCR (W)IDC (A)
 (μH)(KHz)(max)(max)
MTRW4D18 - 1R0N1.01000.0451.72
MTRW4D18 - 2R2N2.21000.0751.32
MTRW4D18 - 2R7N2.71000.1051.28
MTRW4D18 - 3R3N3.31000.111.04
MTRW4D18 - 3R9N3.91000.1550.88
MTRW4D18 - 4R7N4.71000.1620.84
MTRW4D18 - 5R6N5.61000.170.80
MTRW4D18 - 6R8N6.81000.200.76
MTRW4D18 - 8R2N8.21000.2450.68
MTRW4D18 - 100M101000.200.61
MTRW4D18 - 120M121000.210.56
MTRW4D18 - 150M151000.240.50
MTRW4D18 - 180M181000.3380.48
MTRW4D18 - 220M221000.3970.41
MTRW4D18 - 270M271000.4410.35
MTRW4D18 - 330M331000.6940.32
MTRW4D18 - 390M391000.7090.30
MTRW4D18 - 470M471000.9220.28
MTRW4D18 - 560M561001.080.26
MTRW4D18 - 680M681001.300.24
MTRW4D18 - 820M821001.560.22
MTRW4D18 - 101M1001001.730.20
MTRW4D18 - 121M1201002.390.18
MTRW4D18 - 151M1501002.670.15
MTRW4D18 - 181M1801004.00.14

MTRW4D28 Series

MTRW5D18 Series

MTRW5D28 Series

MTRW6D28 Series

MTR6D38 Series


Please coneact us for more about smt inductors,smd power inductors,unshielded smd power inductors,inductor choke,shielded inductors,smd inductors,inductors series
