MGZ1005, MGZ1608

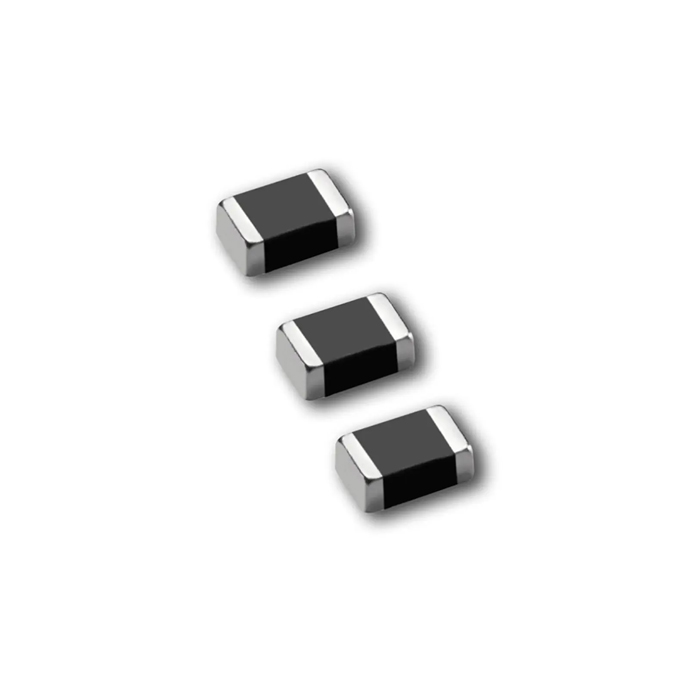

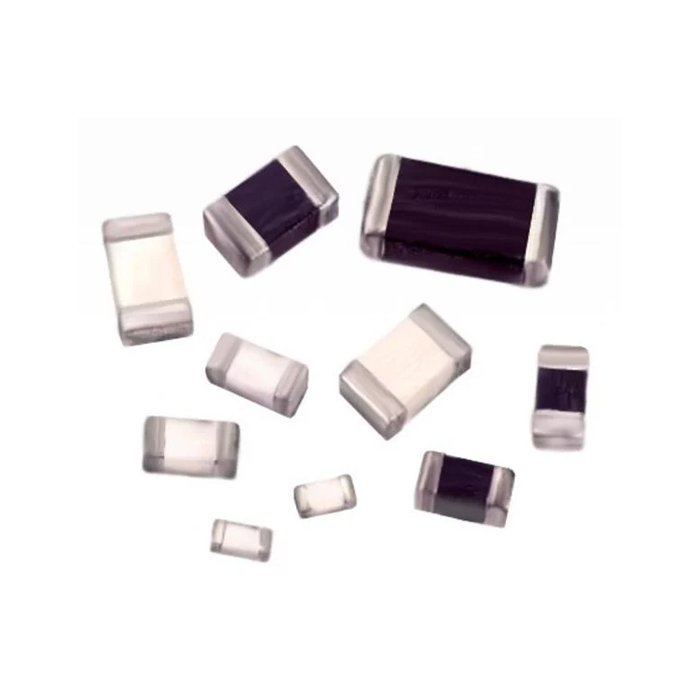

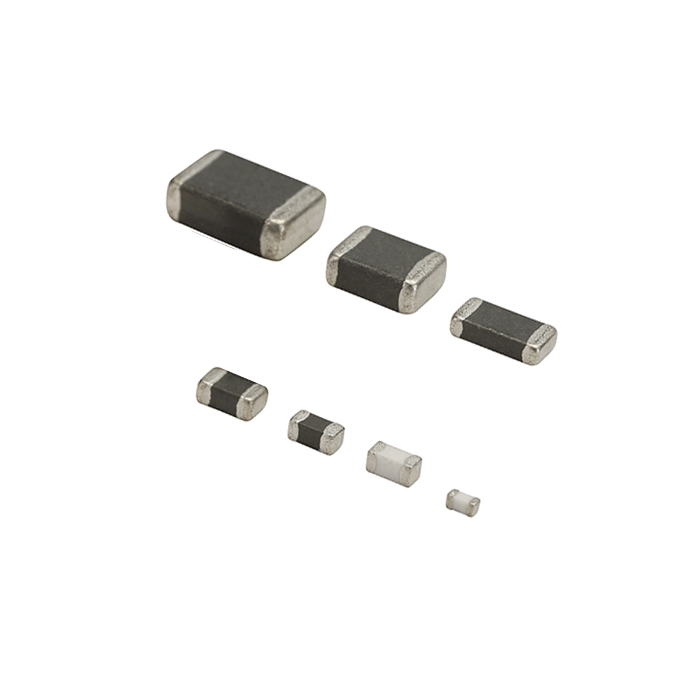

MGZ Series multilayer chip inductor
FEATURES:
MGZ Series multilayer chip inductor
FEATURES:
* Internal silver printed layers and magnetic shielded structures to minimize crosstalk
* Can be used in a wide range of frequency (from dozens of MHz to hundreds of MHz) to suppress EMI
* Smaller DC resistance and large rate current
* Can be used in a wide range of frequency (from dozens of MHz to hundreds of MHz) to suppress EMI
* Smaller DC resistance and large rate current
APPLICATIONS:
* Noise suppression for low speed signal of electric equipments
* Such as computers and peripheral devices, DVD cameras,
* LCD TVs, communication equipments, OA equipments, etc.
* Such as computers and peripheral devices, DVD cameras,
* LCD TVs, communication equipments, OA equipments, etc.
GENERAL SPECIFICATIONS:
* Operating temperature: -40 °C to +125 °C.
* Storage Temperature: -40 °C to +125 °C.
* Electrical specifications at 25 °C.
* Resistance to Soldering Heat: +260 °C.
multilayer chip ferrite bead,multilayer ferrite chip inductors, multilayer chip ferrite inductors, multilayer ferrite chip inductor,multilayer ferrite chip beads, Chip Bead Suppliers, chip inductor smd inductor
* Storage Temperature: -40 °C to +125 °C.
* Electrical specifications at 25 °C.
* Resistance to Soldering Heat: +260 °C.
multilayer chip ferrite bead,multilayer ferrite chip inductors, multilayer chip ferrite inductors, multilayer ferrite chip inductor,multilayer ferrite chip beads, Chip Bead Suppliers, chip inductor smd inductor

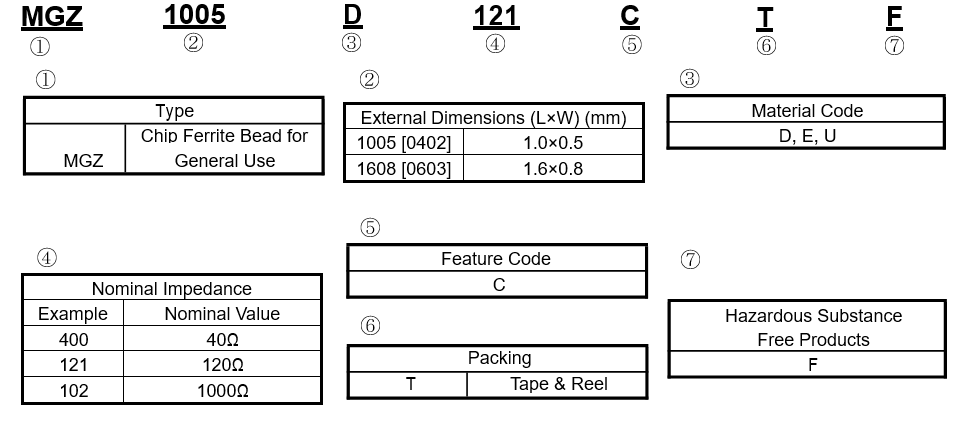

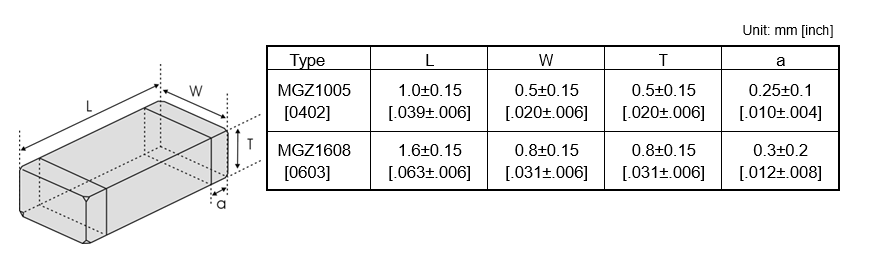

SHAPE AND DIMENSIONS:
SHAPE AND DIMENSIONS:
SHAPE AND DIMENSIONS:
ELECTRICAL CHARACTERISTICS:

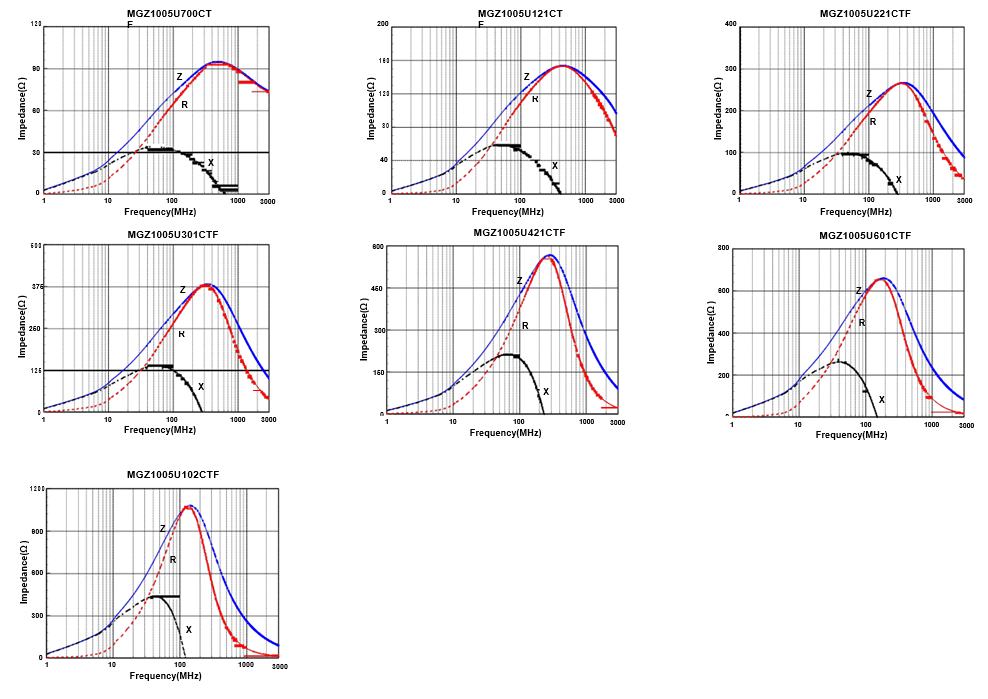

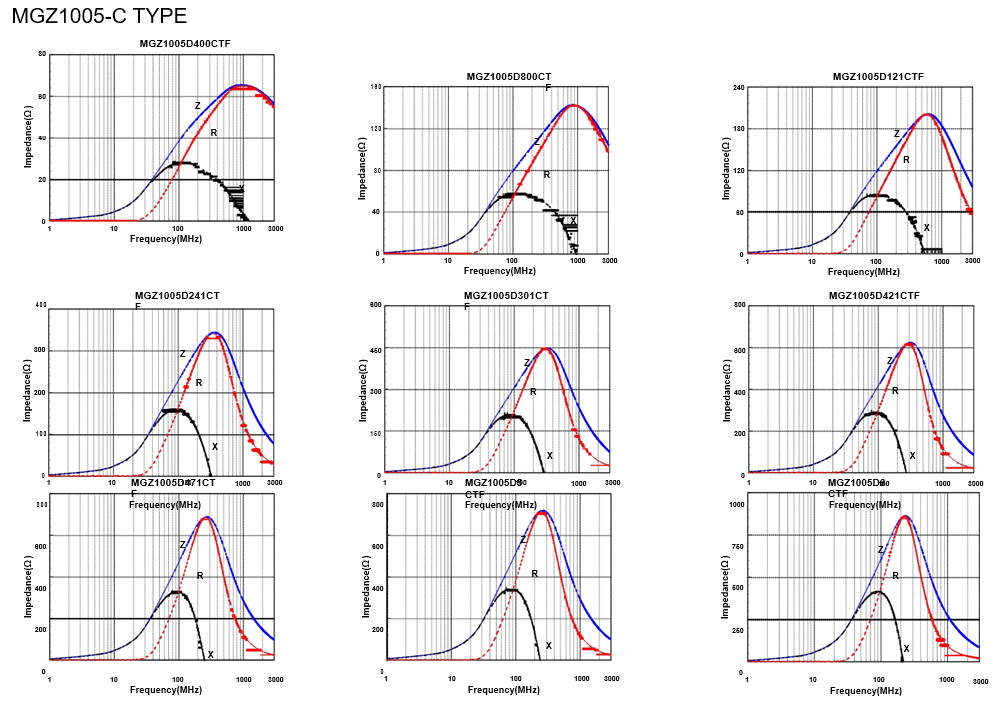

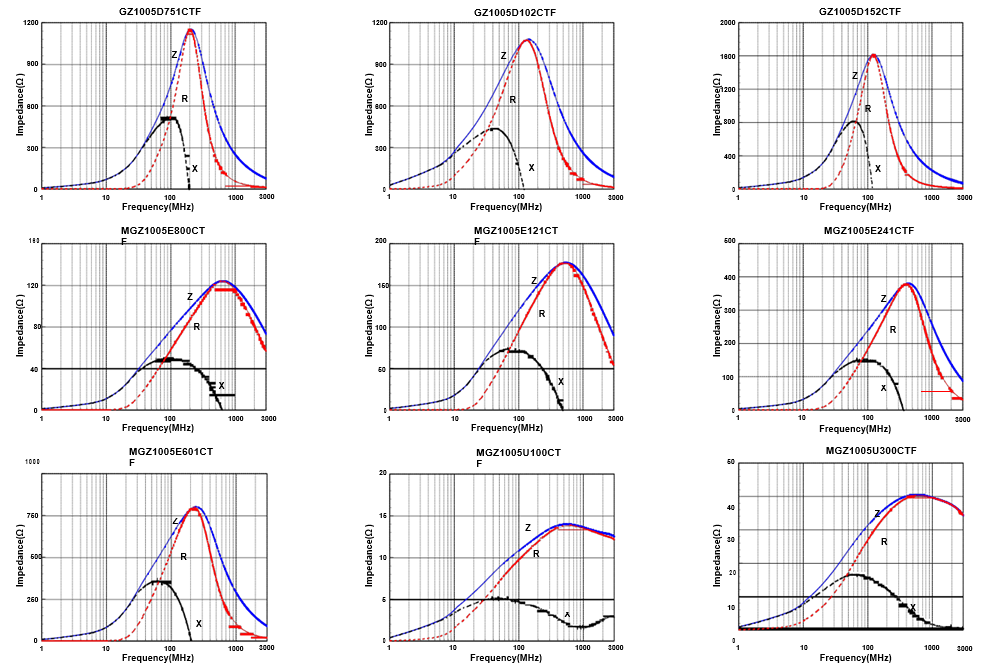

MGZ1005-C TYPE

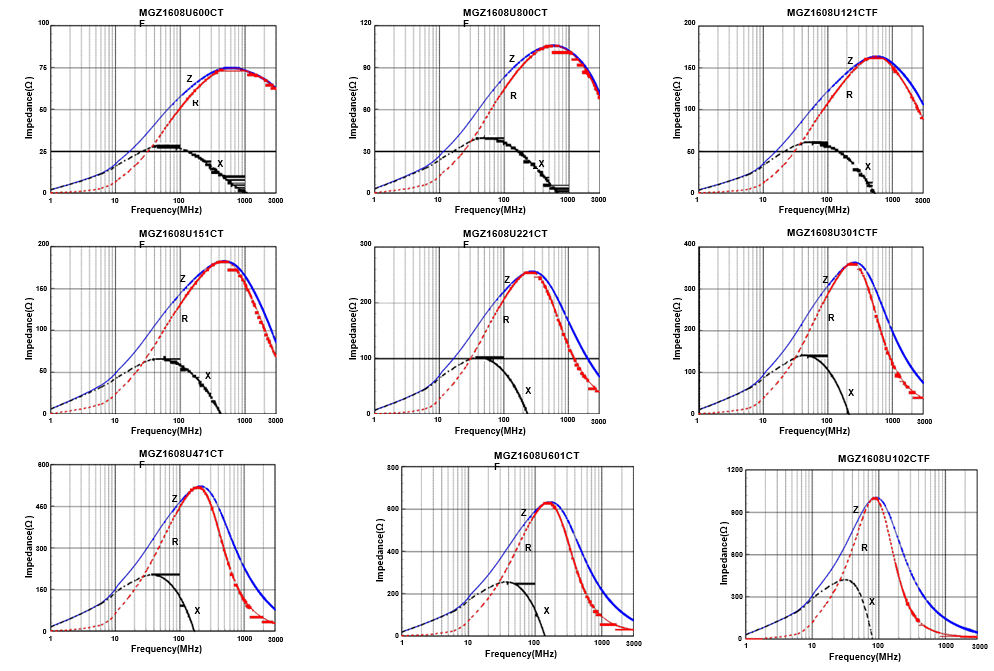

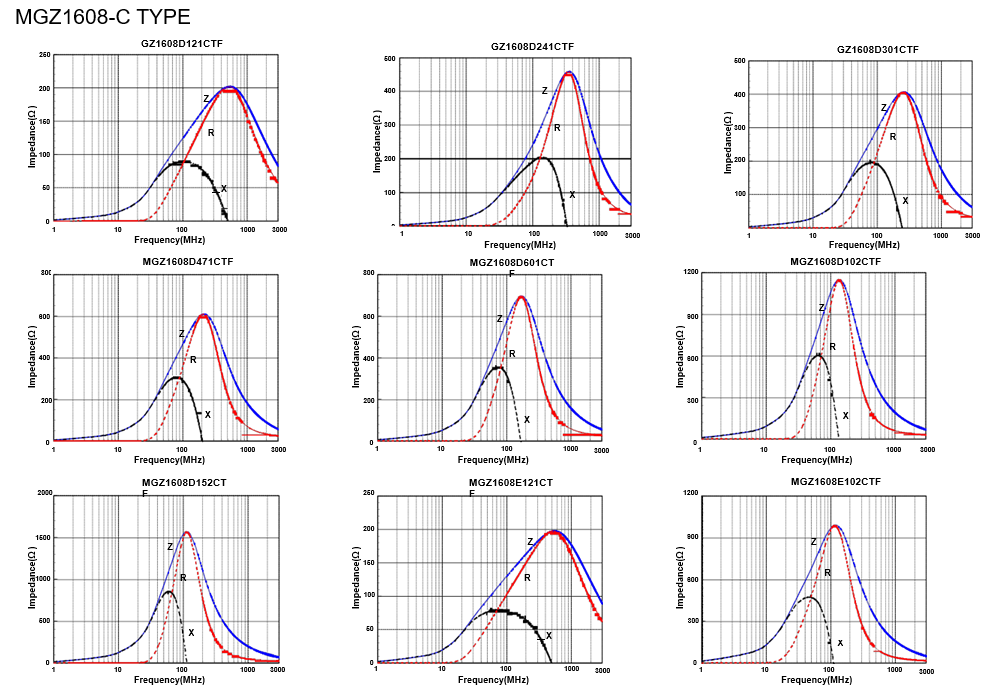

MGZ1608-C TYPE
* If you have more needs, please send us an inquiry, thank you!
MGZ1005-C TYPE
| Part Number | Impedance | ZTest Frequency | Max.DCResistance | Max.RatedCurrent | Thickness |
| Units | Ω | MHz | Ω | mA | mm [inch] |
| Symbol | Z | Freq. | DCR | Ir | T |
| MGZ1005D400CTF | 40±25% | 100 | 0.12 | 550 | 0.5±0.15 [.020±.006] |
| MGZ1005D800CTF | 80±25% | 100 | 0.16 | 450 | |
| MGZ1005D121CTF | 120±25% | 100 | 0.18 | 400 | |
| MGZ1005D241CTF | 240±25% | 100 | 0.30 | 300 | |
| MGZ1005D301CTF | 300±25% | 100 | 0.38 | 250 | |
| MGZ1005D421CTF | 420±25% | 100 | 0.45 | 250 | |
| MGZ1005D471CTF | 470±25% | 100 | 0.45 | 250 | |
| MGZ1005D501CTF | 500±25% | 100 | 0.50 | 250 | |
| MGZ1005D601CTF | 600±25% | 100 | 0.50 | 250 | |
| MGZ1005D751CTF | 750±25% | 100 | 0.65 | 150 | |
| MGZ1005D102CTF | 1000±25% | 100 | 0.70 | 150 | |
| MGZ1005D152CTF | 1500±25% | 100 | 1.15 | 100 | |
| MGZ1005E800CTF | 80±25% | 100 | 0.20 | 500 | |
| MGZ1005E121CTF | 120±25% | 100 | 0.25 | 500 | |
| MGZ1005E241CTF | 240±25% | 100 | 0.40 | 400 | |
| MGZ1005E601CTF | 600±25% | 100 | 0.60 | 300 | |
| MGZ1005U100CTF | 10±25% | 100 | 0.03 | 1000 | |
| MGZ1005U300CTF | 30±25% | 100 | 0.06 | 700 | |
| MGZ1005U700CTF | 70±25% | 100 | 0.10 | 700 | |
| MGZ1005U121CTF | 120±25% | 100 | 0.20 | 500 | |
| MGZ1005U221CTF | 220±25% | 100 | 0.30 | 400 | |
| MGZ1005U301CTF | 300±25% | 100 | 0.50 | 300 | |
| MGZ1005U421CTF | 420±25% | 100 | 0.52 | 300 | |
| MGZ1005U601CTF | 600±25% | 100 | 0.55 | 300 | |
| MGZ1005U102CTF | 1000±25% | 100 | 0.58 | 300 |
MGZ1608-C TYPE
| Part Number | Impedance | ZTest Frequency | Max.DCResistance | Max.RatedCurrent | Thickness |
| Units | Ω | MHz | Ω | mA | mm [inch] |
| Symbol | Z | Freq. | DCR | Ir | T |
| MGZ1608D121CTF | 120±25% | 100 | 0.20 | 500 | 0.8±0.15 [.031±.006] |
| MGZ1608D241CTF | 240±25% | 100 | 0.30 | 500 | |
| MGZ1608D301CTF | 300±25% | 100 | 0.35 | 500 | |
| MGZ1608D471CTF | 470±25% | 100 | 0.40 | 500 | |
| MGZ1608D601CTF | 600±25% | 100 | 0.40 | 500 | |
| MGZ1608D102CTF | 1000±25% | 100 | 0.50 | 400 | |
| MGZ1608D152CTF | 1500±25% | 100 | 0.60 | 300 | |
| MGZ1608E121CTF | 120±25% | 100 | 0.20 | 500 | |
| MGZ1608E102CTF | 1000±25% | 100 | 0.50 | 400 | |
| MGZ1608U600CTF | 60±25% | 100 | 0.10 | 800 | |
| MGZ1608U800CTF | 80±25% | 100 | 0.10 | 600 | |
| MGZ1608U121CTF | 120±25% | 100 | 0.18 | 500 | |
| MGZ1608U151CTF | 150±25% | 100 | 0.25 | 500 | |
| MGZ1608U221CTF | 220±25% | 100 | 0.25 | 500 | |
| MGZ1608U301CTF | 300±25% | 100 | 0.25 | 500 | |
| MGZ1608U471CTF | 470±25% | 100 | 0.35 | 500 | |
| MGZ1608U601CTF | 600±25% | 100 | 0.38 | 500 | |
| MGZ1608U102CTF | 1000±25% | 100 | 0.50 | 400 |
Please coneact us for more about multilayer chip ferrite bead,multilayer ferrite chip inductors, multilayer chip ferrite inductors,
multilayer ferrite chip inductor,multilayer ferrite chip beads,Chip Bead Suppliers, chip inductor smd inductor etc.
* If you have more needs, please send us an inquiry, thank you!
