MPZ Series Multilayer Chip Ferrite Bead

Model NO.
MPZ1005, MPZ1608, MPZ2012
FEATURES:​​​​​​​
* Internal silver printed layers and magnetic shielded structures to minimize crosstalk
* Monolithic structure for excellent reliability
* Smaller DC resistance and large rate current
* Can be used in a wide range of frequency to suppress EMI
APPLICATIONS:
* Noise suppression for power lines or large current signal lines of electric equipments
* Such as communication equipments, computers
* A/V equipments, auto electronics, and etc
Quantity:


MPZ1005 (0402), MPZ1608 (0603), MPZ2012 (0805)
MGZ Series Multilayer Chip Ferrite Bead

FEATURES:


* Internal silver printed layers and magnetic shielded structures to minimize crosstalk
* Monolithic structure for excellent reliability
* Smaller DC resistance and large rate current
* Can be used in a wide range of frequency to suppress EMI

APPLICATIONS:

* Noise suppression for power lines or large current signal lines of electric equipments
* Such as communication equipments, computers
* A/V equipments, auto electronics, and etc

GENERAL SPECIFICATIONS:
* Operating temperature: -40 °C to +125 °C.
* Storage Temperature: -40 °C to +125 °C.
* Electrical specifications at 25 °C.
* Resistance to Soldering Heat: +260 °C.

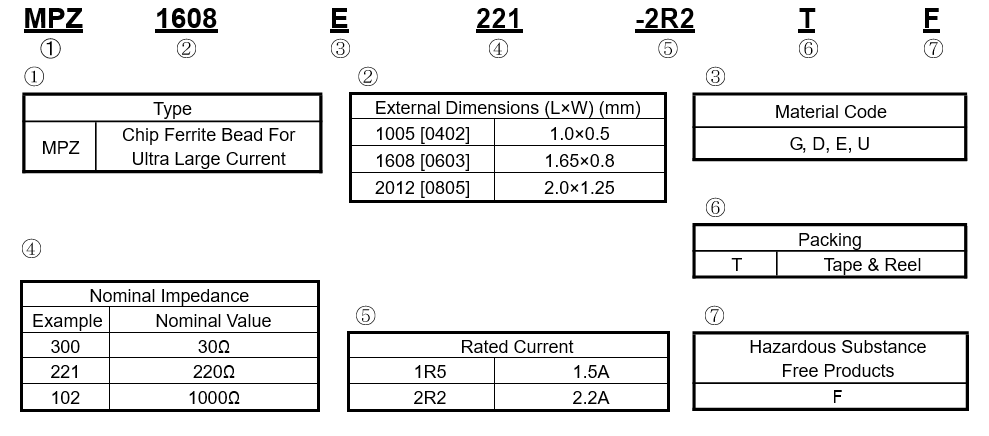

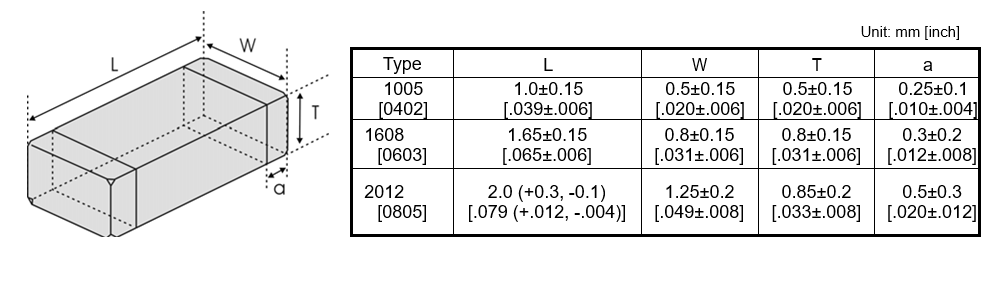

SHAPE AND DIMENSIONS:



SHAPE AND DIMENSIONS:

ELECTRICAL CHARACTERISTICS:

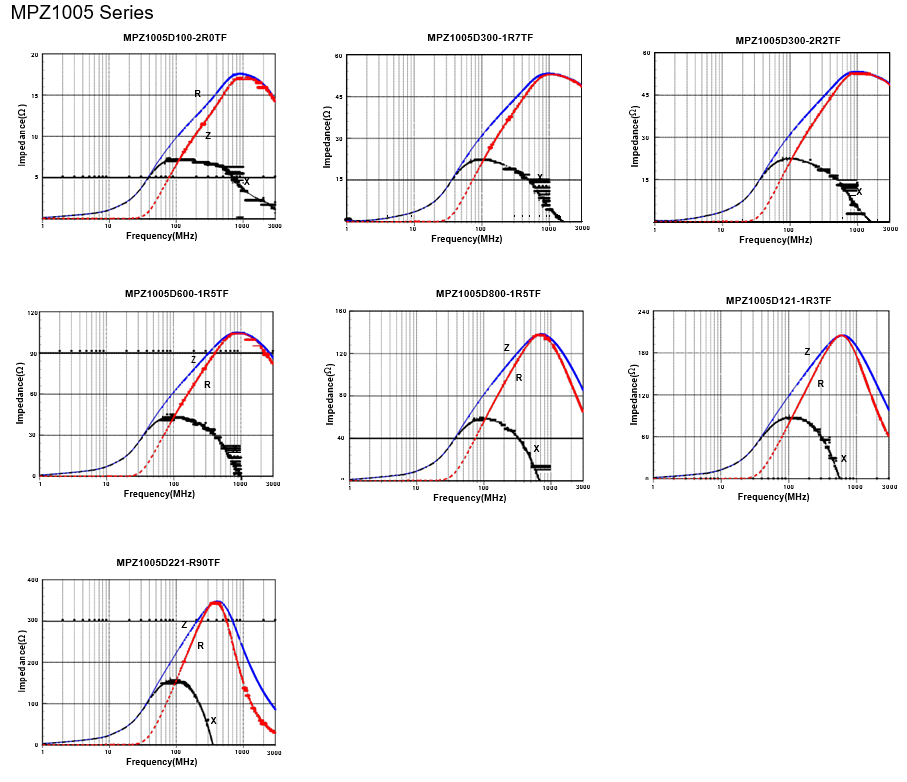

   MPZ1005 TYPE (0402)
Part NumberImpedanceZTest FrequencyMax.DCResistanceMax.RatedCurrentThickness
UnitsΩMHzmAmm [inch]
SymbolZFreq.DCRIrT
MPZ1005D100-2R0TF0~30100452000


0.5±0.15 [.020±.006]
MPZ1005D300-1R7TF30±25%100501700
MPZ1005D300-2R2TF30±25%100352200
MPZ1005D600-1R5TF60±25%100751500
MPZ1005D800-1R5TF80±25%100701500
MPZ1005D121-1R3TF120±25%100901300
MPZ1005D221-R90TF220±25%100160900

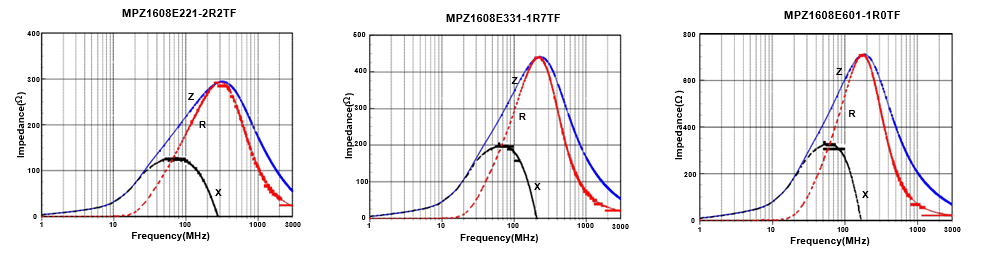

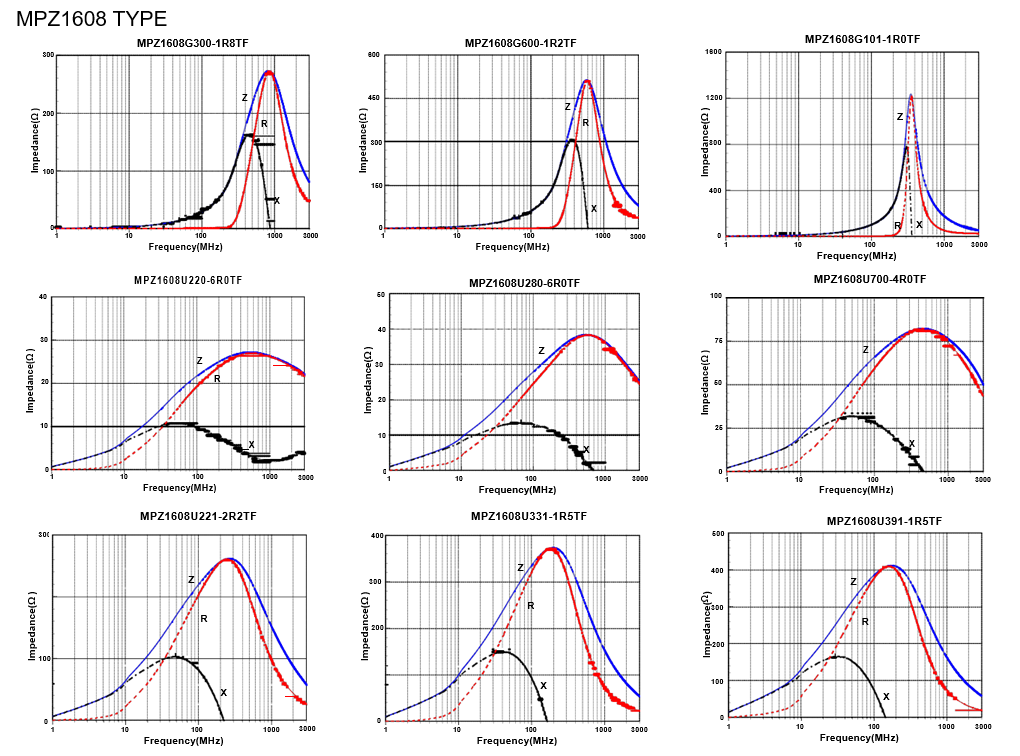

   MPZ1608 TYPE (0603)
Part NumberImpedanceZTest FrequencyMax.DCResistanceMax.RatedCurrentThickness
UnitsΩMHzmAmm [inch]
SymbolZFreq.DCRIrT

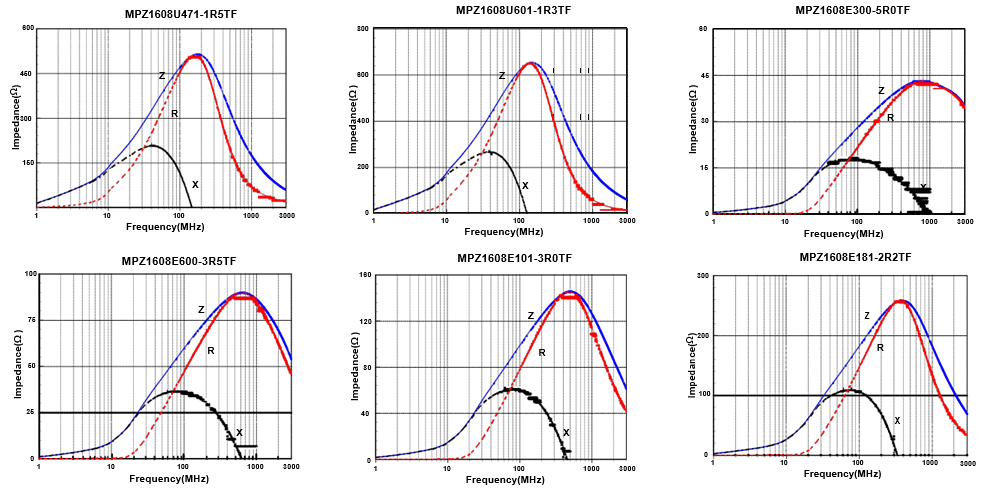

MPZ1608G300-1R8TF30±25%100601800










0.8±0.15 [.031±.006]
MPZ1608G600-1R2TF60±25%1001001200
MPZ1608G101-1R0TF100±25%1001501000
MPZ1608U220-6R0TF22±25%100106000
MPZ1608U280-6R0TF28±25%100106000
MPZ1608U700-4R0TF70±25%100204000
MPZ1608U221-2R2TF220±25%100502200
MPZ1608U331-1R5TF330±25%100701500
MPZ1608U391-1R5TF390±25%1001201500
MPZ1608U471-1R5TF470±25%1001201500
MPZ1608U601-1R3TF600±25%1001501300
MPZ1608E300-5R0TF30±25%100105000
MPZ1608E600-3R5TF60±25%100203500
MPZ1608E101-3R0TF100±25%100303000
MPZ1608E181-2R2TF180±25%100502200
MPZ1608E221-2R2TF220±25%100502200
MPZ1608E331-1R7TF330±25%100801700
MPZ1608E601-1R0TF600±25%1001501000
MPZ1608W260-6R0TF26±25%10076000

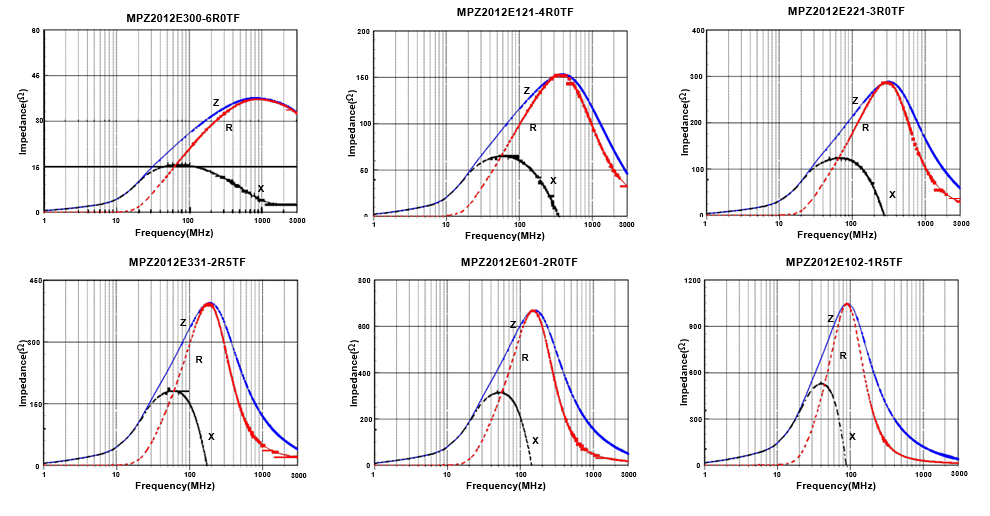

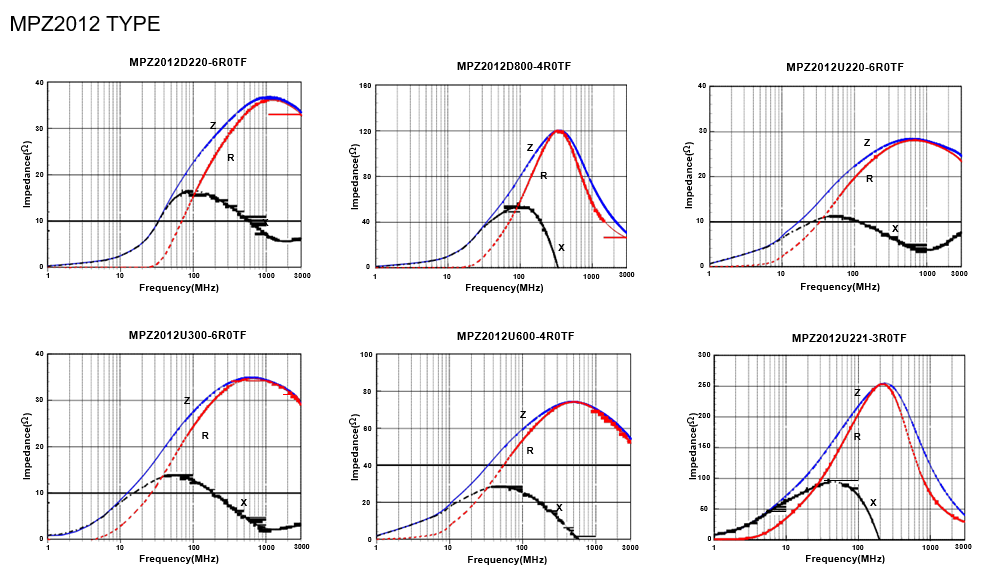

  MPZ2012 TYPE (0805)
Part NumberImpedanceZTest FrequencyMax.DCResistanceMax.RatedCurrentThickness
UnitsΩMHzmAmm [inch]
SymbolZFreq.DCRIrT
MPZ2012D220-6R0TF22±25%100106000






0.85±0.2 [.033±.008]
MPZ2012D800-4R0TF80±25%100204000
MPZ2012U220-6R0TF22±25%100106000
MPZ2012U300-6R0TF30±25%100106000
MPZ2012U600-4R0TF60±25%100204000
MPZ2012U221-3R0TF220±25%100403000
MPZ2012E300-6R0TF30±25%100106000
MPZ2012E121-4R0TF120±25%100204000
MPZ2012E221-3R0TF220±25%100403000
MPZ2012E331-2R5TF330±25%100502500
MPZ2012E601-2R0TF600±25%100902000
MPZ2012E102-1R5TF10025%1001201500















Please coneact us for more about Multilayer Bead, Chip Bead, Ferrite Bead, chip inductors etc.

*  If you have more needs, please send us an inquiry, thank you!

Send Message

* clear input
*

Related Products

Model NO. MTDB0402, MTDB0802, MTDB0804, MTDB0810, MTDB1306
Model NO. MTNL322522, MTNL453232
Model NO. MTRC2D09, MTRC2D11, MTRC2D14, MTRC2D18, MTRC3D11, MTRC3D14, MTRC3D16, MTRC3D28
Model NO. MTRW4D18, MTRW4D28, MTRW5D18, MTRW5D28, MTRW6D28, MTRW6D38
Model NO. MTRE8D28, MTRE8D38, MTRE8D43, MTRE8D58
Model NO. MTRR103, MTRR104, MTRR105

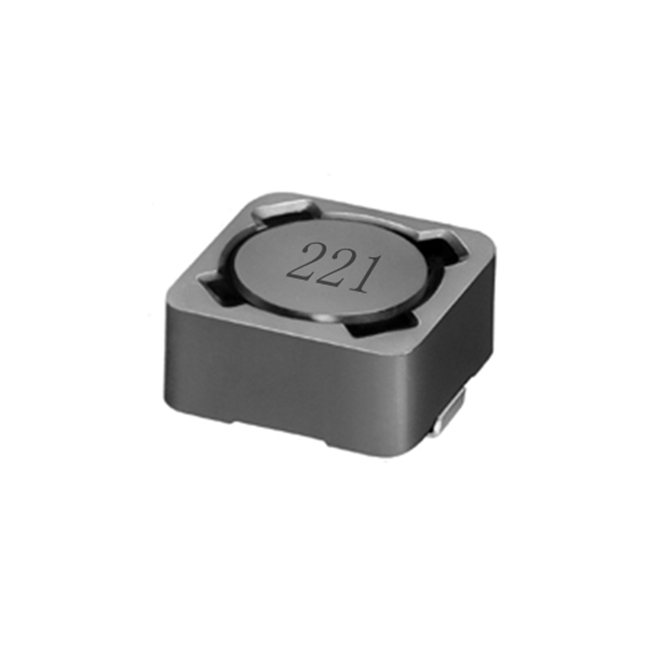

Model NO. MTRH73, MTRH74, MTRH124, MTRH125, MTRH127, MTRH129
