FEATURES:
* Small and Low profile inductor.
* Simple and original magnetic shield.
* Durable structure against dropping impact.
* Simple and original magnetic shield.
* Durable structure against dropping impact.
APPLICATIONS:
* LCD Displays, STB, LCD Monitor/TV, Smart meter, DC/DC converters, Tablet PC and other portable devices.
smd inductors, smd power inductors, unshielded smd power inductors, inductors series,smd inductors
GENERAL SPECIFICATIONS:
* Operating temperature: -40 °C to +125 °C.
* Storage Temperature: -40 °C to +125 °C.
* Electrical specifications at 25 °C.
* Tolerance: K: ±10% , M: ±20% , N: ±25% , Y: ±30%.
* Rated Current: Inductance drops 30% at Isat.
* Temperature Rise: 40 °C at rated Irms.
* Resistance to Soldering Heat: +260 °C.
* Storage Temperature: -40 °C to +125 °C.
* Electrical specifications at 25 °C.
* Tolerance: K: ±10% , M: ±20% , N: ±25% , Y: ±30%.
* Rated Current: Inductance drops 30% at Isat.
* Temperature Rise: 40 °C at rated Irms.
* Resistance to Soldering Heat: +260 °C.
SHAPE AND DIMENSIONS:
Fig 1 Fig 2
Fig 3 Recommended Land Patterns
Unit: mm
| TYPE | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(Ref.) | G(Ref.) | H(Ref.) | Figure |
| MTNR3010 | 3.1±0.3 | 3.1±0.3 | 1.0MAX | 1.0±0.2 | 1.0±0.3 | 1.2 | 1.0 | 2.7 | 2 |
| MTNR3012 | 3.1±0.3 | 3.1±0.3 | 1.2MAX | 1.0±0.2 | 1.0±0.3 | 1.2 | 1.0 | 2.7 | 2 |
| MTNR3015 | 3.1±0.3 | 3.1±0.3 | 1.5MAX | 1.0±0.2 | 1.0±0.3 | 1.2 | 1.0 | 2.7 | 3 |
| MTNR4010 | 4.1±0.3 | 4.1±0.3 | 1.0MAX | 1.4±0.2 | 1.3±0.3 | 1.6 | 1.3 | 3.7 | 2 |
| MTNR4012 | 4.1±0.3 | 4.1±0.3 | 1.2MAX | 1.4±0.2 | 1.3±0.3 | 1.6 | 1.3 | 3.7 | 2 |
| MTNR4018 | 4.1±0.3 | 4.1±0.3 | 1.8MAX | 1.4±0.2 | 1.3±0.3 | 1.6 | 1.3 | 3.7 | 2 |
| MTNR4020 | 4.1±0.3 | 4.1±0.3 | 2.0MAX | 1.4±0.2 | 1.3±0.3 | 1.6 | 1.3 | 3.7 | 2 |
| MTNR4030 | 4.1±0.3 | 4.1±0.3 | 3.0MAX | 1.4±0.2 | 1.3±0.3 | 1.6 | 1.3 | 3.7 | 3 |
ELECTRICAL CHARACTERISTICS:
| MTNR3010 Series Specifications: | |||||
| Part Number | Inductance(μH) | DCR (mΩ.) Max. | Isat(A) | Irms(A) | Test Freq |
| MTNR3010-1R0YC | 1.0 | 90 | 2.1 | 1.8 | 100KHz 1V |
| MTNR3010-1R5YC | 1.5 | 135 | 1.7 | 1.5 | 100KHz 1V |
| MTNR3010-2R2NC | 2.2 | 160 | 1.3 | 1.3 | 100KHz 1V |
| MTNR3010-3R3NC | 3.3 | 220 | 1.2 | 1.0 | 100KHz 1V |
| MTNR3010-4R7NC | 4.7 | 360 | 1.1 | 0.9 | 100KHz 1V |
| MTNR3010-6R8NC | 6.8 | 450 | 0.9 | 0.8 | 100KHz 1V |
| MTNR3010-8R2NC | 8.2 | 490 | 0.7 | 0.7 | 100KHz 1V |
| MTNR3010-100MC | 10 | 590 | 0.6 | 0.62 | 100KHz 1V |
| MTNR3010-150MC | 15 | 1120 | 0.5 | 0.5 | 100KHz 1V |
| MTNR3010-220MC | 22 | 1919 | 0.4 | 0.4 | 100KHz 1V |
| MTNR3012 Series Specifications: | |||||
| Part Number | Inductance(μH) | DCR (mΩ.) Max. | Isat(A) | Irms(A) | Test Freq |
| MTNR3012-1R0YC | 1.0 | 76 | 2.2 | 2.0 | 100KHz 1V |
| MTNR3012-1R5YC | 1.5 | 95 | 1.8 | 1.9 | 100KHz 1V |
| MTNR3012-2R2NC | 2.2 | 142 | 1.5 | 1.6 | 100KHz 1V |
| MTNR3012-3R3NC | 3.3 | 260 | 1.05 | 1.36 | 100KHz 1V |
| MTNR3012-4R7NC | 4.7 | 351 | 0.9 | 0.9 | 100KHz 1V |
| MTNR3012-6R8NC | 6.8 | 392 | 0.8 | 0.8 | 100KHz 1V |
| MTNR3012-100MC | 10 | 585 | 0.7 | 0.75 | 100KHz 1V |
| MTNR3012-220MC | 22 | 1070 | 0.42 | 0.53 | 100KHz 1V |
| MTNR3012-470MC | 47 | 2240 | 0.27 | 0.36 | 100KHz 1V |
| MTNR3015 Series Specifications: | |||||
| Part Number | Inductance(μH) | DCR (mΩ.) Max. | Isat(A) | Irms(A) | Test Freq |
| MTNR3015-1R0YC | 1.0 | 48 | 2.1 | 2.1 | 100KHZ/1V |
| MTNR3015-1R5YC | 1.5 | 65 | 1.8 | 1.82 | 100KHZ/1V |
| MTNR3015-2R2MC | 2.2 | 72 | 1.48 | 1.5 | 100KHZ/1V |
| MTNR3015-4R7MC | 4.7 | 157 | 1.2 | 1.09 | 100KHZ/1V |
| MTNR3015-6R8MC | 6.8 | 216 | 0.87 | 0.88 | 100KHZ/1V |
| MTNR3015-100MC | 10 | 325 | 0.72 | 0.77 | 100KHZ/1V |
| MTNR3015-220MC | 22 | 624 | 0.47 | 0.47 | 100KHZ/1V |
| MTNR3015-330MC | 33 | 1066 | 0.44 | 0.43 | 100KHZ/1V |
| MTNR4010 Series Specifications: | |||||
| Part Number | Inductance(μH) | DCR (mΩ.) Max. | Isat(A) | Irms(A) | Test Freq |
| MTNR4010-1R0YC | 1.0 | 91 | 2.4 | 2.1 | 100KHz 1V |
| MTNR4010-2R2NC | 2.2 | 143 | 1.6 | 1.4 | 100KHz 1V |
| MTNR4010-3R3NC | 3.3 | 190 | 1.4 | 1.3 | 100KHz 1V |
| MTNR4010-4R7NC | 4.7 | 240 | 1.3 | 1.2 | 100KHz 1V |
| MTNR4010-6R8NC | 6.8 | 360 | 1.0 | 1.0 | 100KHz 1V |
| MTNR4010-100MC | 10 | 480 | 0.8 | 0.8 | 100KHz 1V |
| MTNR4010-150MC | 15 | 806 | 0.65 | 0.65 | 100KHz 1V |
| MTNR4010-220MC | 22 | 1300 | 0.45 | 0.45 | 100KHz 1V |
| MTNR4010-470MC | 47 | 2172 | 0.25 | 0.3 | 100KHz 1V |
| MTNR4012 Series Specifications: | |||||
| Part Number | Inductance(μH) | DCR (mΩ.) Max. | Isat(A) | Irms(A) | Test Freq |
| MTNR4012-1R0YC | 1.0 | 88 | 2.6 | 1.65 | 100KHz 1V |
| MTNR4012-2R2NC | 2.2 | 120 | 1.9 | 1.32 | 100KHz 1V |
| MTNR4012-3R3NC | 3.3 | 147 | 1.4 | 1.2 | 100KHz 1V |
| MTNR4012-4R7NC | 4.7 | 190 | 1.3 | 1.1 | 100KHz 1V |
| MTNR4012-6R8NC | 6.8 | 280 | 1.1 | 1.0 | 100KHz 1V |
| MTNR4012-100MC | 10 | 410 | 0.8 | 0.8 | 100KHz 1V |
| MTNR4012-150MC | 15 | 650 | 0.7 | 0.7 | 100KHz 1V |
| MTNR4012-220MC | 22 | 924 | 0.6 | 0.55 | 100KHz 1V |
| MTNR4012-470MC | 47 | 1920 | 0.35 | 0.37 | 100KHz 1V |
| MTNR4018 Series Specifications: | |||||
| Part Number | Inductance(μH) | DCR (mΩ.) Max. | Isat(A) | Irms(A) | Test Freq |
| MTNR4018-1R0YC | 1.0 | 36 | 3.8 | 2.0 | 100KHz 1V |
| MTNR4018-1R5YC | 1.5 | 52 | 3.3 | 1.7 | 100KHz 1V |
| MTNR4018-2R2NC | 2.2 | 72 | 2.7 | 1.65 | 100KHz 1V |
| MTNR4018-3R3NC | 3.3 | 91 | 2.45 | 1.23 | 100KHz 1V |
| MTNR4018-4R7NC | 4.7 | 117 | 1.7 | 1.2 | 100KHz 1V |
| MTNR4018-6R8NC | 6.8 | 143 | 1.45 | 1.06 | 100KHz 1V |
| MTNR4018-100MC | 10 | 234 | 1.3 | 0.84 | 100KHz 1V |
| MTNR4018-150MC | 15 | 351 | 0.96 | 0.65 | 100KHz 1V |
| MTNR4018-220MC | 22 | 468 | 0.8 | 0.59 | 100KHz 1V |
| MTNR4018-330MC | 33 | 689 | 0.65 | 0.49 | 100KHz 1V |
| MTNR4018-470MC | 47 | 845 | 0.57 | 0.42 | 100KHz 1V |
| MTNR4018-101MC | 100 | 2275 | 0.4 | 0.25 | 100KHz 1V |
| MTNR4018-221MC | 220 | 5200 | 0.27 | 0.17 | 100KHz 1V |
| MTNR4020 Series Specifications: | |||||
| Part Number | Inductance(μH) | DCR (mΩ.) Max. | Isat(A) | Irms(A) | Test Freq |
| MTNR4020-1R0YC | 1.0 | 39 | 4.85 | 2.15 | 100KHz 1V |
| MTNR4020-1R5YC | 1.5 | 55 | 4.45 | 1.98 | 100KHz 1V |
| MTNR4020-2R2NC | 2.2 | 72 | 3.4 | 1.85 | 100KHz 1V |
| MTNR4020-3R3NC | 3.3 | 91 | 3.2 | 1.4 | 100KHz 1V |
| MTNR4020-4R7NC | 4.7 | 114 | 2.35 | 1.34 | 100KHz 1V |
| MTNR4020-6R8NC | 6.8 | 163 | 2.2 | 1.04 | 100KHz 1V |
| MTNR4020-100MC | 10 | 215 | 1.6 | 1.1 | 100KHz 1V |
| MTNR4020-150MC | 15 | 348 | 1.35 | 0.77 | 100KHz 1V |
| MTNR4020-220MC | 22 | 455 | 1.05 | 0.62 | 100KHz 1V |
| MTNR4020-330MC | 33 | 745 | 0.85 | 0.49 | 100KHz 1V |
| MTNR4020-470MC | 47 | 923 | 0.74 | 0.44 | 100KHz 1V |
| MTNR4030 Series Specifications: | |||||
| Part Number | Inductance(μH) | DCR (mΩ.) Max. | Isat(A) | Irms(A) | Test Freq |
| MTNR4030-1R0YC | 1 | 33 | 6.0 | 4.0 | 100KHZ/1V |
| MTNR4030-1R2YC | 1.2 | 33 | 5.8 | 2.95 | 100KHZ/1V |
| MTNR4030-1R5YC | 1.5 | 39 | 4.84 | 2.92 | 100KHZ/1V |
| MTNR4030-2R2MC | 2.2 | 48 | 4.9 | 2.57 | 100KHZ/1V |
| MTNR4030-3R3MC | 3.3 | 65 | 3.3 | 2.4 | 100KHZ/1V |
| MTNR4030-4R7MC | 4.7 | 78 | 2.9 | 2.0 | 100KHZ/1V |
| MTNR4030-6R8MC | 6.8 | 117 | 2.4 | 1.6 | 100KHZ/1V |
| MTNR4030-100MC | 10 | 156 | 1.9 | 1.5 | 100KHZ/1V |
| MTNR4030-120MC | 12 | 176 | 1.7 | 1.3 | 100KHZ/1V |
| MTNR4030-150MC | 15 | 280 | 1.65 | 1.11 | 100KHZ/1V |
| MTNR4030-180MC | 18 | 293 | 1.4 | 1.1 | 100KHZ/1V |
| MTNR4030-220MC | 22 | 363 | 1.3 | 1.0 | 100KHZ/1V |
| MTNR4030-330MC | 33 | 480 | 1.1 | 0.84 | 100KHZ/1V |
| MTNR4030-470MC | 47 | 845 | 0.95 | 0.72 | 100KHZ/1V |
| MTNR4030-101MC | 100 | 1495 | 0.6 | 0.45 | 100KHZ/1V |
| MTNR4030-121MC | 120 | 1755 | 0.55 | 0.42 | 100KHZ/1V |
Please coneact us for more about smd inductors, smd power inductors, unshielded smd power inductors, inductors series,smd inductors etc.
* If you have more needs, please send us an inquiry, thank you!
Send Message
Related Products
Model NO. MTDB0402, MTDB0802, MTDB0804, MTDB0810, MTDB1306
Model NO. MTNL322522, MTNL453232
Model NO. MTRC2D09, MTRC2D11, MTRC2D14, MTRC2D18, MTRC3D11, MTRC3D14, MTRC3D16, MTRC3D28
Model NO. MTRW4D18, MTRW4D28, MTRW5D18, MTRW5D28, MTRW6D28, MTRW6D38
Model NO. MTRE8D28, MTRE8D38, MTRE8D43, MTRE8D58

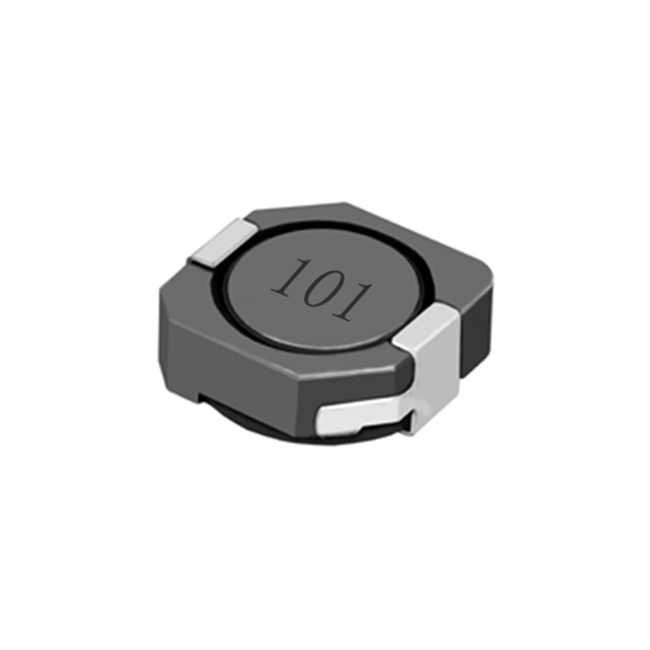

Model NO. MTRR103, MTRR104, MTRR105
